Description

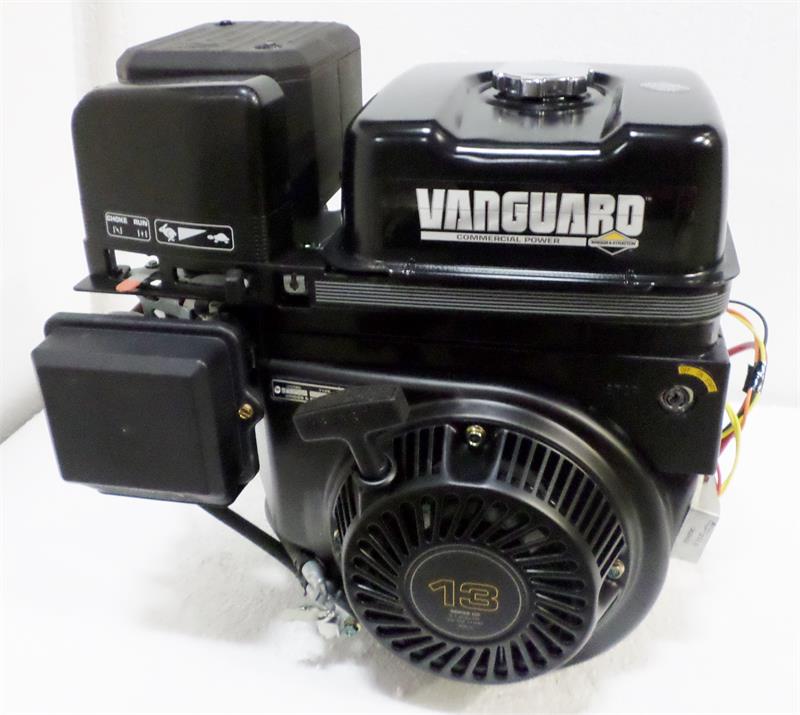

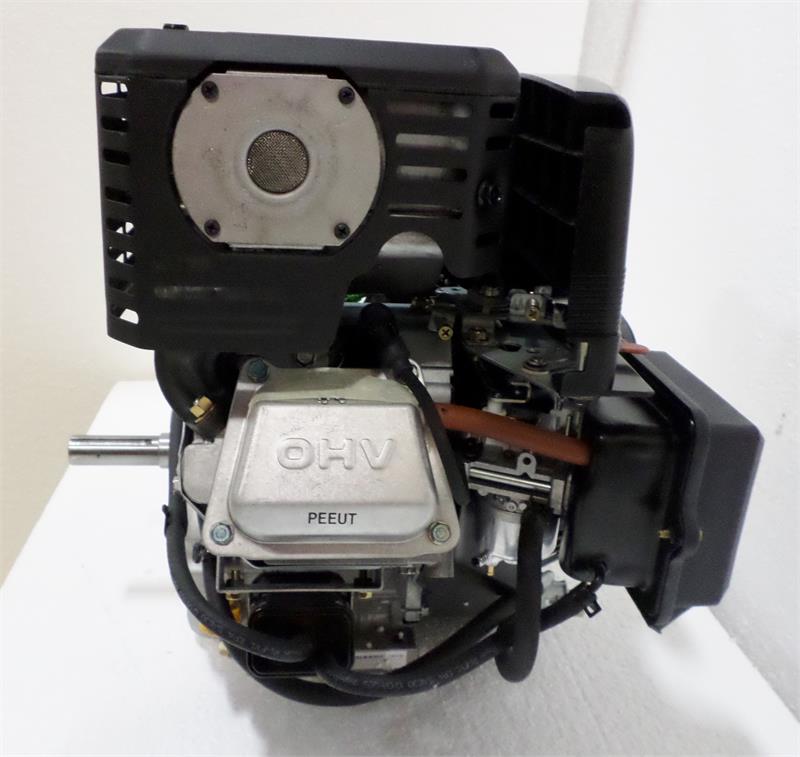

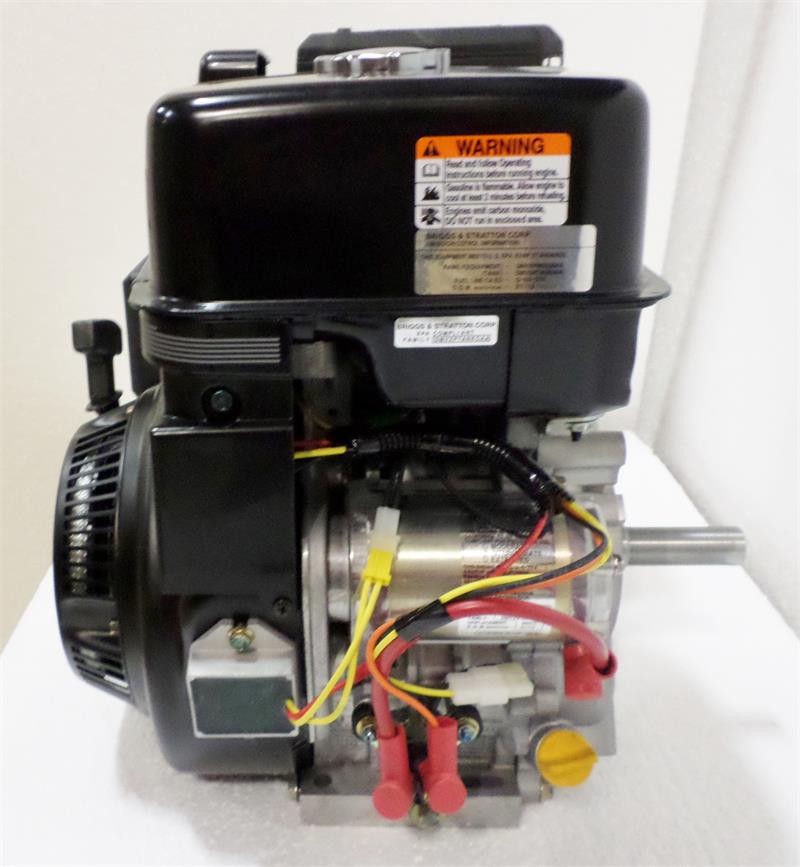

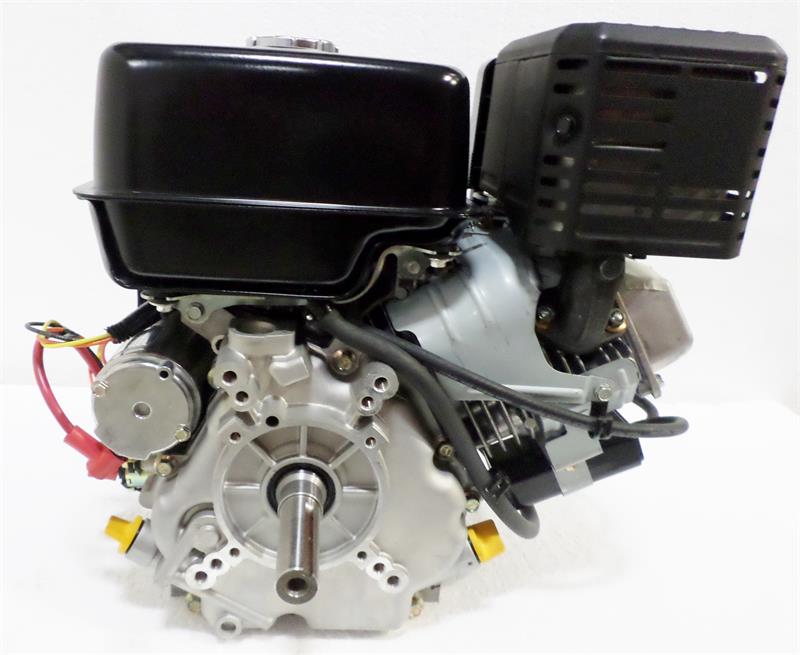

Briggs and Stratton 13hp Vanguard Engine ES 1" x 3-21/32" #245437-0002
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 245437-0002-F1 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM |
| Gross Horsepower* | 13.00 |
| Oil Capacity | 50.8 fl. oz. |
| Air Cleaner | AIR CLEANER, SMALL SQUARE DUAL ELEMENT W/PURGE POR |
| Air Cleaner Cover | AIR CLNR COV COL 290 - SATIN BLACK |
| Chg System | ALTERNATOR, 16 AMP |
| Bearings | BEARINGS, FLANGE MOUNT BALL W/OIL SEAL & PILOT |
| Blower Housing | COVERS, AIR INLET-I |
| Bore Type | Sleevebore |
| Bore Size | 3.5 |
| Stroke | 2.48 |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 05, MODEL 23/24 |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, IN CRANKCASE |
| Oil Drain | OIL FILL, DUAL |
| Misc | SHUT OFF VALVE, ON AIR CLEANER SIDE |
| Flywheel | FLYWHEEL, HEAVY EQUIP FOR ELEC START |
| Fuel System | FUEL SYSTEM, STEEL TANK W/O FUEL GAUGE |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, SUPER LO-TONE INSTALLED |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, REWIND POSITION - 10:30 O'CLOCK |
