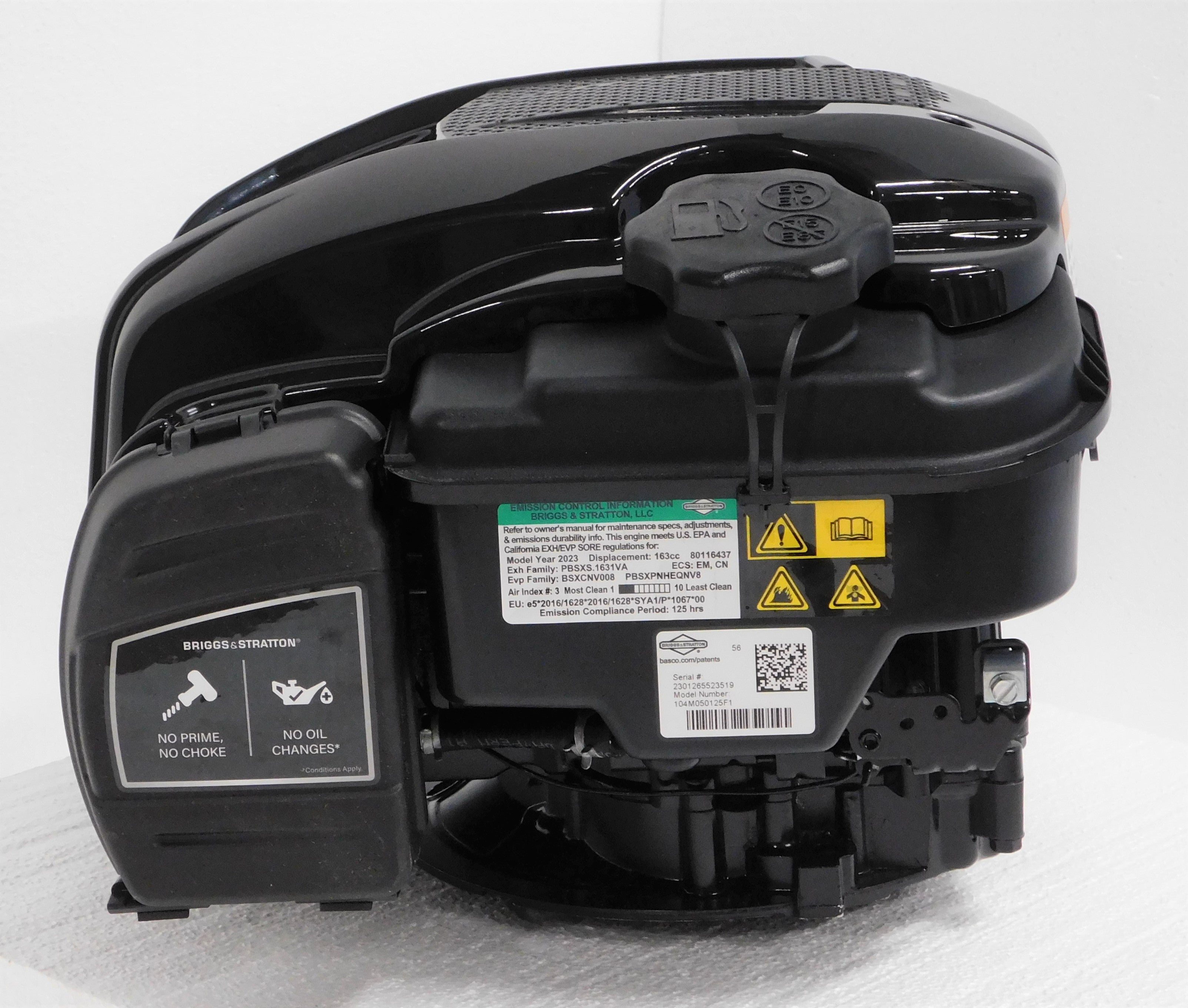

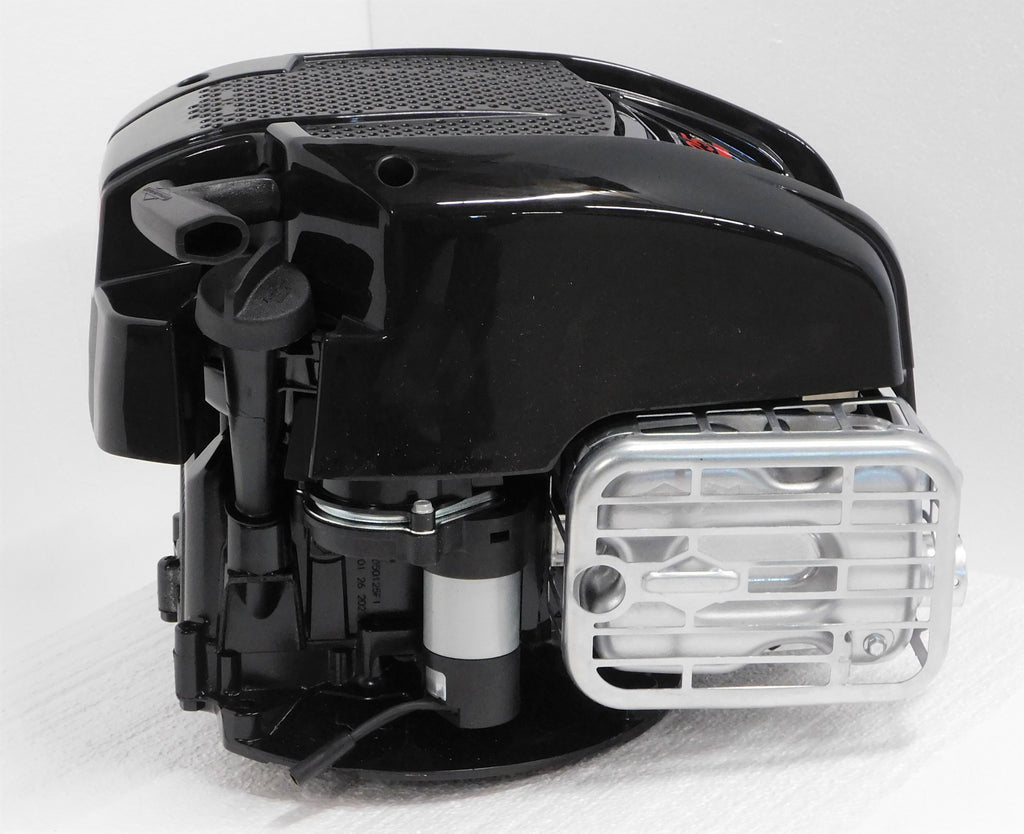

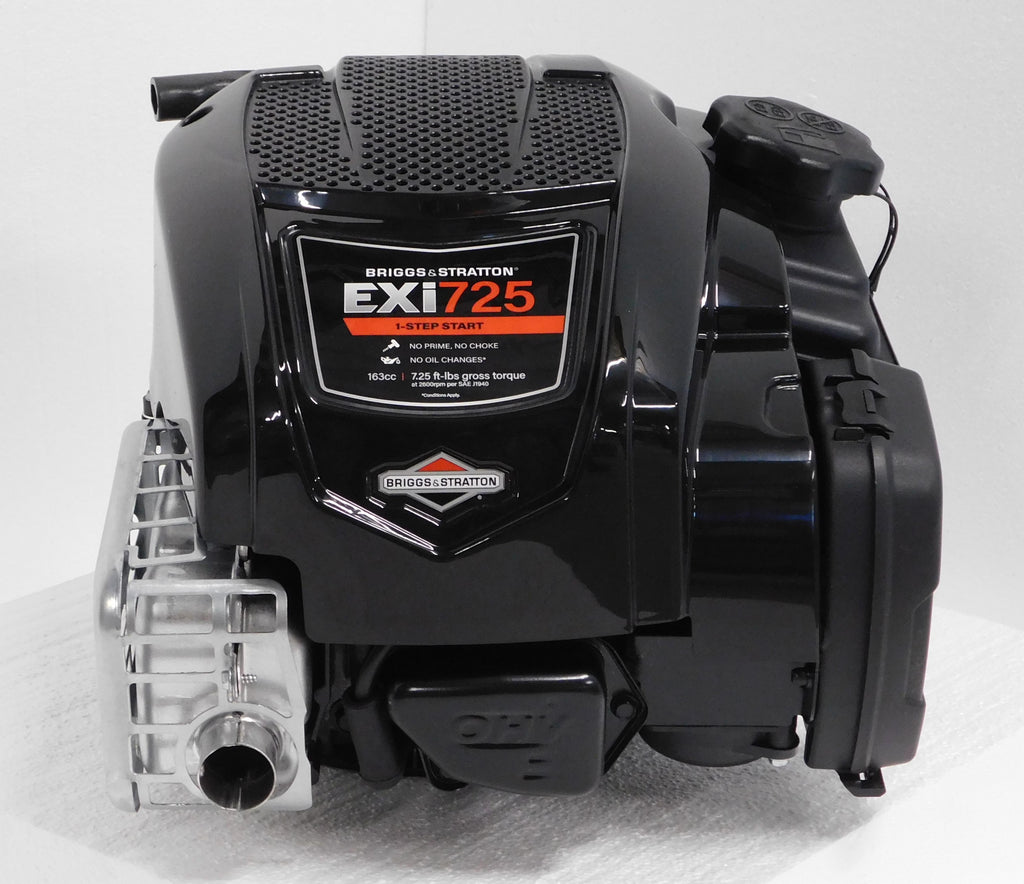

Description
725 EXi Series
7.25 GROSS TORQUE
Briggs 7.25 TP 163cc

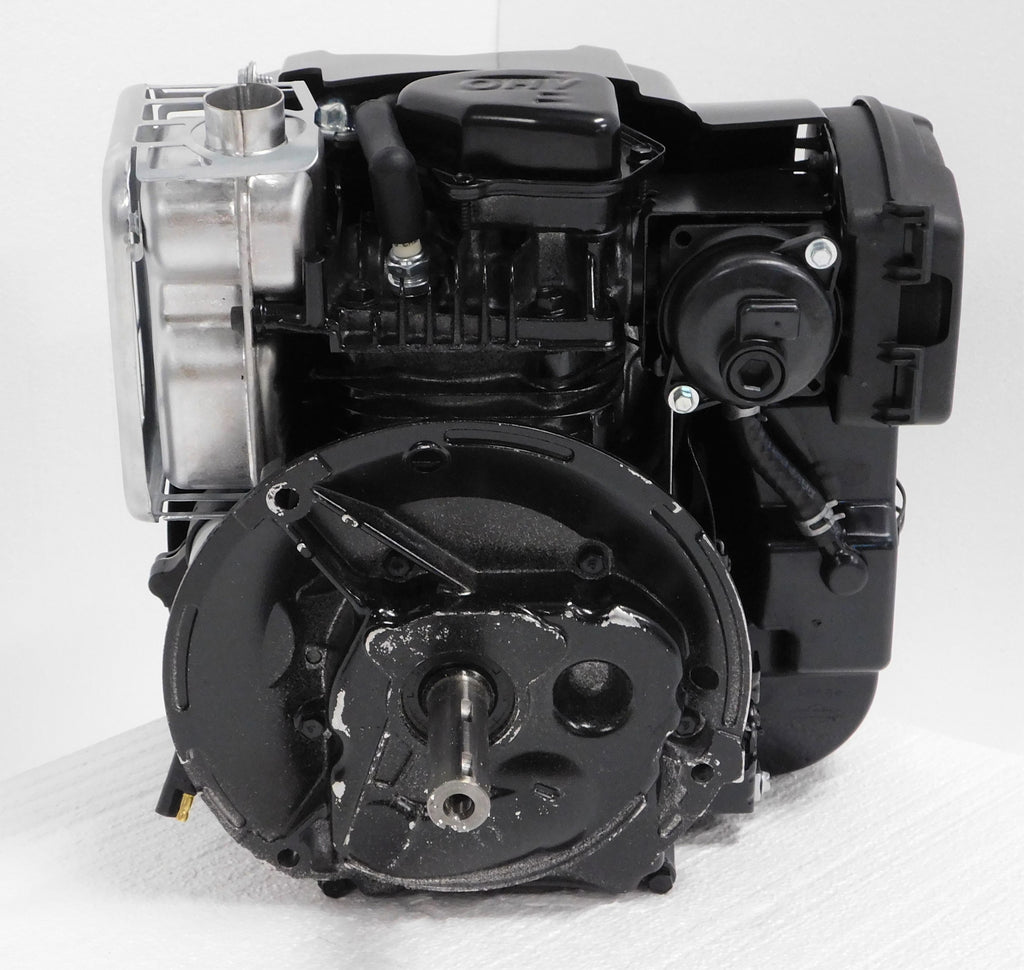

7/8" x 3-5/32" shaft, tapped 3/8"-24 with 3/16" keyway.
Non-compliance engine, heavy flywheel.
Electric Start w/ recoil auxiliary
Fixed Speed, Ready Start
Universal replacement engine for pressure washers, log splitters, and other types
of engines that do not need a flywheel brake, or that have a mower blade attached.
3500 rpm top speed setting.
Model 104M05-0125
28 lbs
104M05-0125-F1
Engine Specifications
| SKU | 104M05-0125-F1 |
| Model/Type/Trim | 104M05-0125-F1 |
| Air Cleaner | Dual Element |
| Carburetor | ReadyStart - Simple System |
| Casing Clamp | Installed for plastic conduit |
| Controls | Remote Only Variable Speed |
| Crankshaft | Straight 7/8" Dia - 3.156" PTO |
| Crankshaft Details | 3/16" Keyway, 3/8-24 UNF-2B |
| Emissions Certification | EVAP/EXH/EU |
| Engine Base | Standard (Non Flange Mount) |
| Engine Package | High Debris |
| Engine Sold In | United States & Canada |
| Engine Speed | 3500 +/- 0100 RPM - No Load |
| Flywheel | Heavy - Cast Iron |
| Fuel Cap | Black 1/4 Turn |
| Fuel Shutoff | Without |
| Fuel Tank | EVAP - 1.0L |
| Label Power | 725 EXi Series, 7.25 TQ |
| Muffler Guard | Stamped |
| Oil Dipstick | Extended - Black Cap |
| Oil Drain | Without, Check & Add |
| Rewind Position | 5:30 |
Technical Specifications
| Model Series | 104M |
| Power Lbs/Ft of Torque | 7.25 |
| Engine Series | 725 |
| Displacement | 163 |
| Oil Capacity | 15 oz (.44 l) |
| Valve Configuration | OHV |
| Flywheel Torque | 60 lb/ft (81.3 Nm) |
| Governor Arm Torque | 30 lb/in (3.4 Nm) |
| Carb Mount | 60 lb-in (6.8 Nm) |
| Plug Gap | 0.03 in (0.76 mm) |
| Intake Valve | .004-.008 in (.10-.20 mm) |
| Exhaust Valve | .004-.008 in (.10-.20 mm) |
| Idle Speed | 1750 |
| Air Gap | .006-.014 in (.15-.36 mm) |
| Flywheel Puller Part | 19619 |
| Flywheel Holder Part | 19433 |
| Connecting Rod Torque | 97.5 lb/in (11.0 Nm) |
| Sump Torque | 105 lb/in (11.9 Nm) |
| Head Torque | 130 lb/in (14.7 Nm) |
| Top No Load (rpms) | 3500 +/- 0100 RPM - No Load |
Crankshaft Specifications
| Service Part Number | 595024 |
| PTO Type | Straight |
| PTO Woodruff Key | 2x #505 |
| PTO Keyway #1 (in) | 0.187 x 1.520 x 0.109 |
| PTO Keyway #1 (mm) | 4.755 x 38.61 x 2.756 |
| PTO Keyway #2 (in) | - |
| PTO Keyway #2 (mm) | - |
| PTO Thread Size | 0.375-24 UNF |
| PTO Diameter (in) | 0.874 |
| PTO Diameter (mm) | 22.187 |
| PTO Length (in) | 3.156 |
| PTO Length (mm) | 80.162 |
