| Engine Fuel |
Gasoline |
| Configuration |
Vertical |
| Cylinders |
One |
| SKU |
14D937-0101-G1 |
| Top No Load Speed |
SET ENG NO-LOAD SPEED TO 3500 +/-100 RPM |
| Oil Capacity |
20 fl. oz. |
| Air Cleaner |
AIR CLEANER, PAPER ELEMENT OVAL W/PURGE PORT |
| Chg System |
ALTERNATOR, DC (.5 AMP) |
| Bearings |
BEARINGS, PLAIN MAG |
| Blower Housing |
COVER, LD, 290 ST BLACK |
| Bore Type |
Koolbore |
| Bore Size |
2.9134 |
| Stroke |
2.04 |
| Casing Clamps |
CASING CLAMP & SCREW INSTALLED |
| Controls Groups |
CONTROL GROUP 65, QUANTUMS/11-12 |
| Cylinder Head |
CYLINDER, ALUMINUM |
| Deflectors |
DEFLECTORS, WITHOUT |
| Dipsticks |
DIPSTICK, OPPOSITE CARB SIDE |
| Oil Drain |
OIL FILL, OPPOSITE CARB SIDE |
| Misc |
FUEL HOSE, LOW PERM 6.5 IN W/40 MIC FILTER |
| Flywheel |
FLYWHEEL, HVY, CAST IRON, ELECTRIC START |
| Fuel System |
FUEL SYSTEM, WITHOUT FUEL TANK |
| Governor |
MECHANICAL GOVERNOR |
| Exhaust |

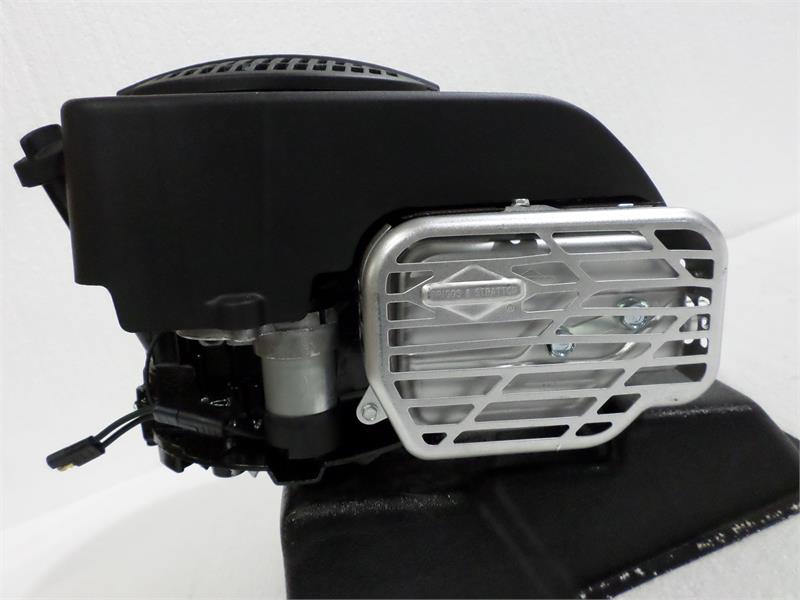

MUFFLER, PERFORMANCE W/TUBE OUTLET INSTALLED |
| Spark Plug |
WIRING HARNESS OMITTED |
| Starting System |
STARTER, WITHOUT REWIND |
