Description

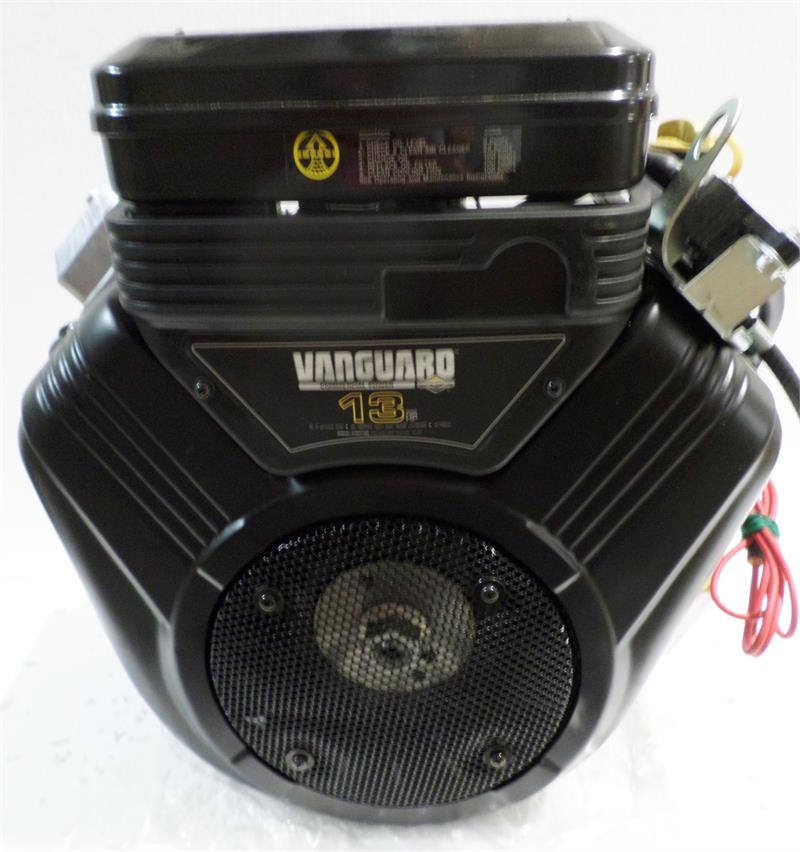

13hp Briggs Vanguard

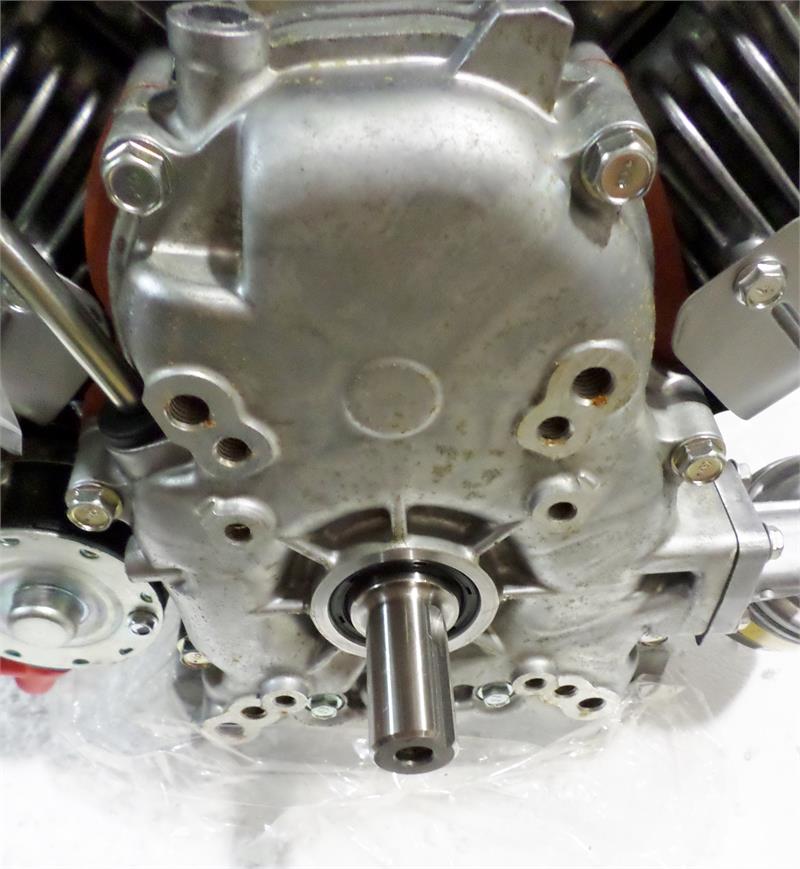

1" x 2" shaft, tapped 3/8" with 1/4" keyway.
Cast iron sleeves, fuel pump, full pressure lube w/ oil filter,
electric start w/alternator
Model 295347-0171.
87 lbs
Model Number295347-0171-G1
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | Two |
| SKU | 295347-0171-G1 |
| Gross Horsepower* | 13.00 |
| Air Cleaner | AIR CLEANER, DUAL ELEMENT |
| Air Cleaner Cover | AIR CLNR COV COL 290 - SATIN B |
| Bearings | FM, 7.75", 6.50", & 5" DIA BOL |
| Blower Housing | NON-DUCTED AIR FLOW |
| Bore Type | Sleevebo |
| Bore Size | 2.680 |
| Stroke | 2.600 |
| Controls Groups | SUPPRESS AFTERFIRE ENGI |
| Cylinder Head | CYLINDER, TWIN W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, IN CRANKCAS |
| Oil Drain | OIL FILL IN VALVE C |
| Flywheel | FLYWHEEL, HEAVY EQUIP FOR ELEC START |
| Fuel System | FUEL SYSTEM, WITHOUT FUE |
| Exhaust | MUFFLER, WITHOUT |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, 12 VOLT STEEL DRIVE |
