Description

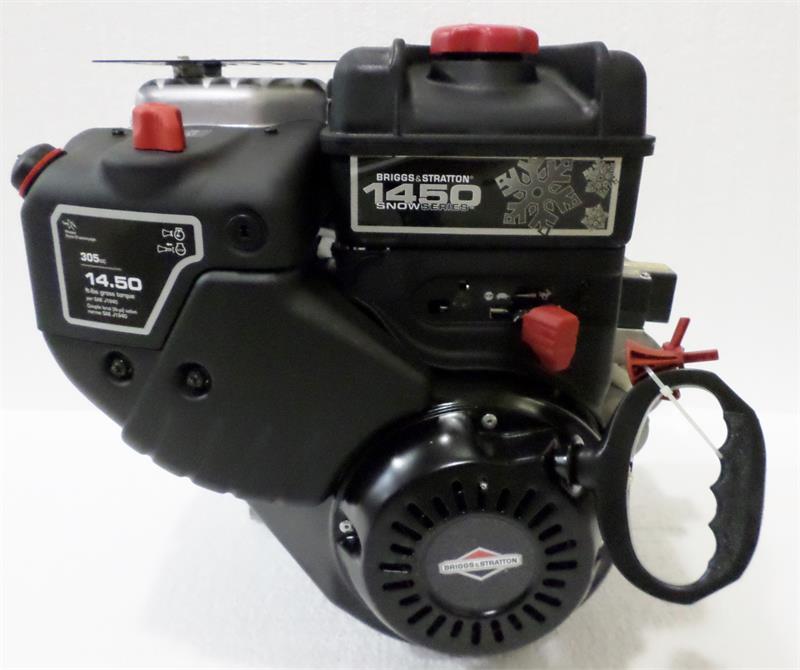

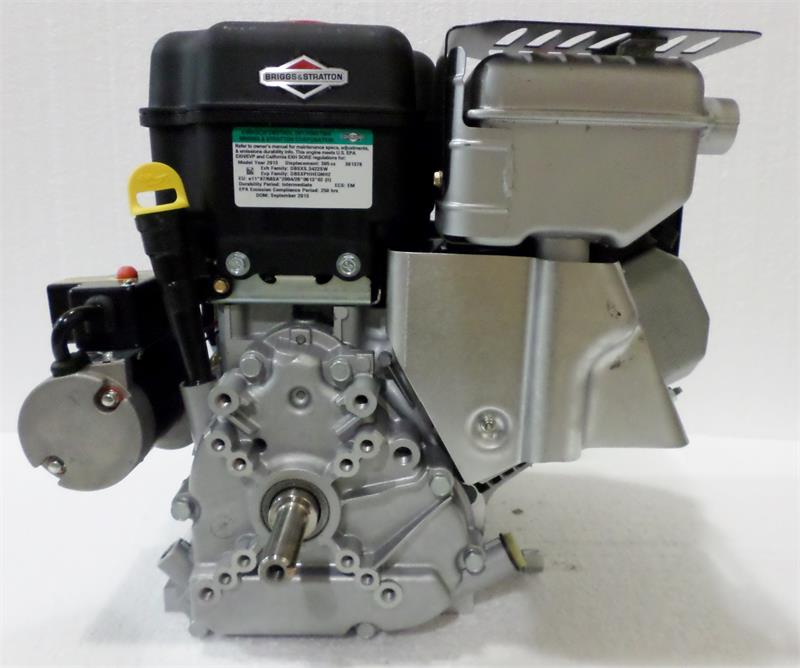

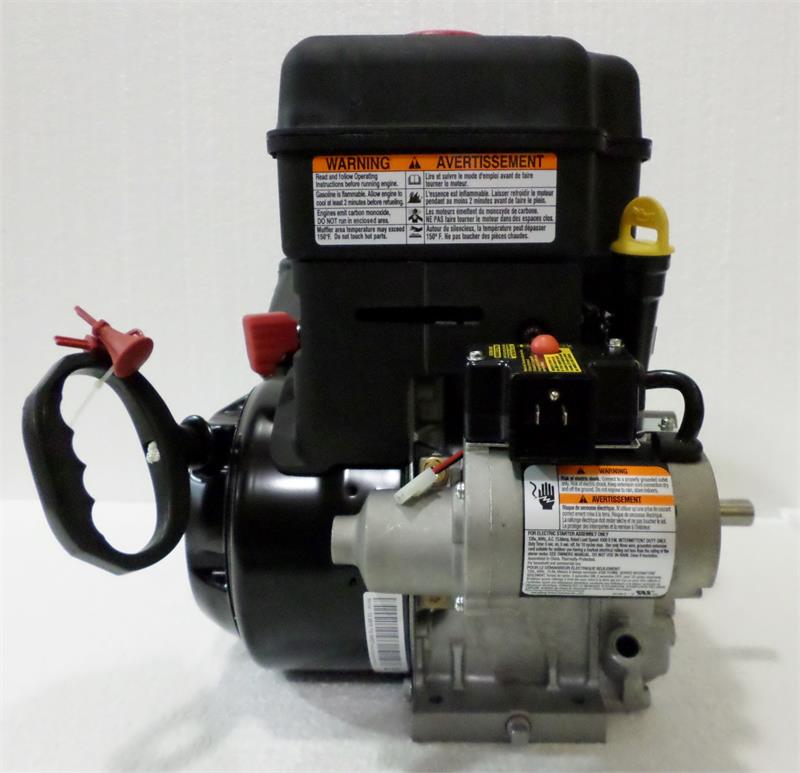

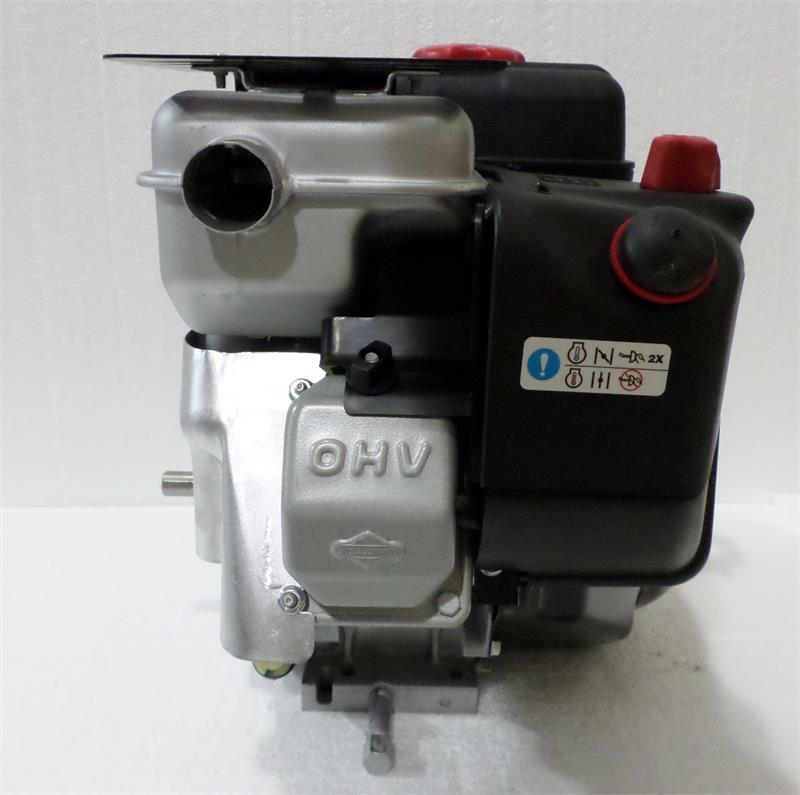

Briggs Snow Engine
14.5 Torque Power, 305cc
3/4" X 2-33/64" shaft, tapped 3/8" with 3/16" keyway.
Electric start with recoil backup
2 year consumer/ 90 day commercial warranty.
Model 20M307-0001
73 lbs
Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 20M307-0001-F1 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM |
| Oil Capacity | 28 fl. oz. |
| Chg System | ALTERNATOR, 60W AC ONLY WITH GROUND WIRE |
| Bearings | BEARINGS, PLAIN MAG |
| Blower Housing | PLATE, TRIM - COLOR 290 - SATIN BLACK |
| Bore Type | Koolbore |
| Bore Size | 3.12 |
| Stroke | 2.44 |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 04, SNOW |
| Cylinder Head | CYLINDER, ALUMINUM |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | MID OIL FILL TUBE & DIPSTICK |
| Oil Drain | PLUG, TAMPER PROOF, HEAD SIDE |
| Misc | FUEL SHUT OFF VALVE OMITTED |
| Flywheel | FLYWHEEL, HEAVY EQUIP FOR ELEC START |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, SUPER LO-TONE INST W/GRD BRKT |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, REWIND WITH MIT GRIP HANDLE |
