Kawasaki Vertical 19 HP 603cc Engine ES 1-1/8" x 4-5/16" #FS600V-FS04

KawasakiSKU: FS600V-FS04

Price:
Sale price$1,599.00
Stock:
In stock (6 units), ready to be shipped

Description

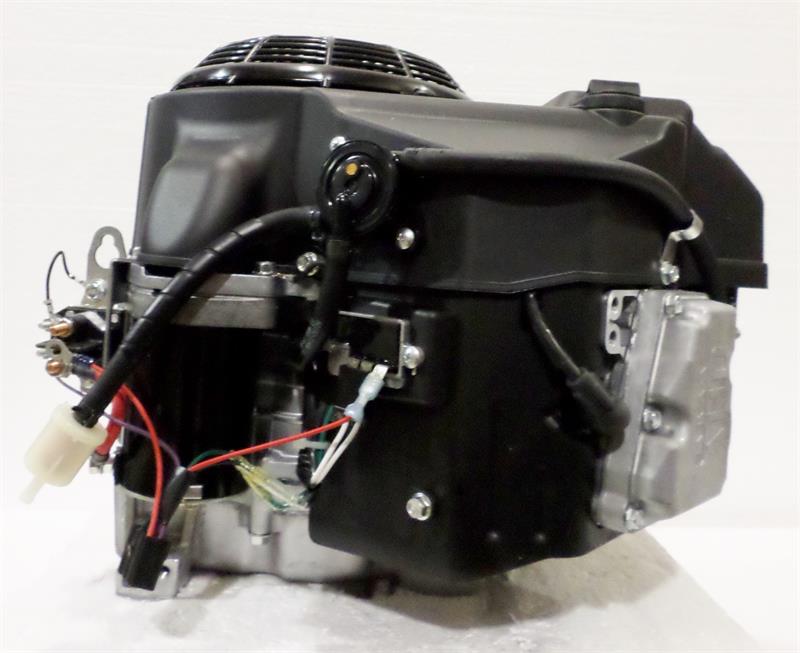

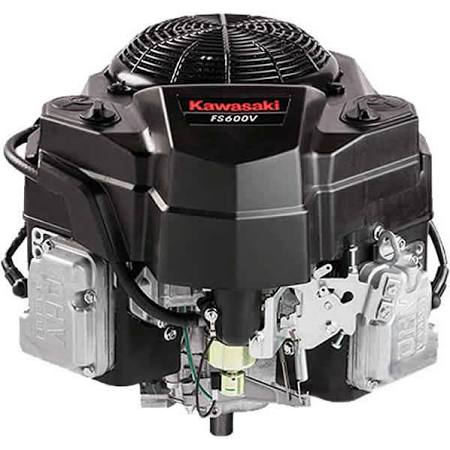

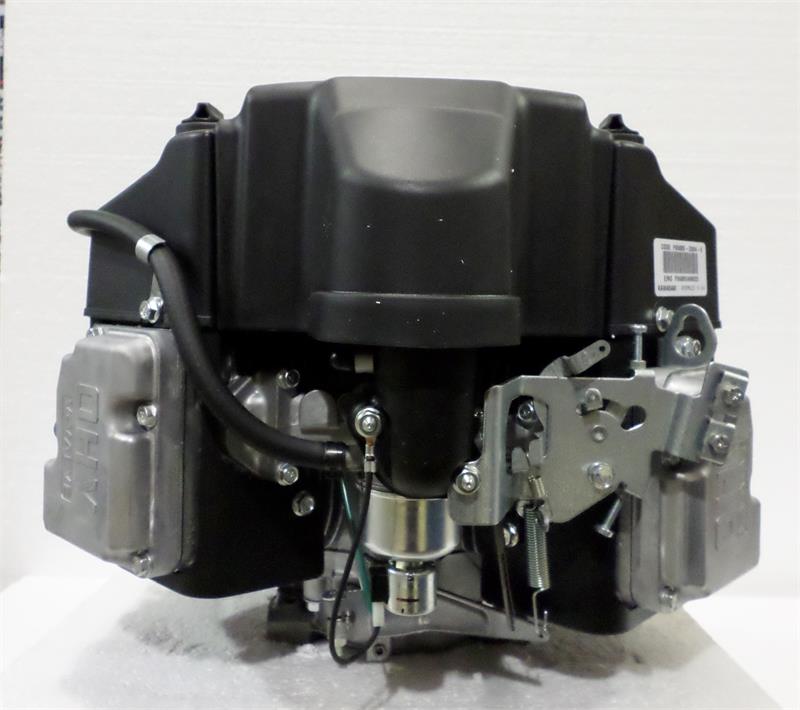

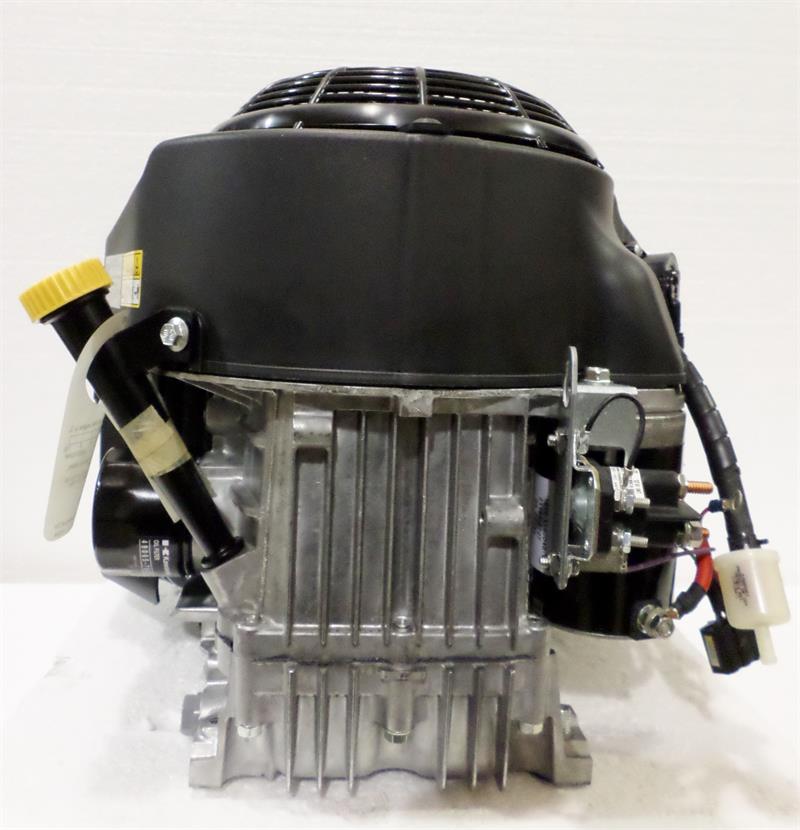

Kawasaki Vertical 19 HP 603cc Engine 1-1/8" x 4-5/16" #FS600V-FS04



Kawasaki FS Series engines are engineered to be high powered but still environmentally friendly. They feature a compact, 90° V-twin design with overhead V-valve, as well as an internally vented carburetor with a fuel shut-off solenoid. There is also a dual element air filter with a plastic blower housing that makes for quieter operation.

Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
19hp Kawasaki OHV
1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway.
Electric start, 15amp alternator.
Less fuel tank
Seperate choke & throttle
Less Muffler
Replacement engine for commercial zero turns and riding mowers.
3 year consumer from Kawasaki.
Model FS600V-FS04
83 lbs.

FEATURES:

  • Overhead V-valve
  • 90° V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter
  • Cast-iron cylinder liners
SPECIFICATIONS
DISPLACEMENT
603cm3 (36.8cu. in.)
NUMBER OF CYLINDERS
2
BORE X STROKE
2.9 x 2.8 in. (73 x 72mm)
COMPRESSION RATIO
8.1:1
OIL CAPACITY
1.8U.S. qt (1.7liters)
MAXIMUM POWER
18.5hp (13.8kW)
at 3,600rpm
MAXIMUM TORQUE
32.5ft lbs (44.1N·m)
at 2,200RPM
DRY WEIGHT
80.9lbs (36.7kg)

Kawasaki Mufflers (not included)
