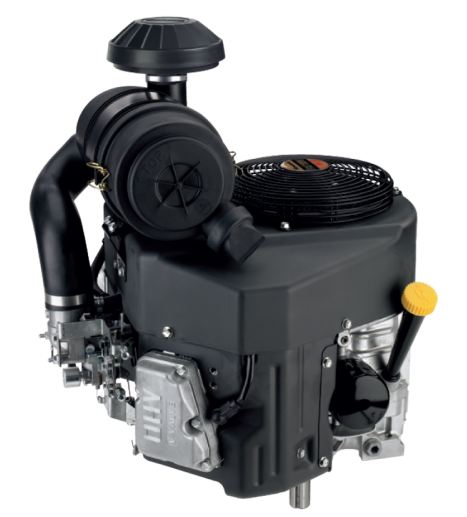

Kawasaki Vertical 22 HP 726cc V-Twin Engine ES 15amp 1-1/8" x 3.94" #FX691V-DS24

KawasakiSKU: FX691V-DS24

Price:
Sale price$2,249.00
Stock:
Only 2 units left

Description



Kawasaki FX Series are compact, 90-degree V-twin engines which feature hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power, and smooth operation. Other features include a twin barrel, internally vented carburetor with fuel shut-off solenoid, large capacity fuel pump, and dual stage canister air filter.

Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
22hp Kawasaki OHV
1-1/8" x 3.94" shaft, tapped 7/16" with 1/4" keyway.
Shift type Electric starter, 15amp alternator.
Less fuel tank
Seperate choke & throttle
Less Muffler
Heavy Duty Dual Stage Canister Air Filter
High Efficiency Oil Cooler
Large Capacity Fuel Pump
Replacement engine for commercial zero turns and riding mowers.
Model FX691V-DS24

FEATURES:

  • Overhead v-valve
  • 90° V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass screen
  • Dual stage canister air filter
  • Cast-iron cylinder liners
  • Metal engine cover
  • Heavy-duty shift-type starter
SPECIFICATIONS
DISPLACEMENT
726cm3 (44.3cu. in.)
NUMBER OF CYLINDERS
2
BORE X STROKE
3.1 x 3.0 in. (78 x 76mm)
COMPRESSION RATIO
8.2:1
OIL CAPACITY
2.2U.S. qt (2.1liters)
MAXIMUM POWER
22.0hp (16.4kW)
at 3,600rpm
MAXIMUM TORQUE
39.4ft lbs (53.4N·m)
at 2,200RPM
DRY WEIGHT
102.7lbs (46.6kg)
