Description

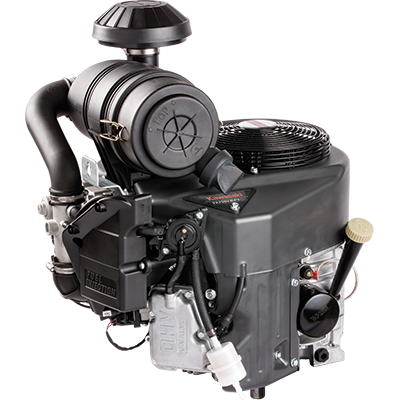

Kawasaki Vertical 23.5 HP 726cc V-Twin EFI Engine ES 30amp 1-1/8" x 4-9/32" #FX730V-AS01
23.5hp Kawasaki OHV
1-1/8" x 4-9/32" shaft, tapped 7/16" with 1/4" keyway.
1-1/8" x 4-9/32" shaft, tapped 7/16" with 1/4" keyway.
Electric start, 30amp alternator.
Less fuel tank
DFI/EFI by Wire
DFI/EFI by Wire
Less Muffler
Heavy Duty Dual Stage Canister Air Filter
Heavy Duty Dual Stage Canister Air Filter
High Efficiency Oil Cooler
Large Capacity Fuel Pump
Replacement engine for commercial zero turns and riding mowers.
Large Capacity Fuel Pump
Replacement engine for commercial zero turns and riding mowers.
Model FX730V-AS01.
| Specifications | |
|---|---|
| Displacement | 726 cc (44.3 cu. in.)
|
| Number of Cylinders | 2 |
| Bore x Stroke | 3.1 x 3.0 in. (78 x 76mm) |
| Compression Ratio | 8.2:1 |
| Oil capacity w/filter | 2.2 U.S. qt ( 2.1 liters)
|
| Maximum Power | 23.5 hp (17.5 kW)
at 3,600 RPM
|
| Maximum Torque | 39.9 ft lbs (54.1 N·m)
at 2,400 RPM
|
| Dry Weight | 101.4 lbs (46.0 kgs)
|
