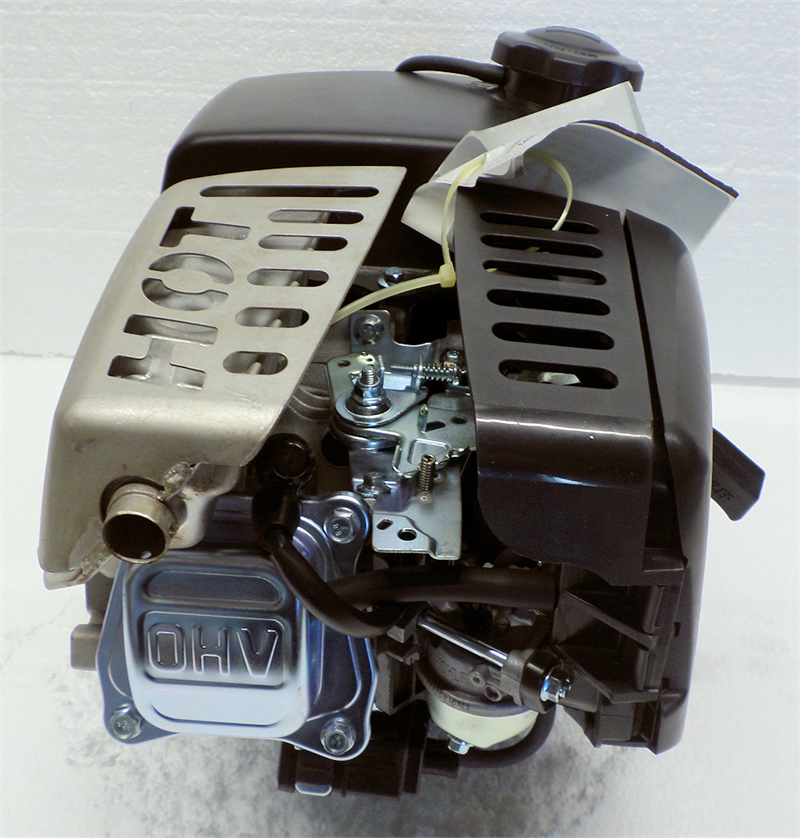

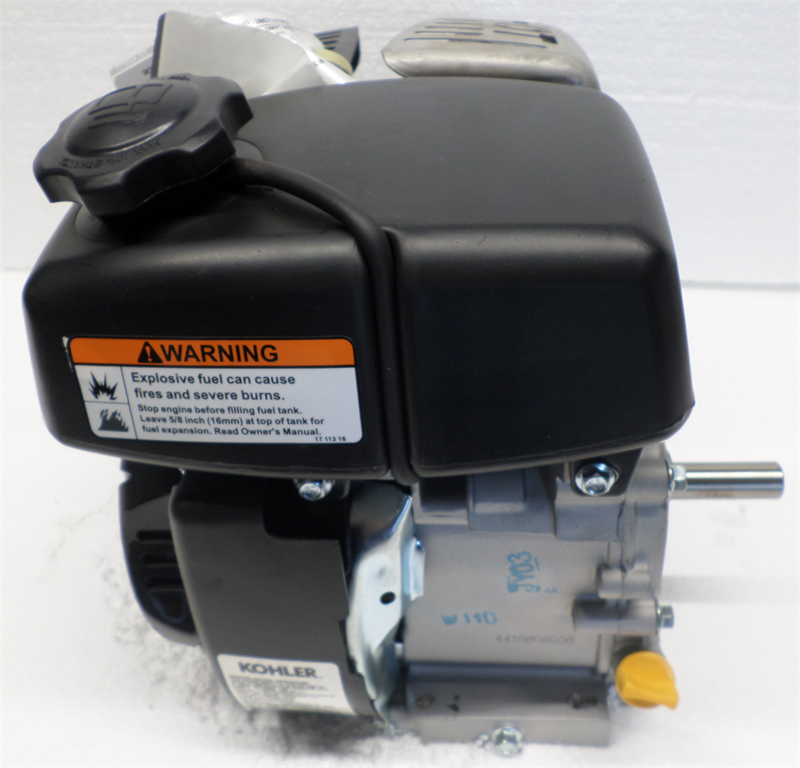

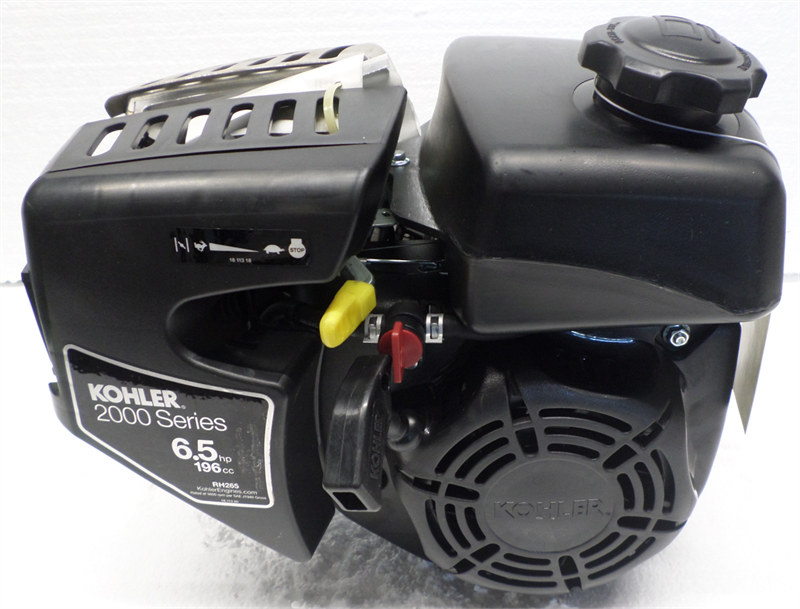

Kohler 2000 Series 6.5 HP 196cc 3/4" x 2.48" Recoil Start #RH265-3103

KohlerSKU: RH265-3103

Price:
Sale price$339.00
Stock:
In stock (12 units), ready to be shipped

Description

6.5hp 2000 Series Kohler Engine

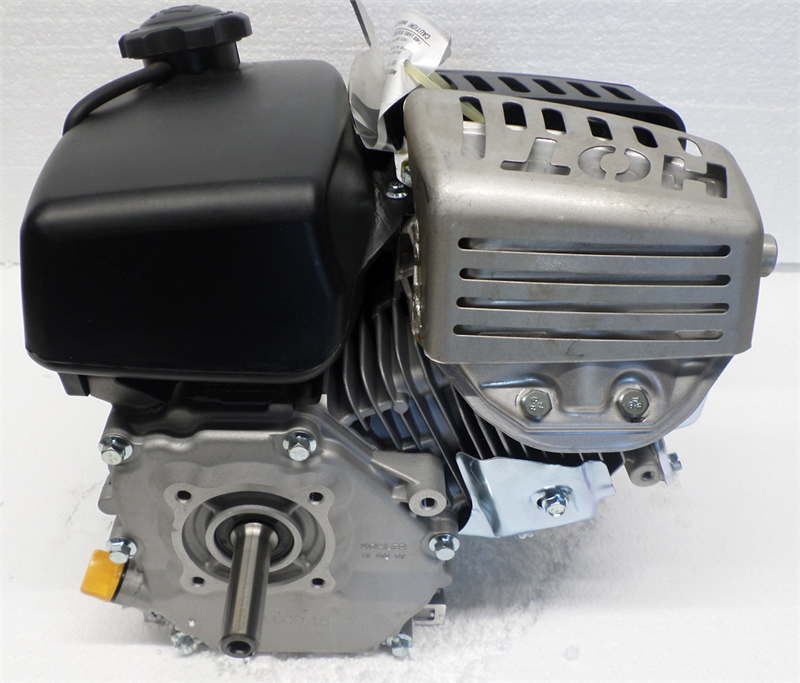

3/4" x 2.48" Straight 3/16" Keyed Shaft, Tapped 5/16"-24
OHV, Recoil Start
Splash Lubrication
Model RH265-3103
29 lbs

ModelRH265
HP (kW) 16.5(4.8)
Displacement (cc)12 (196)
Bore in (mm)2.7 (68)
Stroke in (mm)2.1 (54)
Gross Torque ft lbs (Nm) 110.7 (14.5)
Compression Ratio8.5:1
Dry Weight lbs (kg)28.8 (16)
Oil Capacity US qts (L)0.63 (0.6)
LubricationSplash
Dimensions LxWxH (in)*12.2 x 12.8 x 12.8
Backpressure Limit 225
Certified Power HP (kW) 36.3 (4.7)
Certified RPM3600
Engine TypeConsumer

*Length is PTO to recoil cover. Width is fuel tank to muffler. Height is from mounting surface to top of muffler.



1 Power (hp) and Torque (ft lbs) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.


2 Inches of H20 @ 3600 RPM WOT


3 J1995 power and torque certified by 3rd Party Witness
