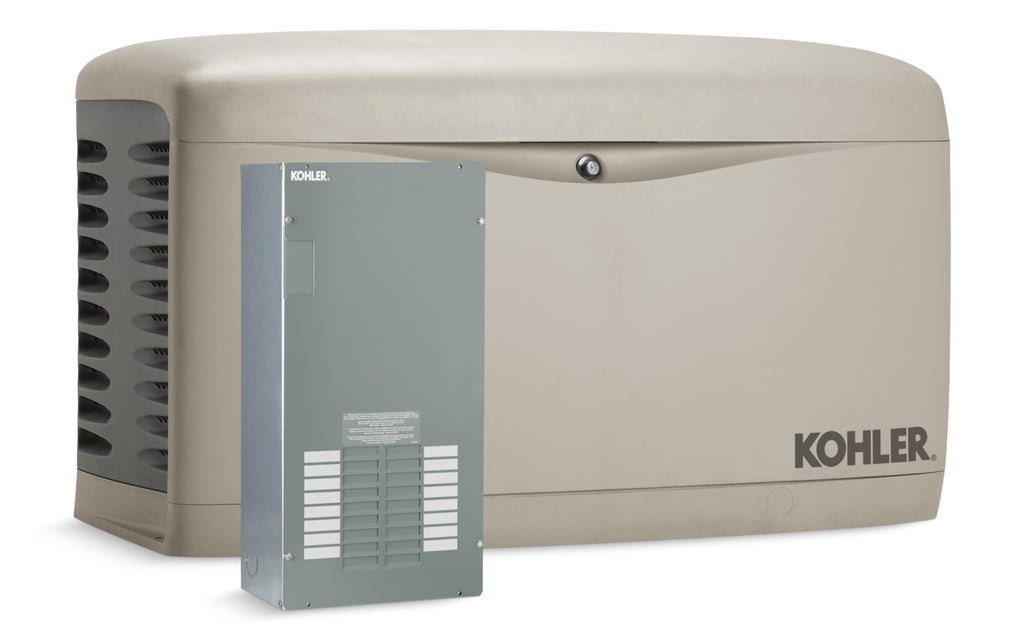

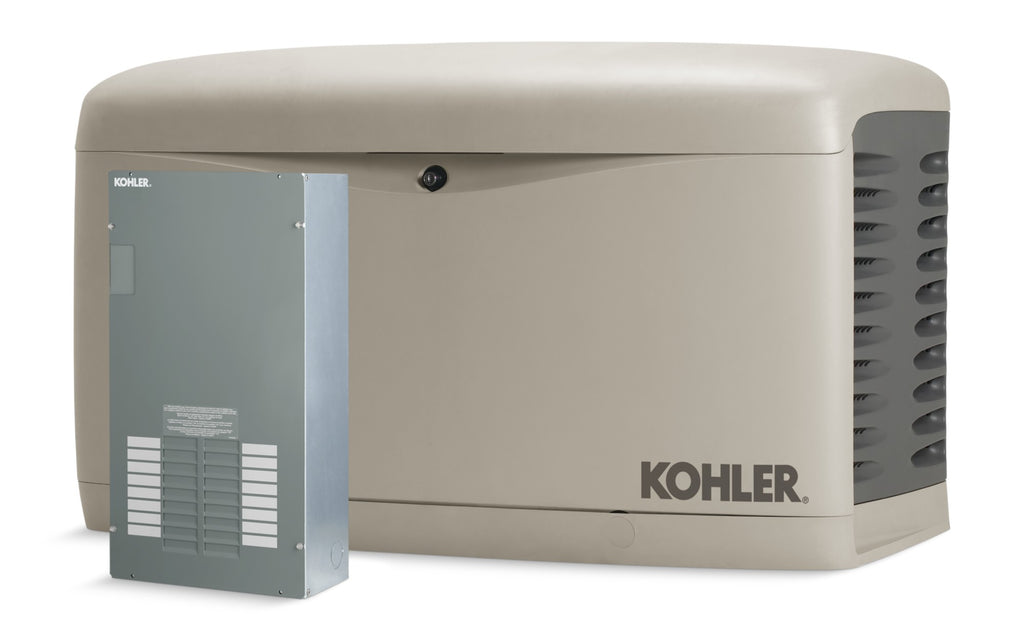

Kohler 20RESCL-200SELS Air-Cooled Standby Generator with 200 Amp Transfer Switch Single Phase, 20,000-Watt

Save 11%
KohlerSKU: 20RESCL-200SELS

Price:
Sale price$5,499.00 Regular price$6,145.00
Stock:
In stock (19 units), ready to be shipped

Description



Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.*

  • Reliable.

    Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.

  • Powerful.

    In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.*

  • Premium warranty.

    We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.

  • Award winner.

    KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.

THE POWER YOU NEED

  • PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
  • Extraordinary peak motor-starting capacity: 20RESCL at 41kVA at 240V
  • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics

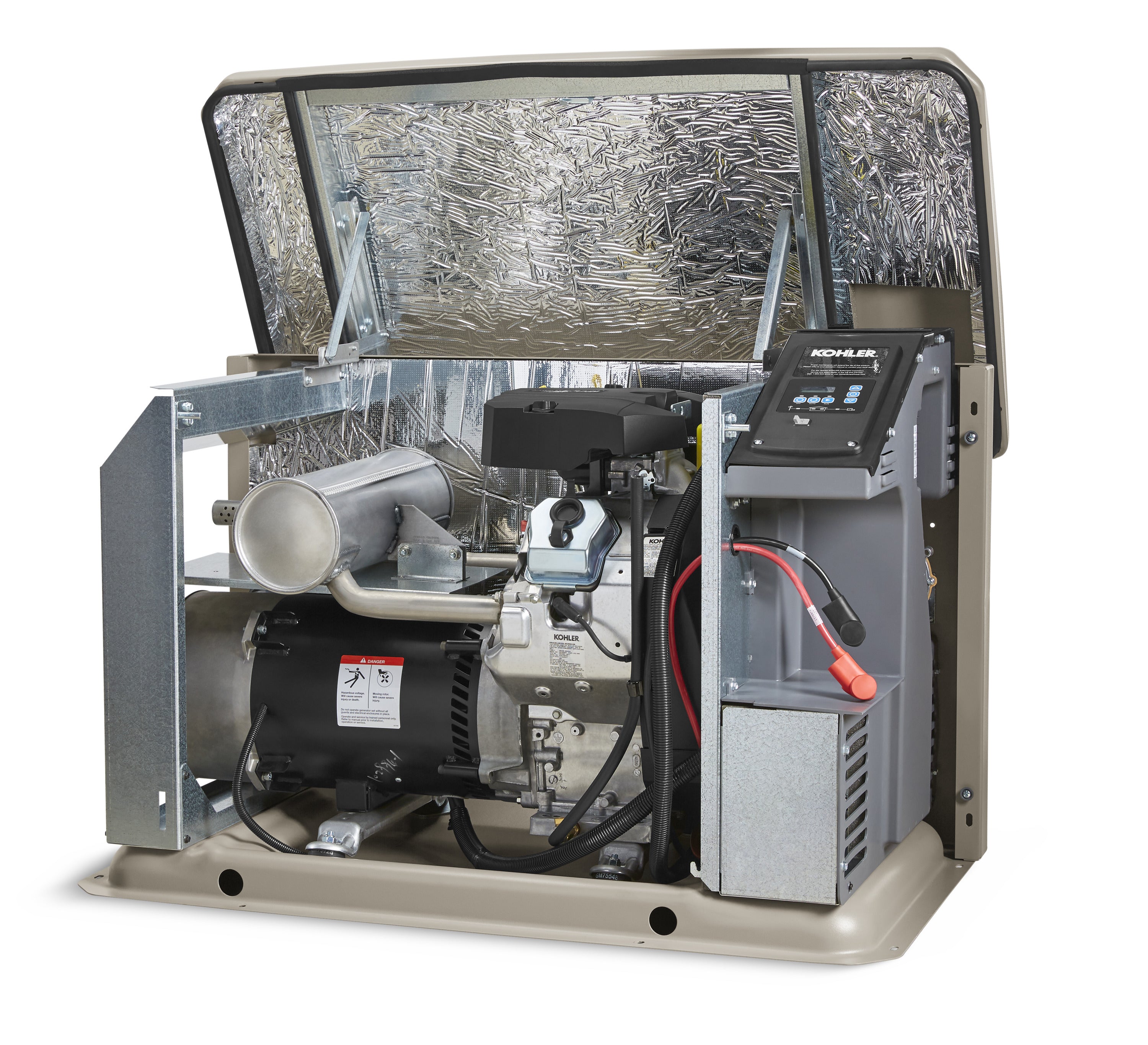

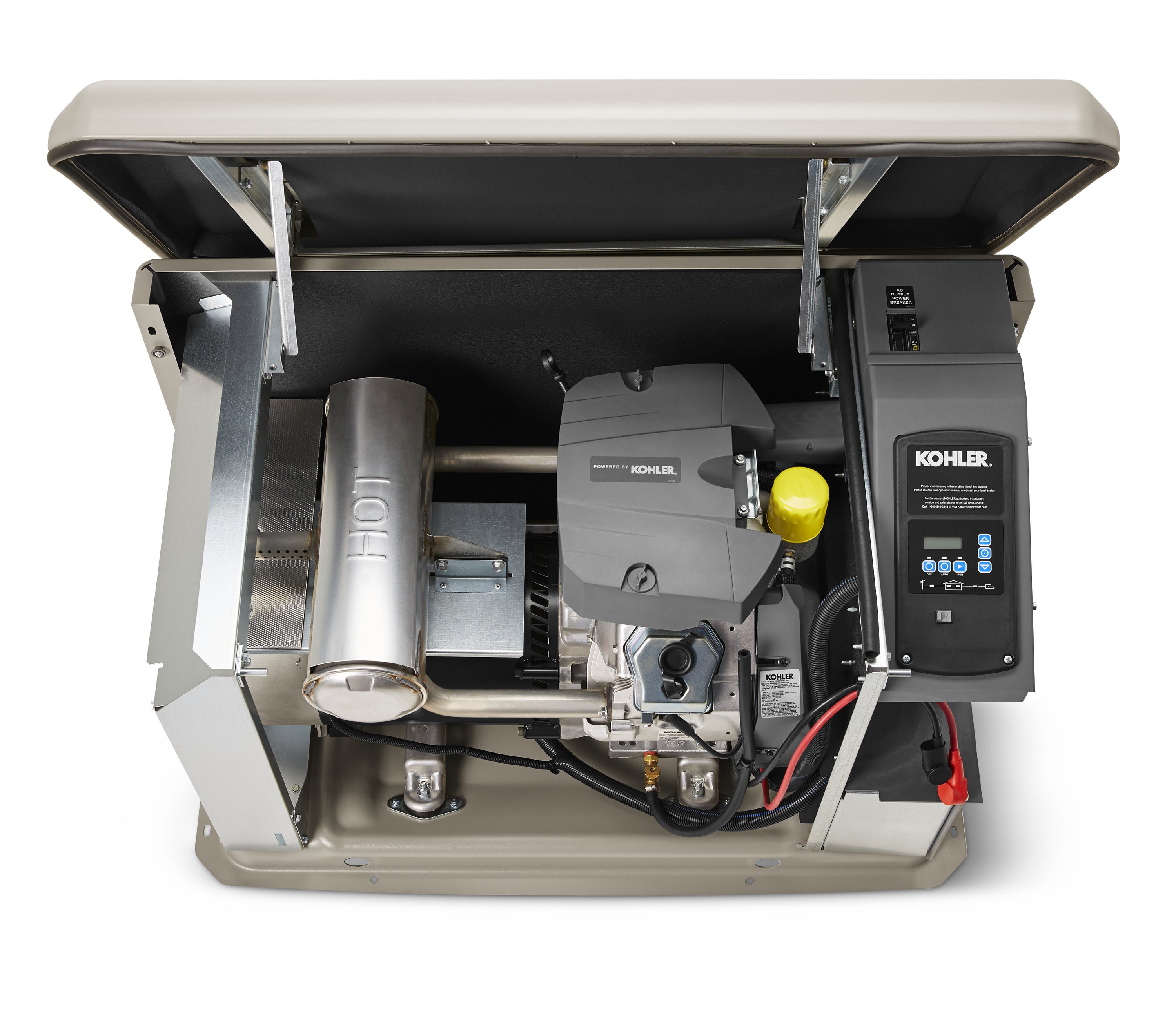

  • Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
  • Compatible with optional OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
  • Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only

THE CONVENIENCES YOU EXPECT

  • Comes with either an RXT 100-amp indoor-rated automatic transfer switch with 16-circuit load center or RXT 200-amp outdoor-rated service entrance rated automatic transfer switch with load shed kit
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Stylish corrosion-proof enclosure impact tested to -30°F
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
*Based on generator and load size.


Kohler 20kW Home Standby Generator w/ 200-AMP Automatic Transfer Switch & Load Shed

Compatible to run on natural gas (18kW) or liquid propane (20kW) with simple switching between natural gas and liquid propane in the field
Includes RXT 200-amp outdoor-rated, service entrance rated automatic transfer switch



    Model 20RESCL
    Rated kW LP 20 kW
    Rated kW NG 18 kW
    Amps LP 83 amps
    Amps NG 75 amps
    Peak Motor Starting kVA @240 V 41 kVa
    Alternator Note All information shown is for 1 Phase 60 Hz generatorwith the largest alternator option available.
    Displacement 999 cm³ (61 cu. in.)
    Horsepower NG 27.1 HP, LP 30.9 HP
    Enclosure Material Composite
    Sound Output During Weekly Exercise 64 dB(A)
    Sound Output During Full-speed Operation 69 dB(A)
    Response Time 10 seconds
    Warranty Premium five-year limited warranty
    Country of Origin US
    Certifications/Listings UL 2200,EPA,cUL
    Automatic Transfer Switch Included Included
    Remote Monitoring Available Included
    Off Grid / Utility Backup Utility Backup
    Weight 580 lbs. (263 kg)
    Alternator Type 2-Pole, Rotating Field
    Fuel Consumption on NG at 50% load? 161 cfh
    Fuel Consumption on LP at 50% load? 82 cfh

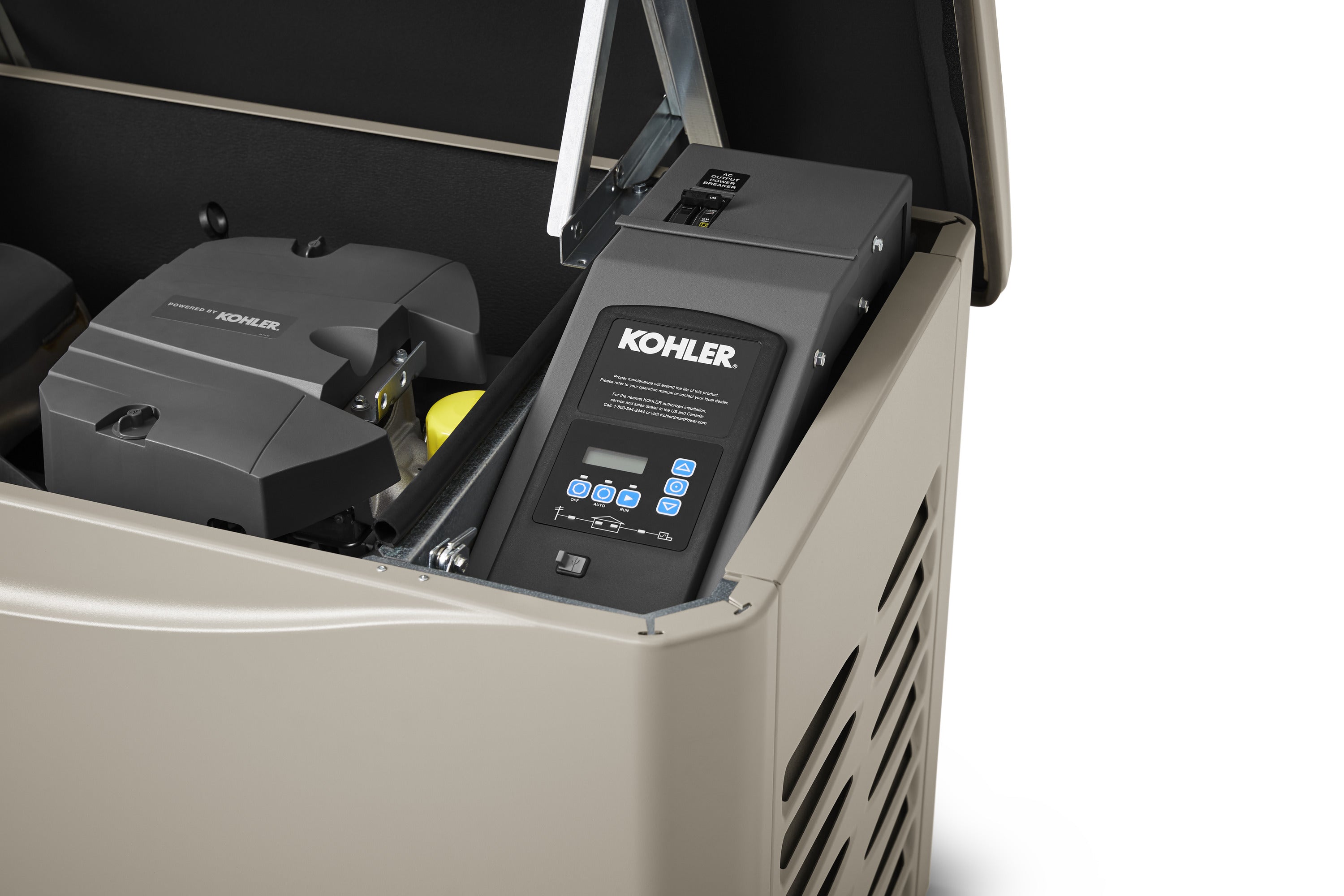

    Controller RDC2 Controller
    Cylinder Arrangement V-2
    Dimensions 1216 mm x 665 mm x 733 mm (48 in. x 26.2 in. x 29in.)
    Engine Manufacturer/Description KOHLER
    Engine Model CH1000
    Engine/Alternator RPM 3600
    Fuel Type Natural Gas,LPG
    Frequency 0=50 Hz, 1=60 Hz
    Phase Single Phase
    Voltage @ 60 Hz 120/240
    Digital Voltage Regulation ±1.0%
    Built in Mounting Pad Yes

    GM85144-1 Automatic Paralleling Module,200A N3R
    GM86369-S1 Breaker, Kit APM-20RESA
    GM92001-1 Load Management Module
    GM81529-S1 Programmable Interface Module (PIM)
    GM81529-S2 Programmable Interface Module (PIM), CSA
    GM17250-S1 Transformer,Current,400A:3Vac,MediumVolt
    GM114539-S1 OnCue, Wireless, RDC2/VSC Controller
    GM57969-S Kit, Carb. Heater, 40W120V (GM57969-KP1)
    GM57969-S3 Carburetor Heater, 40W, 120V
    GM79141-S Regulator Heater Kit (GM79141-KP1)
    GM79141-S2 Asm Regulator Heater Pad 240V
    GM92406-S3 Battery Heater Assembly Kit 120V, 50W
    GM92406-S2 Battery Heater, 50W, 230-240V
    GM106374 Battery, 1/12V, 500CCA, Wet
    GM101615-S1 Cover, Alternator Brush
    GM102176-S1 Pressure Sensor Cover
    GM110949-S2 Crankcase Breather & Oil Heater,20kW
    GM110948-S2 Cold Weather Package, 120V, 20kW
    GM107377-S Kit, Service 20RES Regulator Vent Plug
    GM90095-S1 Emergency Stop - 14/20kW
    GM103279-S1 NEC Remote, E-Stop
    GM113935-S1 Emergency Stop 14/20RCA / RESC
    GM62347 Kit, Residential Maint (17/18/20RES)
