32.5 hp Command Pro V-Twin

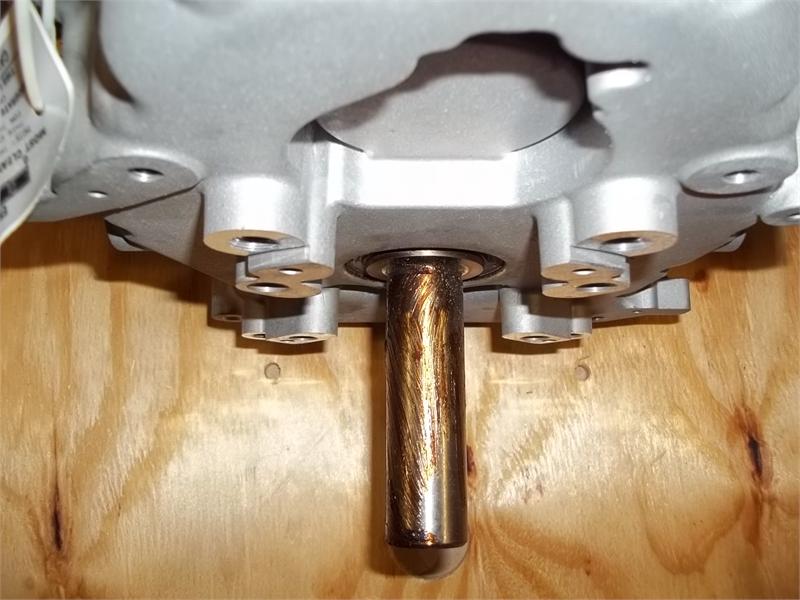

1-7/16 x 4.46 shaft
5/8 tapped
.375 Keyway
12 Volt Electric Start with 25 Amp Alternator
Solenoid Shift Style
Heavy Duty Canister Air Cleaner System
Mechanical Fuel Pump
No muffler, remote throttle setup, no keyswitch. (Order part
62 376 02-s)
Cast iron Sleeves
Model CH940-3000
132 lb

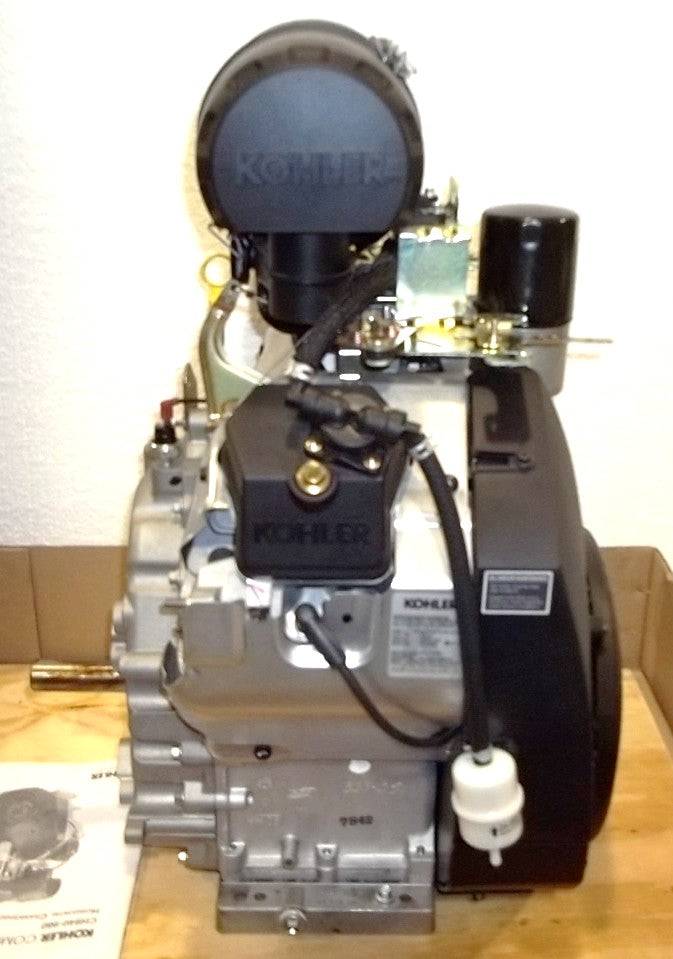

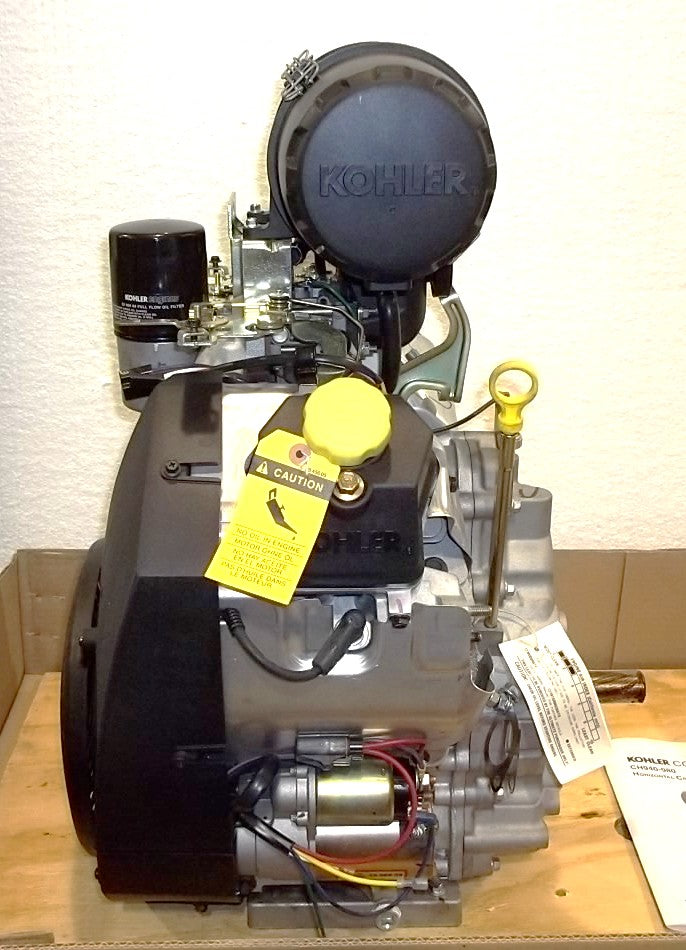

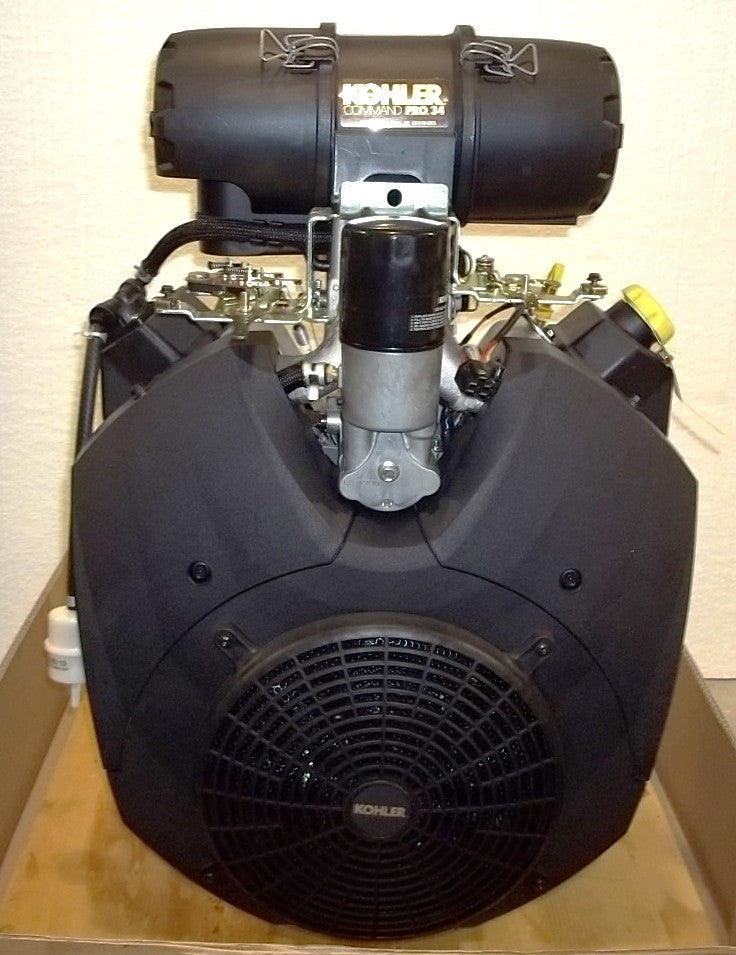

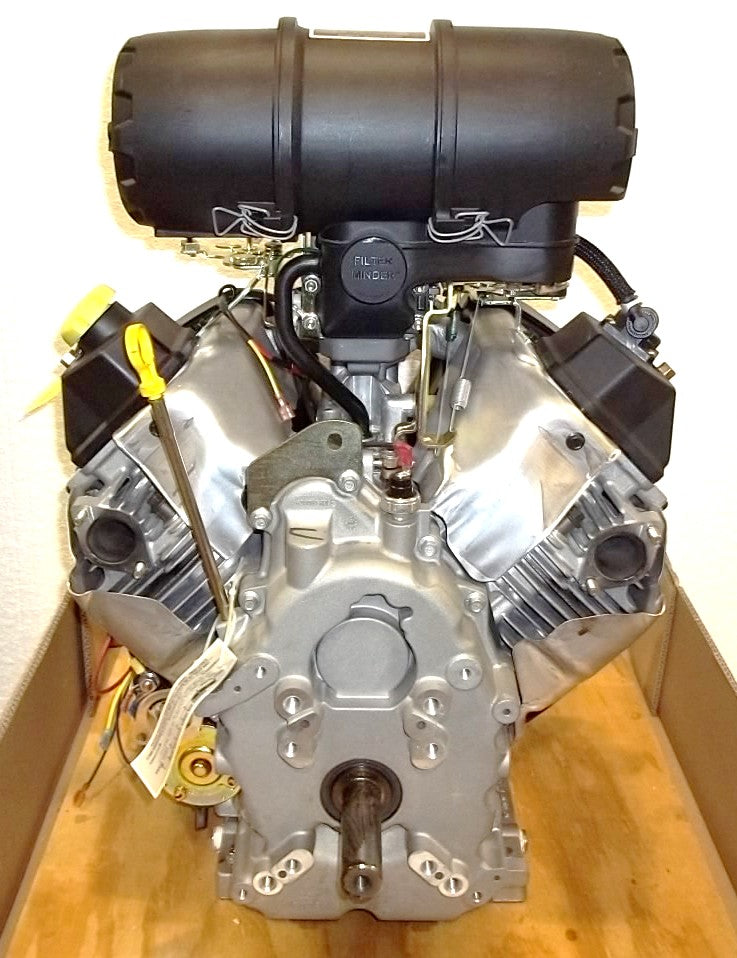

| This v-twin cylinder, air-cooled, 32.5 HP horizontal-shaft engine is built to last. OHV, cast iron cylinder liners, and aluminum block construction make the 4-cycle, gasoline-powered Command PRO ready for the long haul. |
Easy Dependable Starts
- Two-barrel carburetor
- Electronic ignition system
- Solenoid shift starter
- Mechanical fuel pump
Reliability & Long-life Design
- Heavy-duty air cleaner
- Integrated oil cooler
- Heavy-duty bearings
- Hardened crank shaft journals
- High-efficiency fan and screen
- Cast iron cylinder liners
- Full pressure lubrication
- Spin on, full-flow oil filter
|
Peak Power Performance
- High-performance spark plugs
- 25 amp charging, regulator
- Larger in-line fuel filter
- Overhead valve (OHV) design
Quiet, Smooth Operation
- Nylon Cam Gear
- Hydraulic valve lifters
- Modulated cooling fan
- Engineered material blower housing
User-friendly Maintenance
- Top mounted quick change oil filter
- Extended maintenance intervals
- Yellow oil fill cap & dipstick handle
- Large dual oil drains for faster oil changes
- Easy access oil fill/dipstick
- Two year limited warranty
|
|
Specifications
|
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block |
| MODEL |
Command PRO CH940 |
| MAX. POWER @ 3600 RPM hp (kW) |
32.5 (25.4) |
| DISPLACEMENT cu. in. (cc) |
61 (999) |
| BORE in. (mm) |
3.5 (90) |
| STROKE in. (mm) |
3.1 (78.5) |
| PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) |
60.7 (82.3) @ 2400 |
| COMPRESSION RATIO |
8.8:1 |
| DRY WEIGHT lbs. (kg) |
132 (59) |
| OIL CAPACITY U.S. quarts (liters) |
2.9 (2.75) |
| LUBRICATION |
Full pressure w/full-flow filter |
| DIMENSIONS L x W x H in. |
15.3 x 19.0 x 27.5 |
|
|
*Length is front to rear of engine. Width is valve cover to valve cover. Height is mounting surface to top of air cleaner.
|
