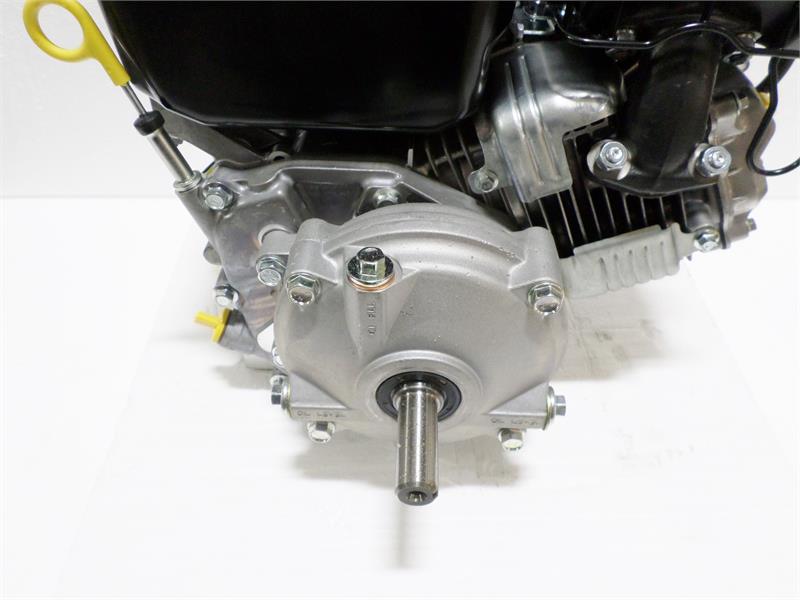

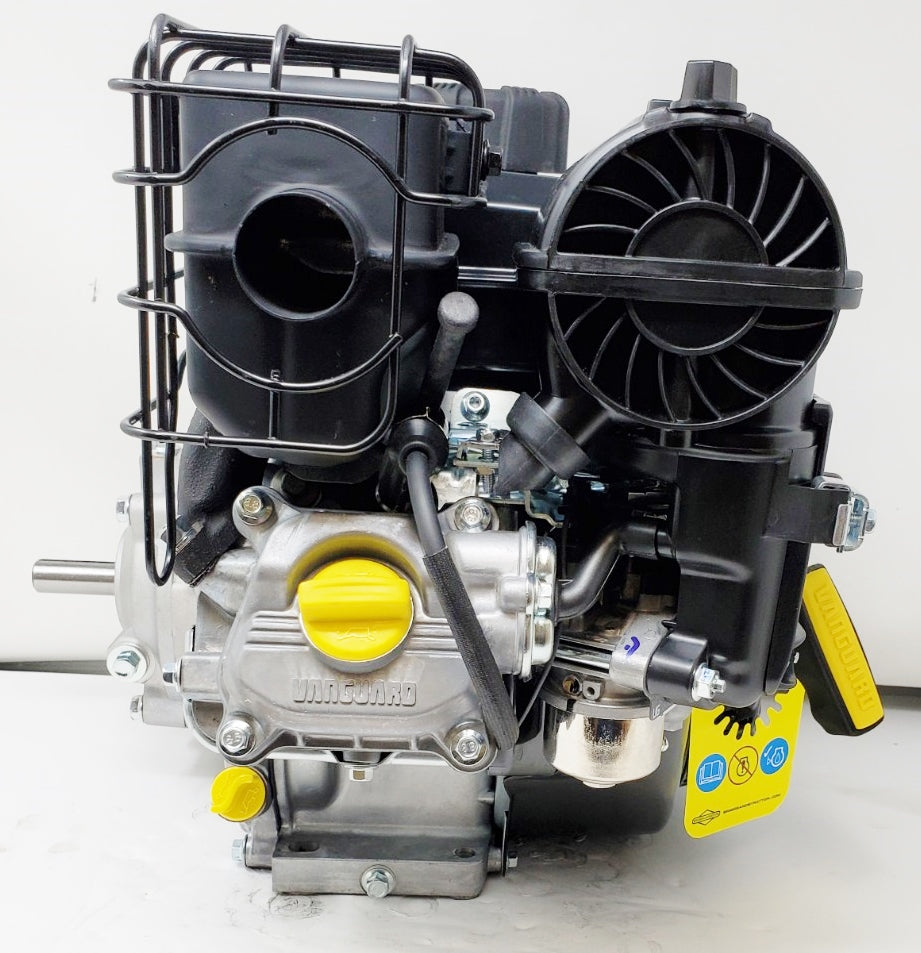

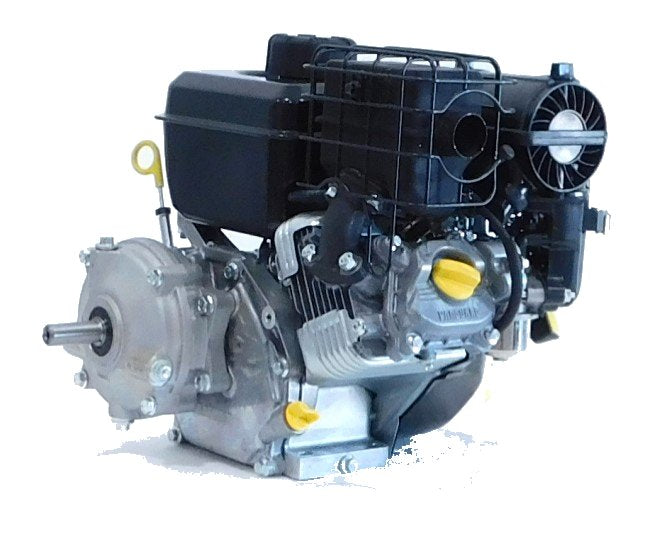

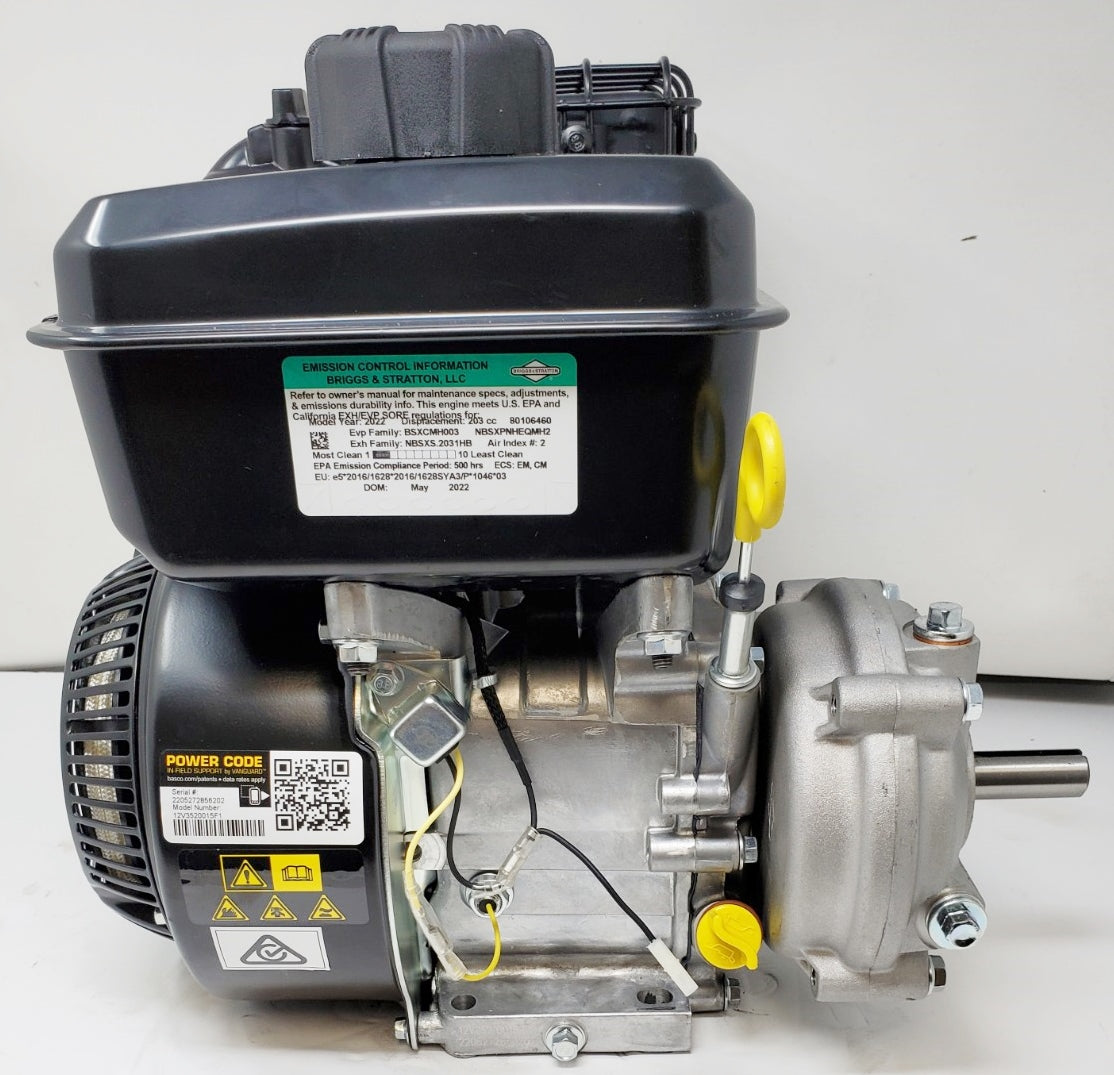

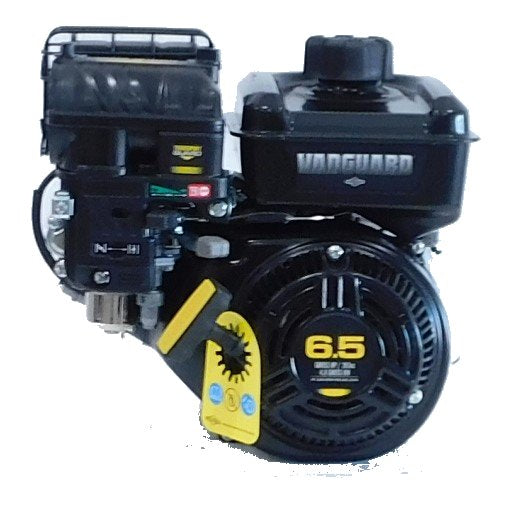

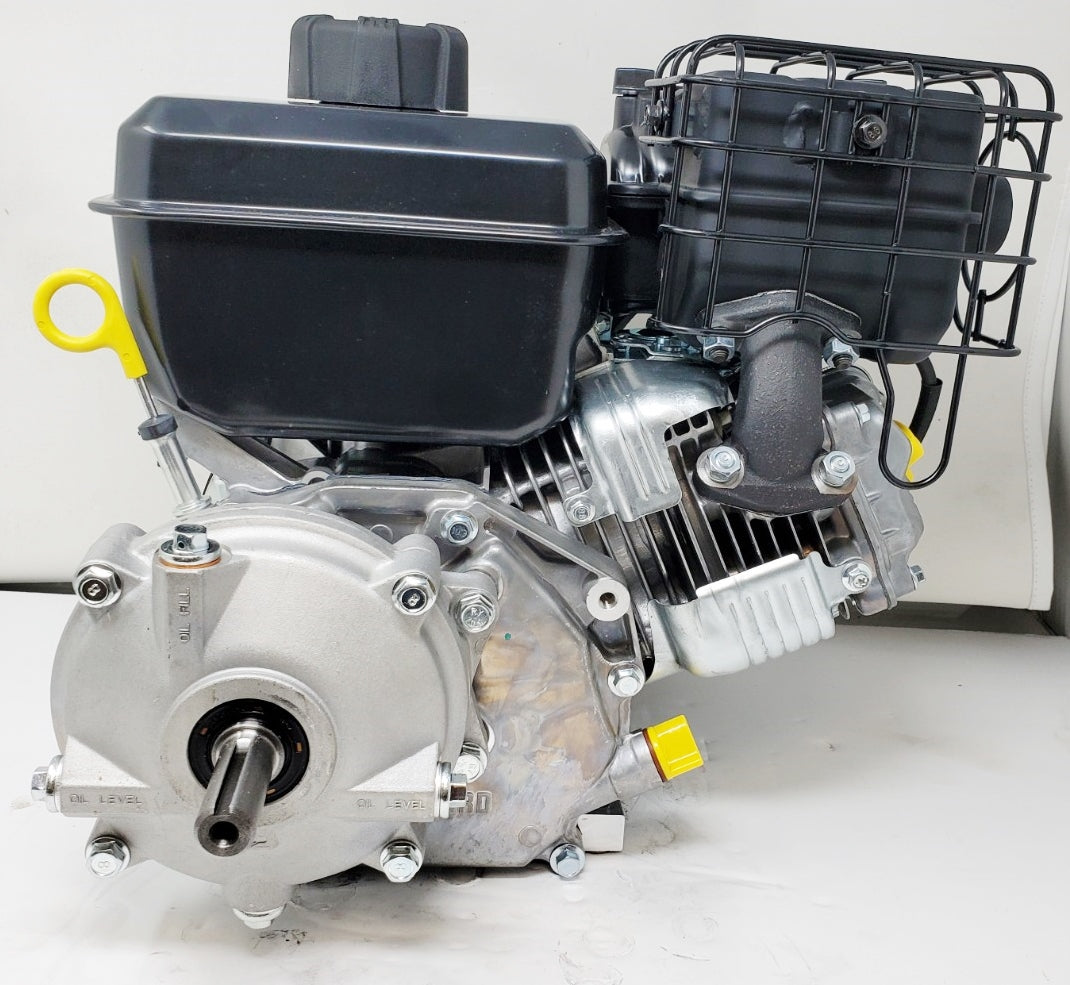

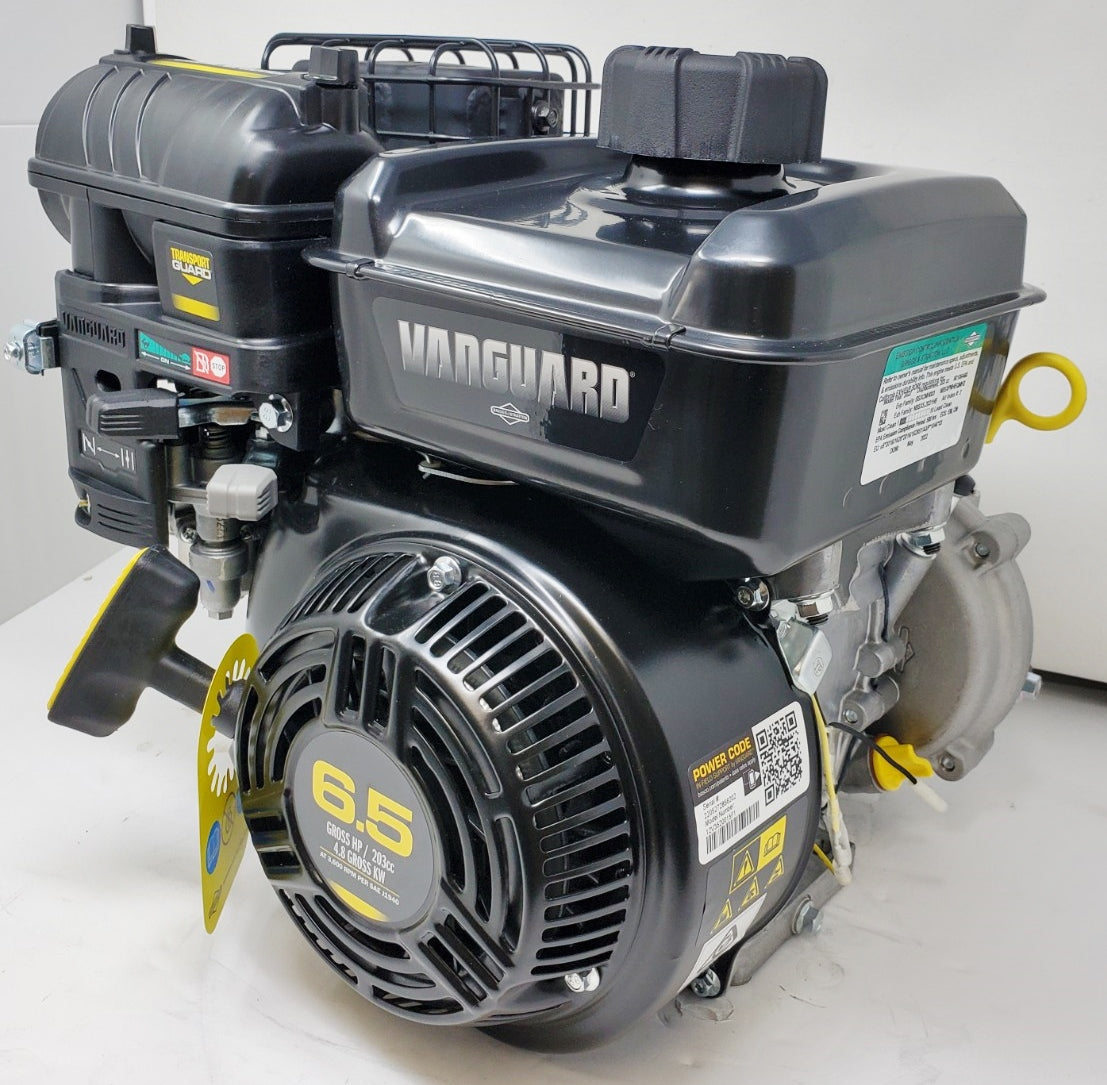

Briggs and Stratton 6.5hp Vanguard Engine 203cc 6:1 gear reduction #12V352-0015

Briggs 6.5hp Vanguard 203cc 6:1 gear reduction engine #12V352-0015

6.5hp Briggs Vanguard OHV
3/4" x 1-13/16" shaft, with 3/16" keyway.
Cast Iron Sleeve, Universal footprint for easy repowering.
Model 12V352-0015

Engine Application Drawing

FEATURES:
Cyclonic air filter with 120% more dust holding
capacity and 3x the filter life
TransportGuard® Single fuel/ignition shut off
system protects the engine from oil/fuel dilution
during transport
Commercial-style carburetor includes nickel plating
to resist stale fuel deposit buildup
CDI ignition with variable timing to optimize speed
and torque
Mechanical Governor
Buyer protection package provides three-year
commercial limited warranty
