Description

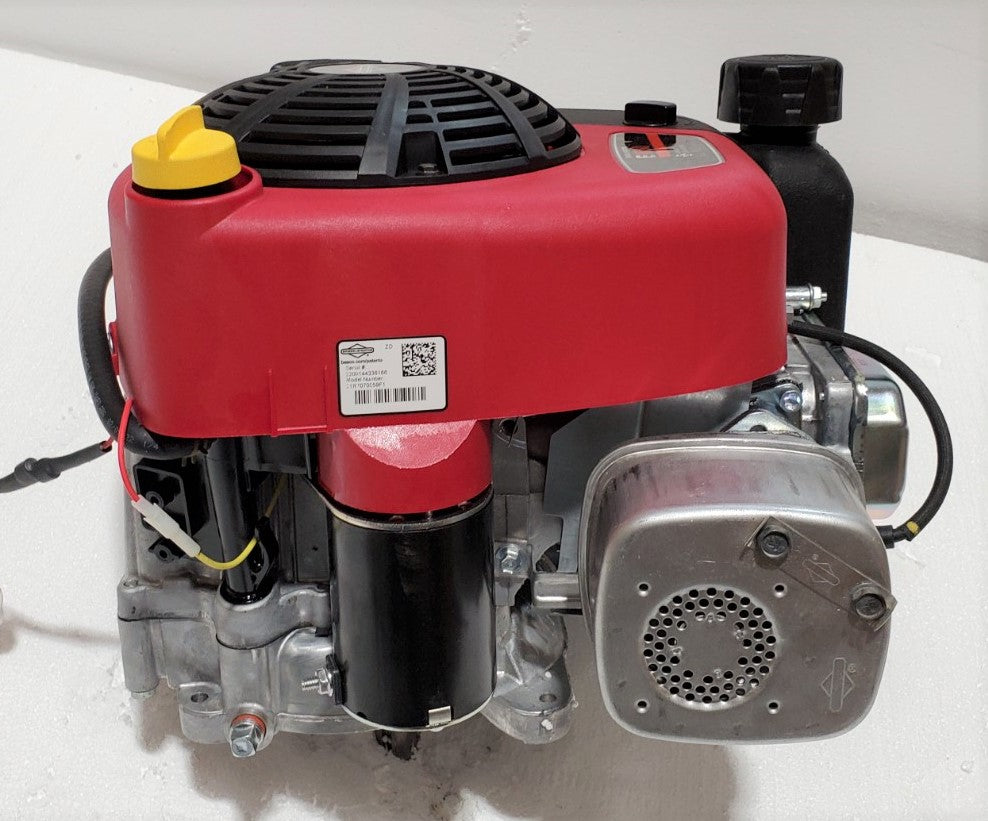

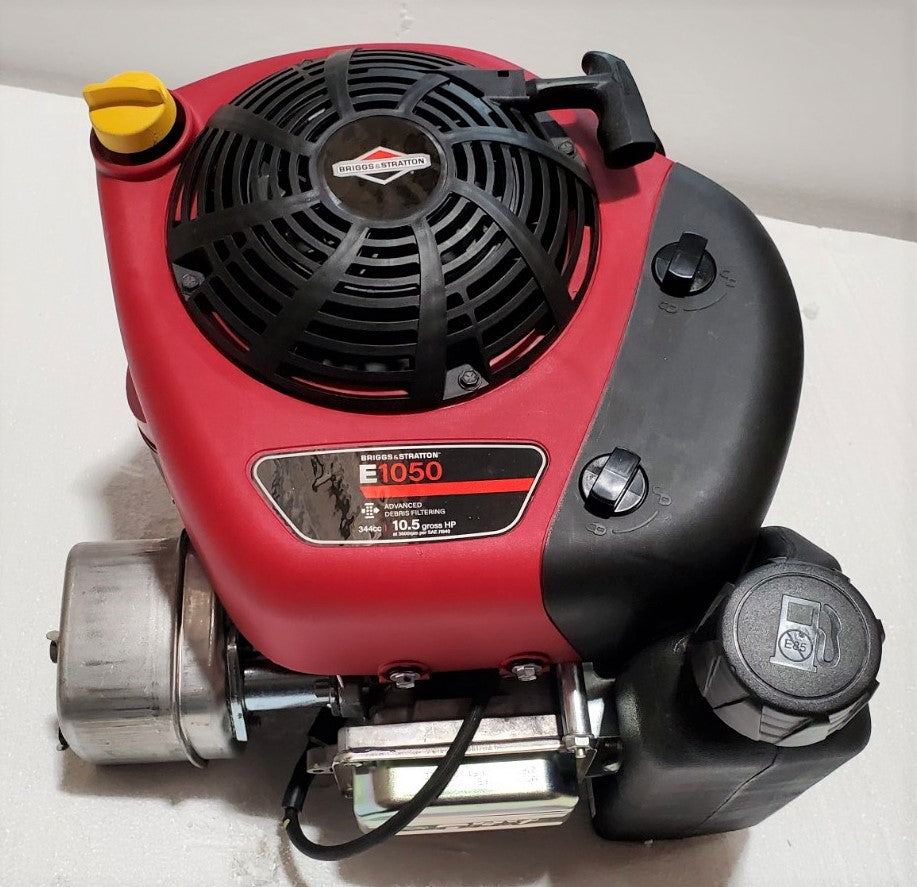

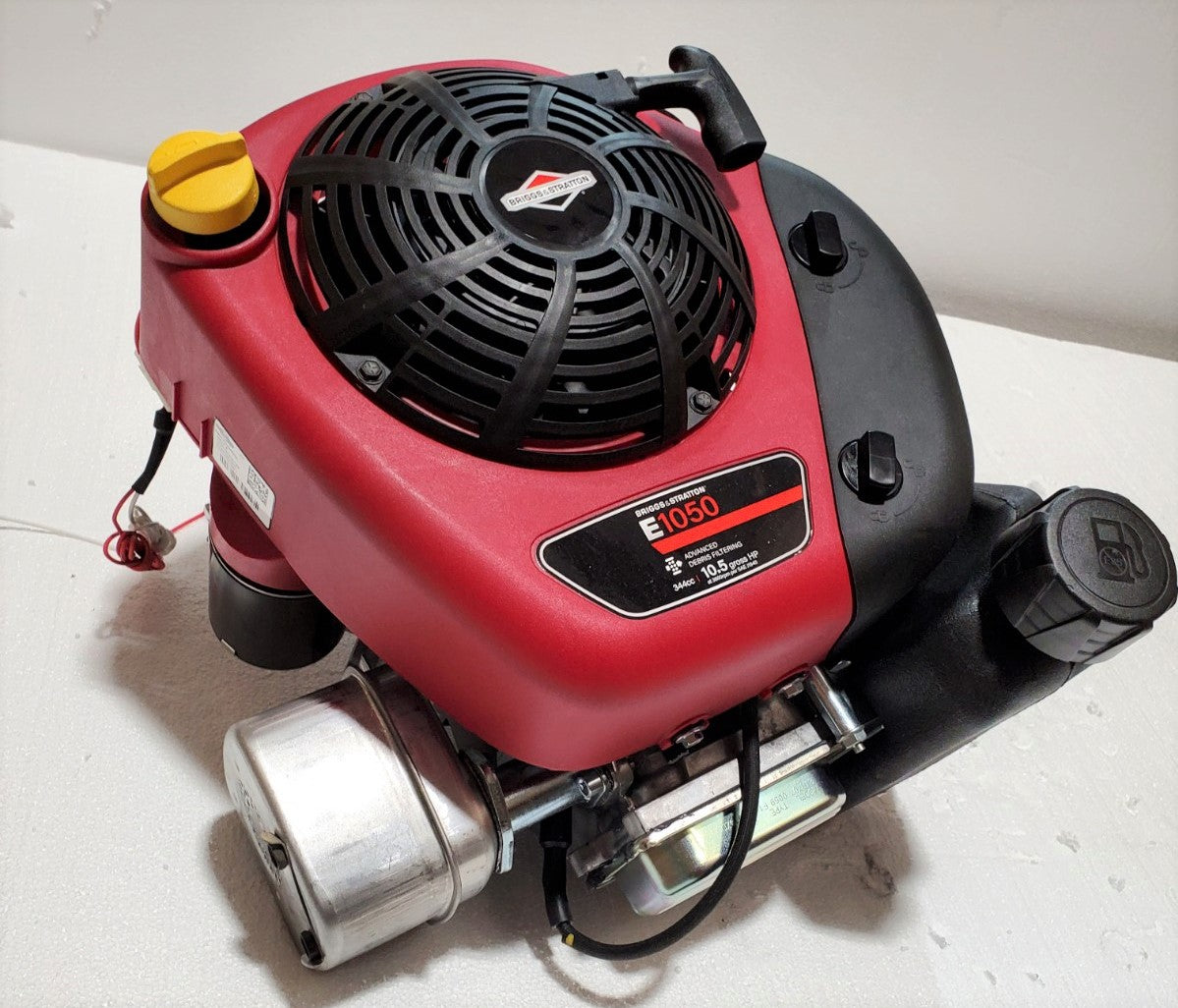

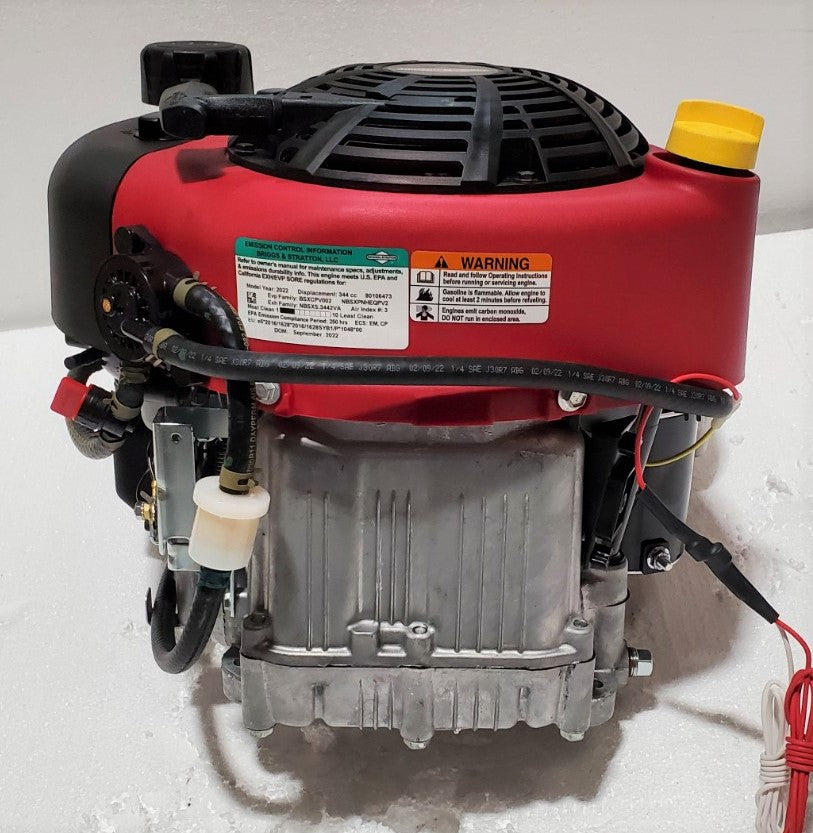

Briggs & Stratton 10.5 hp 344cc OHV Vertical Shaft Engine

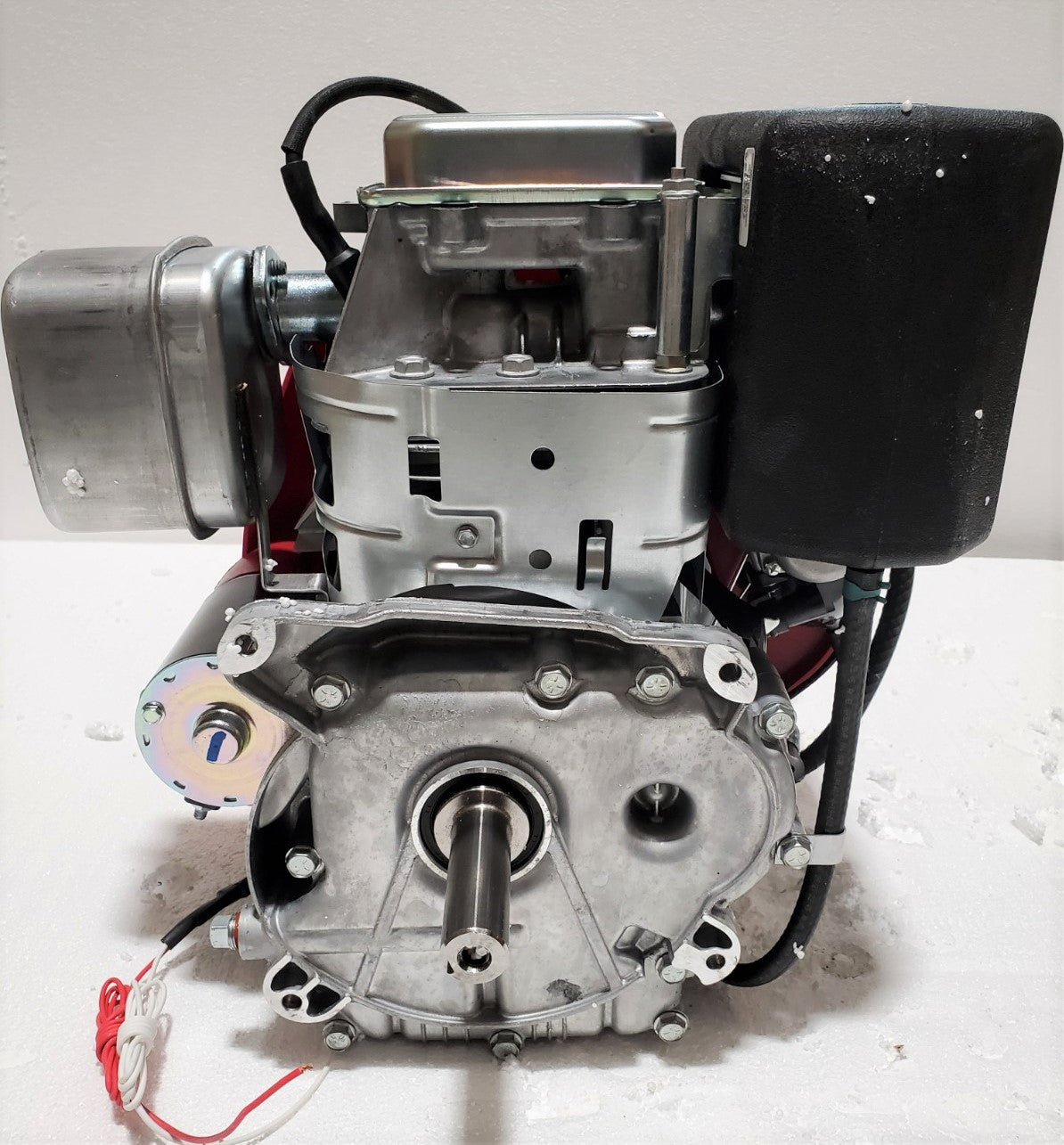

1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.
Cast iron sleeve, AVS patented linear balancing system,

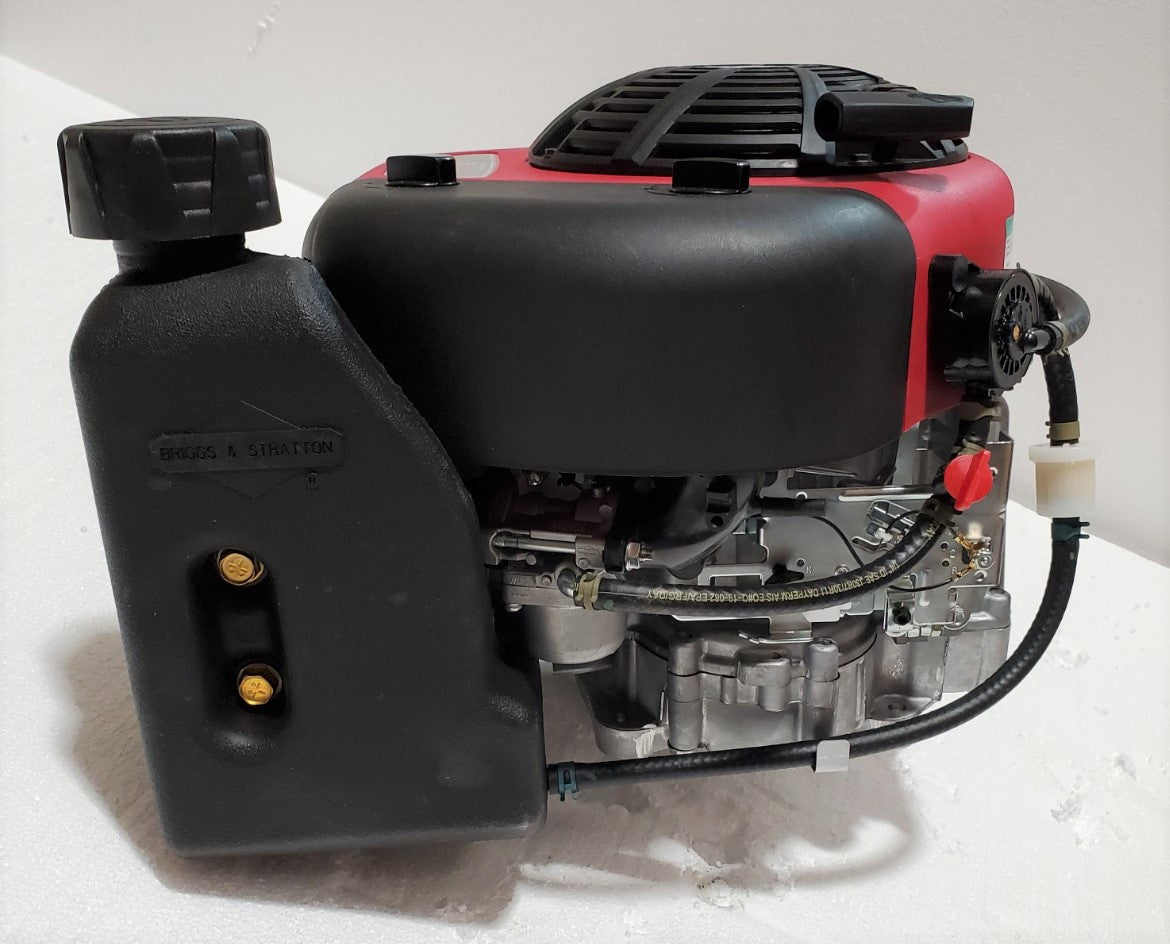

Electric start w/ recoil auxiliary. 3 quart fuel tank. Fuel Pump
Tri-Circuit Alternator
Universal replacement engine, great for commercial walk behinds.
Model 21R707-0059
83 lbs
CARB approved for sale in California.
21R707-0059-F1
Engine Specifications
| SKU | 21R707-0059-F1 |
| Model/Type/Trim | 21R707-0059-F1 |
| 6 Pin Connector | Without |
| Air Cleaner | Cartridge |
| Air Cleaner Color | 290 Satin Black |
| Alternator | Tri-Circuit |
| Carburetor | Choke-a-matic |
| Casing Clamp | Installed |
| Controls | Equip for Remote |
| Crankshaft | Straight 3.157" PTO |
| Crankshaft Details | 1/4" Keyway, 7/16-20 D&T |
| Emissions Certification | CARB EXH, EVAP, EU |
| Engine Base | Without Oil Pressure Switch |
| Engine Idle Speed | Fixed Idle 1750 +/-100 RPM |
| Engine Package | Powerbuilt |
| Engine Sold In | United States |
| Engine Speed | 3600 +/- 0100 RPM - No Load |
| Flywheel | Heavy - Cast Iron |
| Fuel Line | 3.5" with 40 Micron Filter |
| Fuel Pump | Integral |
| Fuel Shutoff | Installed |
| Fuel Tank | 2.8 Quart CIC |
| Label Power | E1050 |
| Lubrication | Splash Lube |
| Muffler Guard | Without |
| Oil Drain | Plug |
| Oil Filter | Without |
| PTO Bearing | Plain |
| Purge Port | Low Vacuum |
| Regulator | Without |
| Rewind Position | 9:00 |
| Spark Plug Boot | Standard With Wire Sleeve |
Technical Specifications
| Model Series | 21R7 |
| Displacement | 344 |
| Oil Capacity | 48 oz (1.4 l) |
| Valve Configuration | OHV |
| Flywheel Torque | 100 lb/ft (135.5 Nm) |
| Governor Arm Torque | 40 lb/in (4.5 Nm) |
| Carb Mount | 70 lb/in (8.0 Nm) |
| Plug Gap | 0.03 in (0.75 mm) |
| Intake Valve | .003-.005 in (.08-.13 mm) |
| Exhaust Valve | .005-.007 in (.13-.18 mm) |
| Idle Speed | 1750 |
| Air Gap | .010-.014 in (.25-.36 mm) |
| Flywheel Puller Part | 19203 |
| Flywheel Holder Part | 19433 |
| Connecting Rod Torque | 150 lb/in (17.0 Nm) |
| Sump Torque | 200 lb/in (22.5 Nm) |
| Head Torque | 220 lb/in (25.0 Nm) |
| Top No Load (rpms) | 3600 +/- 0100 RPM - No Load |
Alternator Specifications
| Alternator | 592829 |
| Type | 5 adc / 9 adc / Tri-circuit |
| Testing RPM | 3600 |
| AC Volts | 28 / 40vac / 28 |
| DC Amps | 2-5 amp / 2-9 amp / 5 amp +DC, 5 amp -DC |
