Briggs 7.25 TP 163cc OHV Engine HF 7/8" x 1-13/16" #104M02-0256

Save 14%
Briggs & StrattonSKU: 104M02-0256

Price:
Sale price$299.95 Regular price$349.00
Stock:
In stock (29 units), ready to be shipped

Description

725 EXi Series

7.25 GROSS TORQUE



Introducing Briggs & Stratton new EXi Series Engines. Redesigned from the ground up, EXi Series Engines are equipped with the best of everything we have to offer. With the ReadyStart Starting System there is no prime, no choke, no worries-just pull for power. EXi Series is the first walk-behind mower engine featuring Just Check and Add so you'll never need an oil change-ever. Powerful, durable, easy to maneuver and easy to maintain, EXi Engine Series. It's engines made easy.

Briggs 7.25 TP  163cc

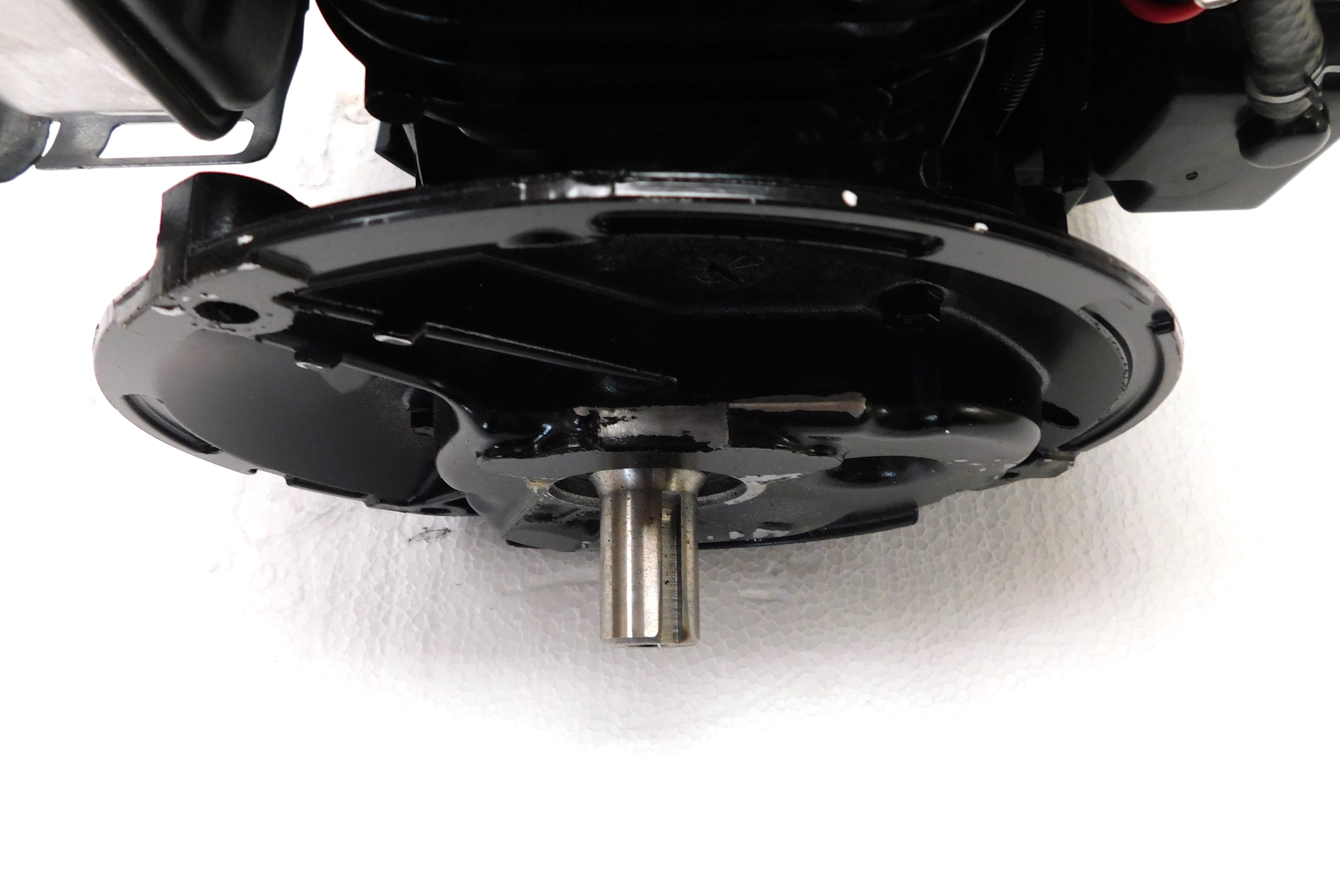

7/8" x 1-13/16" shaft, tapped 3/8"-24 with 3/16" keyway.
Non-compliance engine, heavy flywheel.
Fixed Speed Throttle design
Universal replacement engine for pressure washers, log splitters, and other types
of engines that do not need a flywheel brake, or that have a mower blade attached.
Ready Start, no choke- no priming.
3800 rpm top speed setting.
Model 104M02-0256
28 lbs


Engine Specifications

SKU 104M02-0256-F1
Model/Type/Trim 104M02-0256-F1
Air Cleaner Paper
Carburetor ReadyStart - Simple System
Casing Clamp Without
Controls Fixed Speed
Crankshaft Straight 7/8" Dia - 1.812" PTO
Crankshaft Details 3/16" Keyway, 3/8-24 UNF-2B
Emissions Certification EVAP/EXH/EU
Engine Base Standard (Non Flange Mount)
Engine Package 725 EXi Series
Engine Sold In United States & Canada
Engine Speed 3800 +/- 0100 RPM - No Load
Flywheel Heavy - Cast Iron
Fuel Cap Black 1/4 Turn
Fuel Shutoff Without
Fuel Tank EVAP - 1.0L
Label Power EXi725 ReadyStart
Muffler Guard Stamped
Oil Dipstick Extended - Black Cap
Oil Drain Without, Check & Add
Rewind Position 11:30

Technical Specifications

Model Series 104M
Power Lbs/Ft of Torque 7.25
Engine Series 725
Displacement 163
Oil Capacity 15 oz (.44 l)
Valve Configuration OHV
Flywheel Torque 60 lb/ft (81.3 Nm)
Governor Arm Torque 30 lb/in (3.4 Nm)
Carb Mount 60 lb-in (6.8 Nm)
Plug Gap 0.03 in (0.76 mm)
Intake Valve .004-.008 in (.10-.20 mm)
Exhaust Valve .004-.008 in (.10-.20 mm)
Idle Speed 1750
Air Gap .006-.014 in (.15-.36 mm)
Flywheel Puller Part 19619
Flywheel Holder Part 19433
Connecting Rod Torque 97.5 lb/in (11.0 Nm)
Sump Torque 105 lb/in (11.9 Nm)
Head Torque 130 lb/in (14.7 Nm)
Top No Load (rpms) 3800 +/- 0100 RPM - No Load
