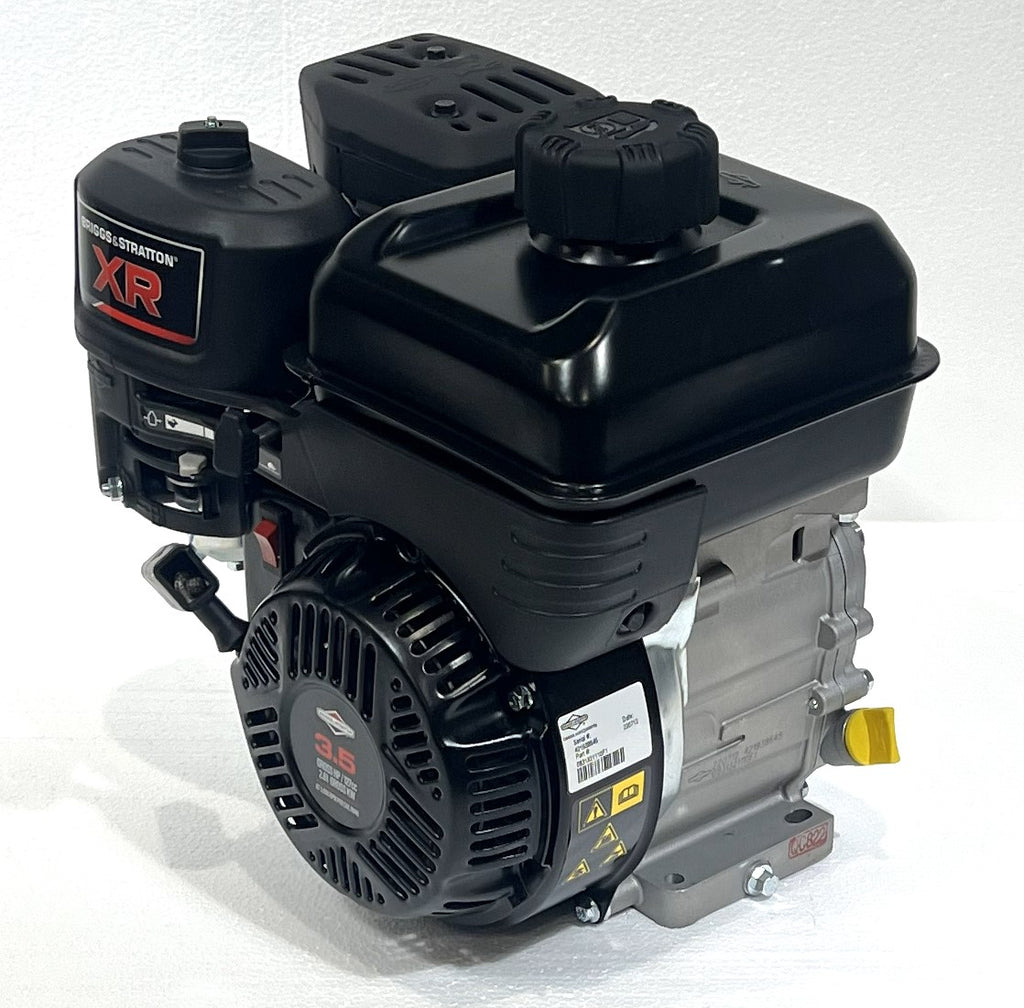

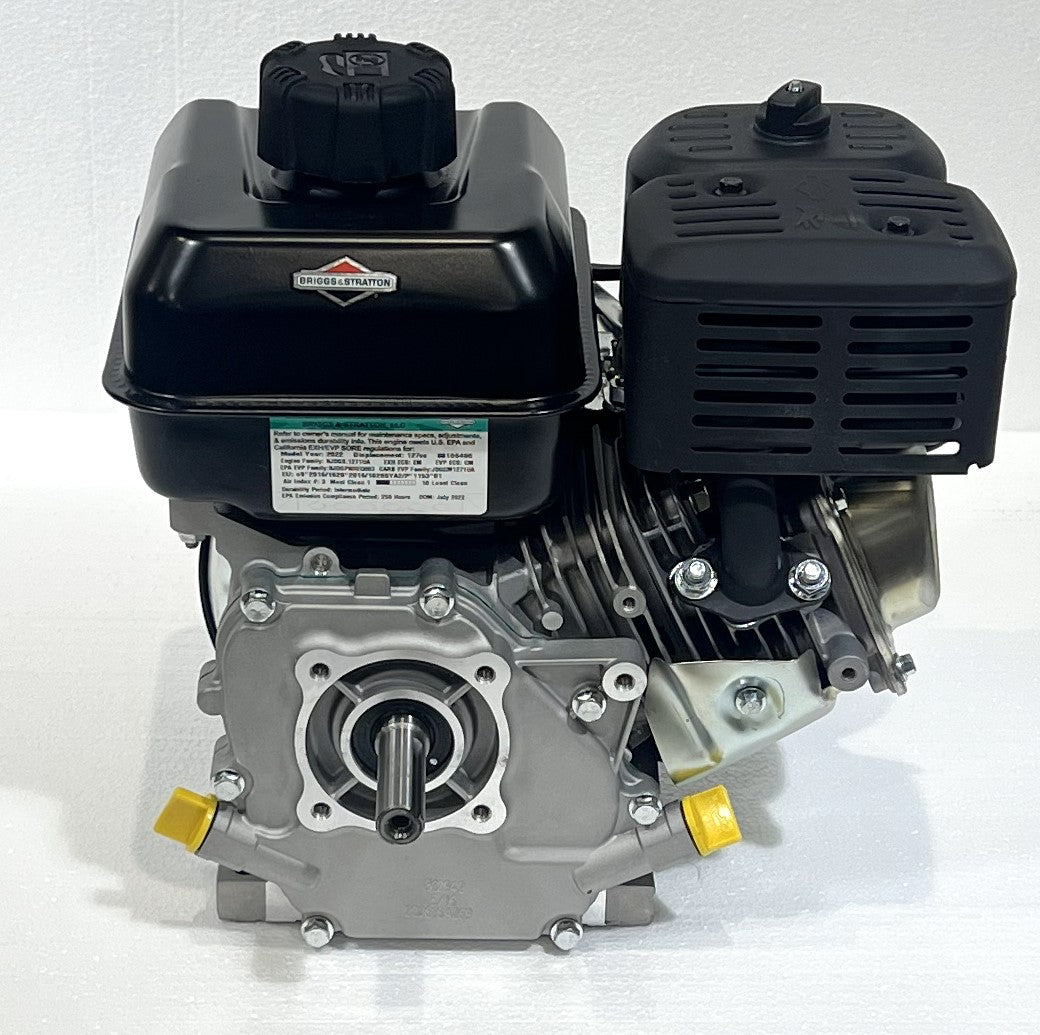

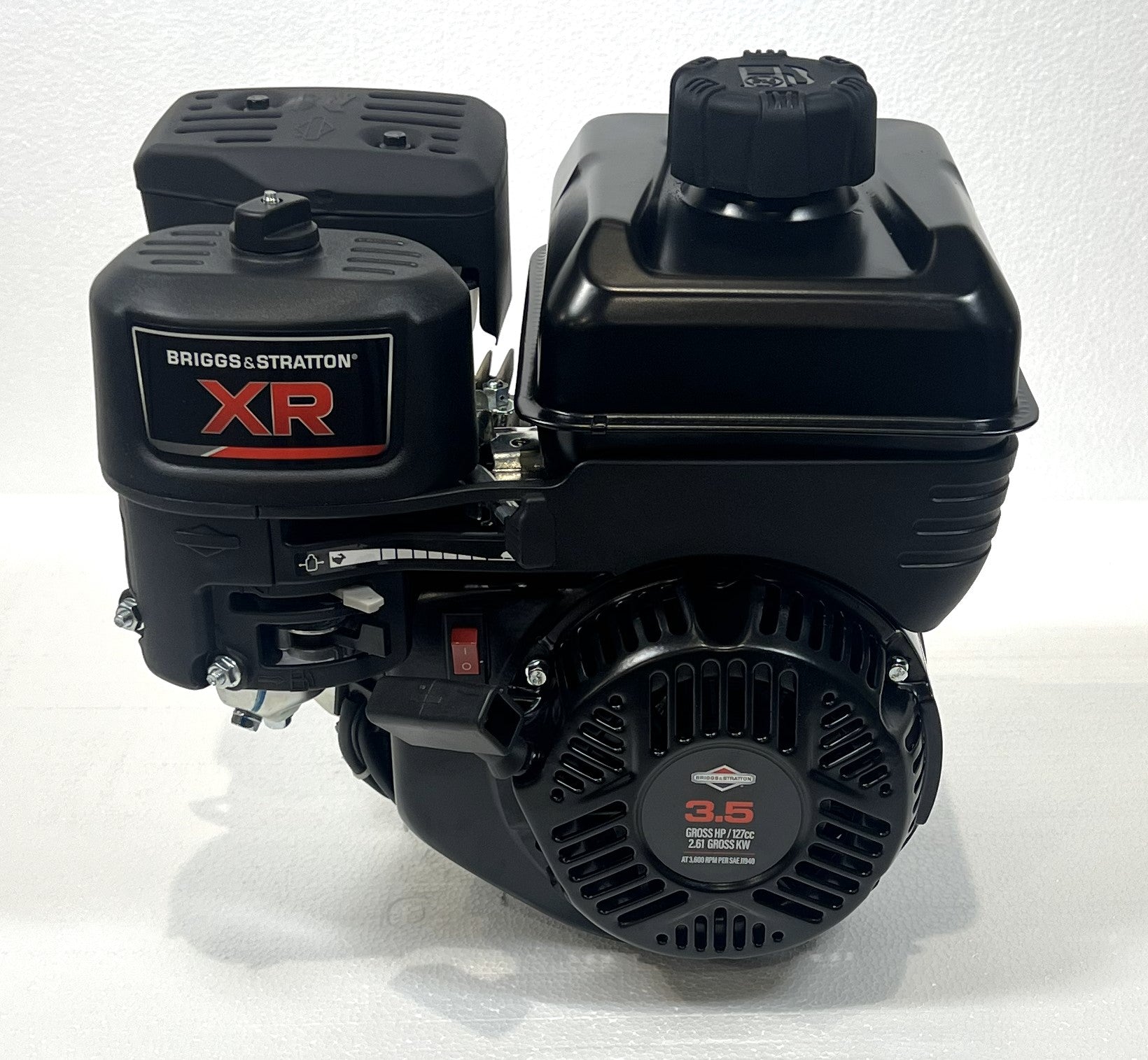

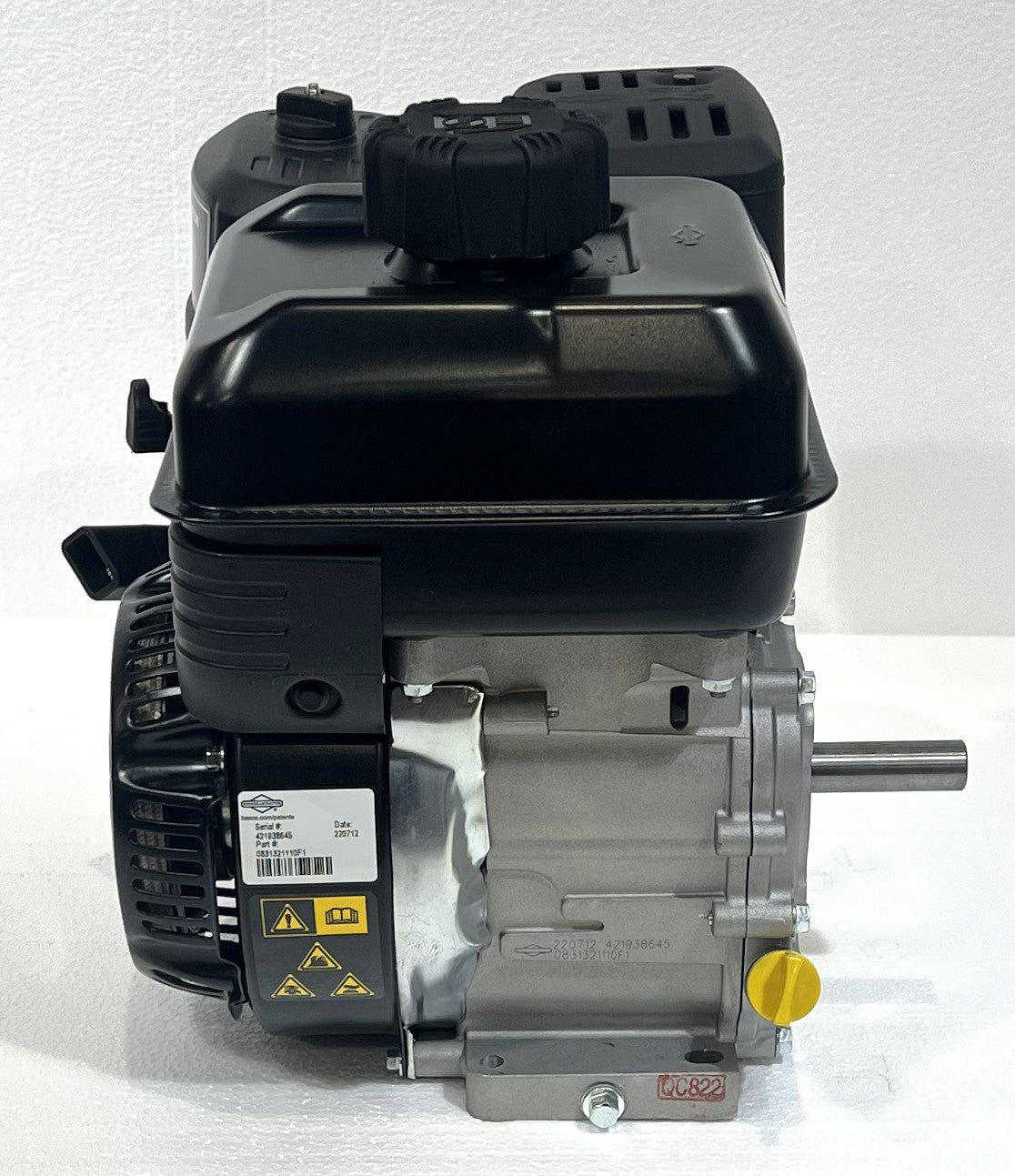

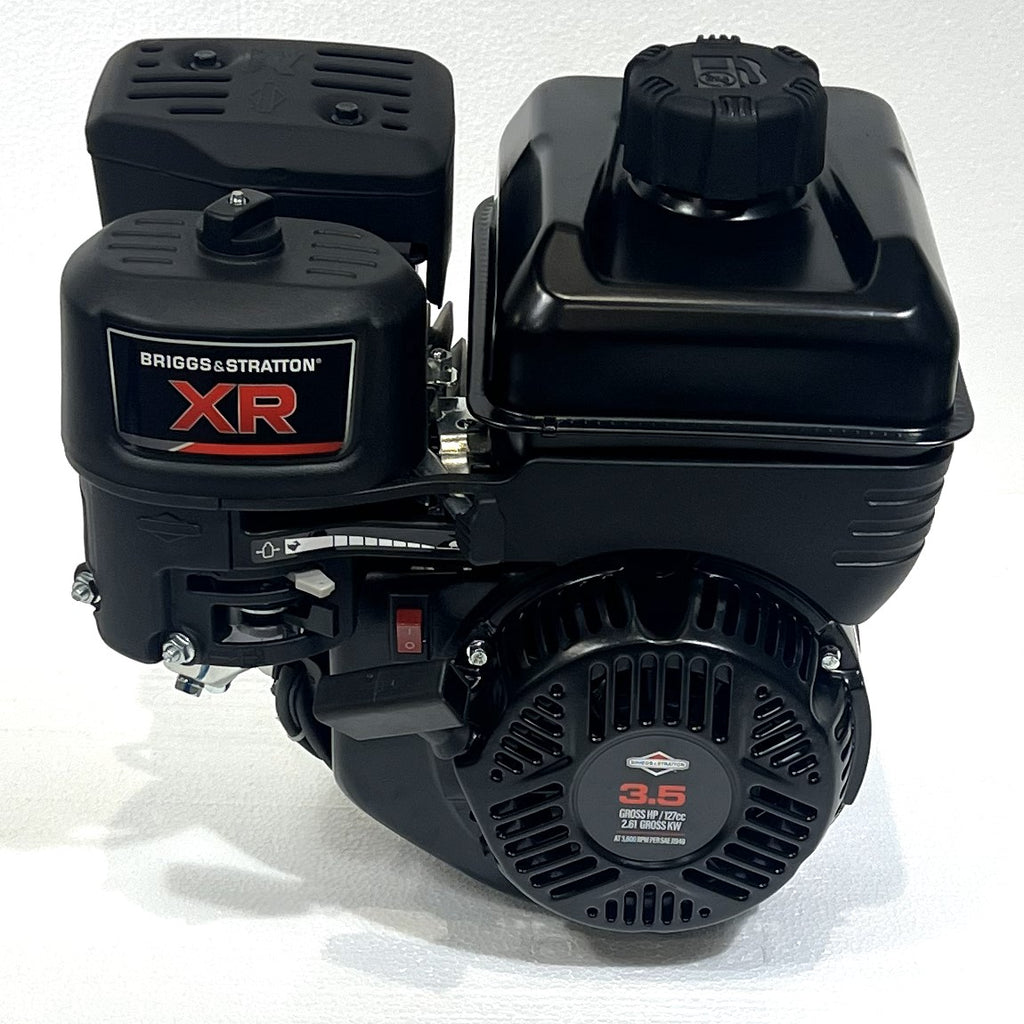

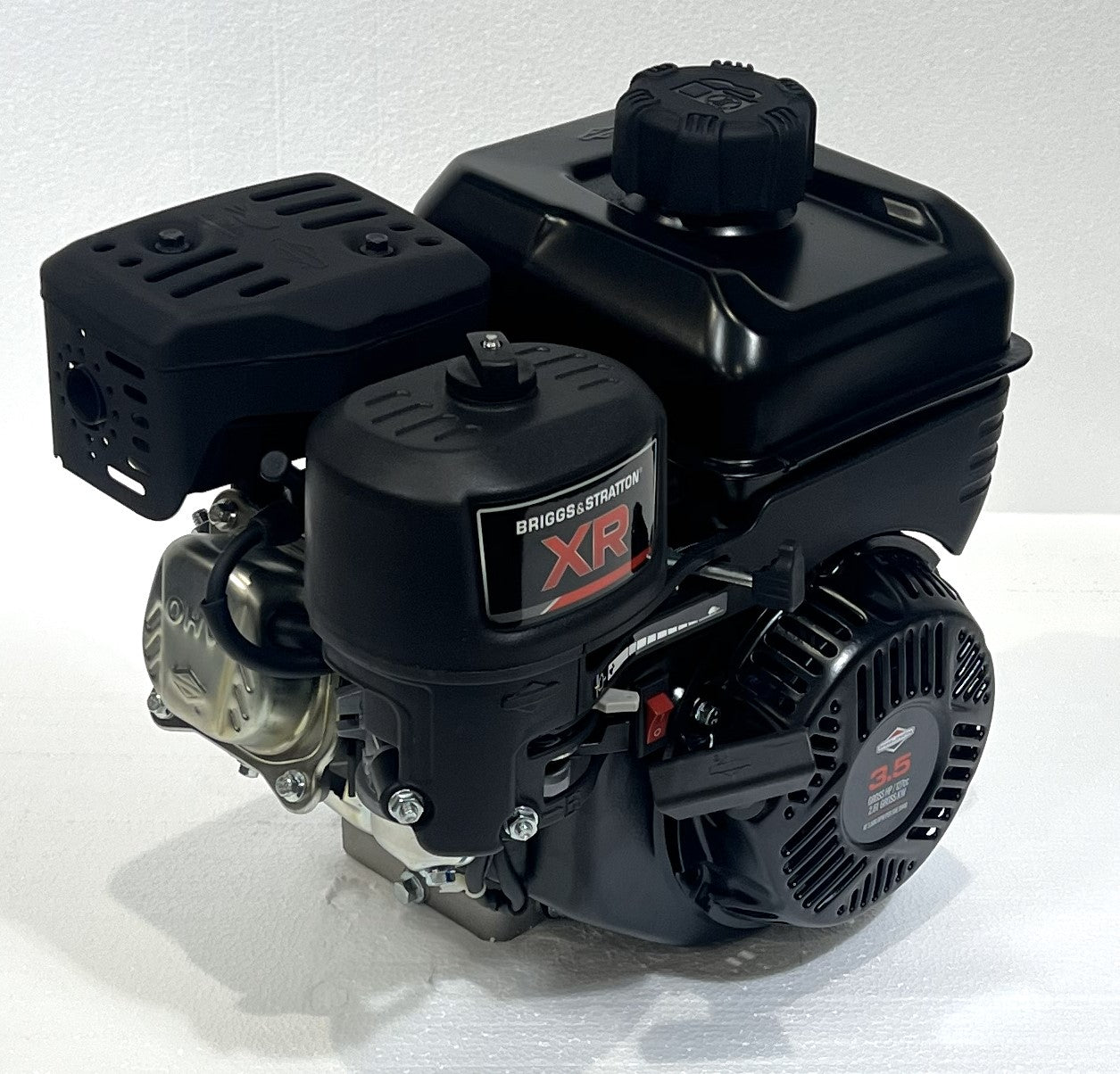

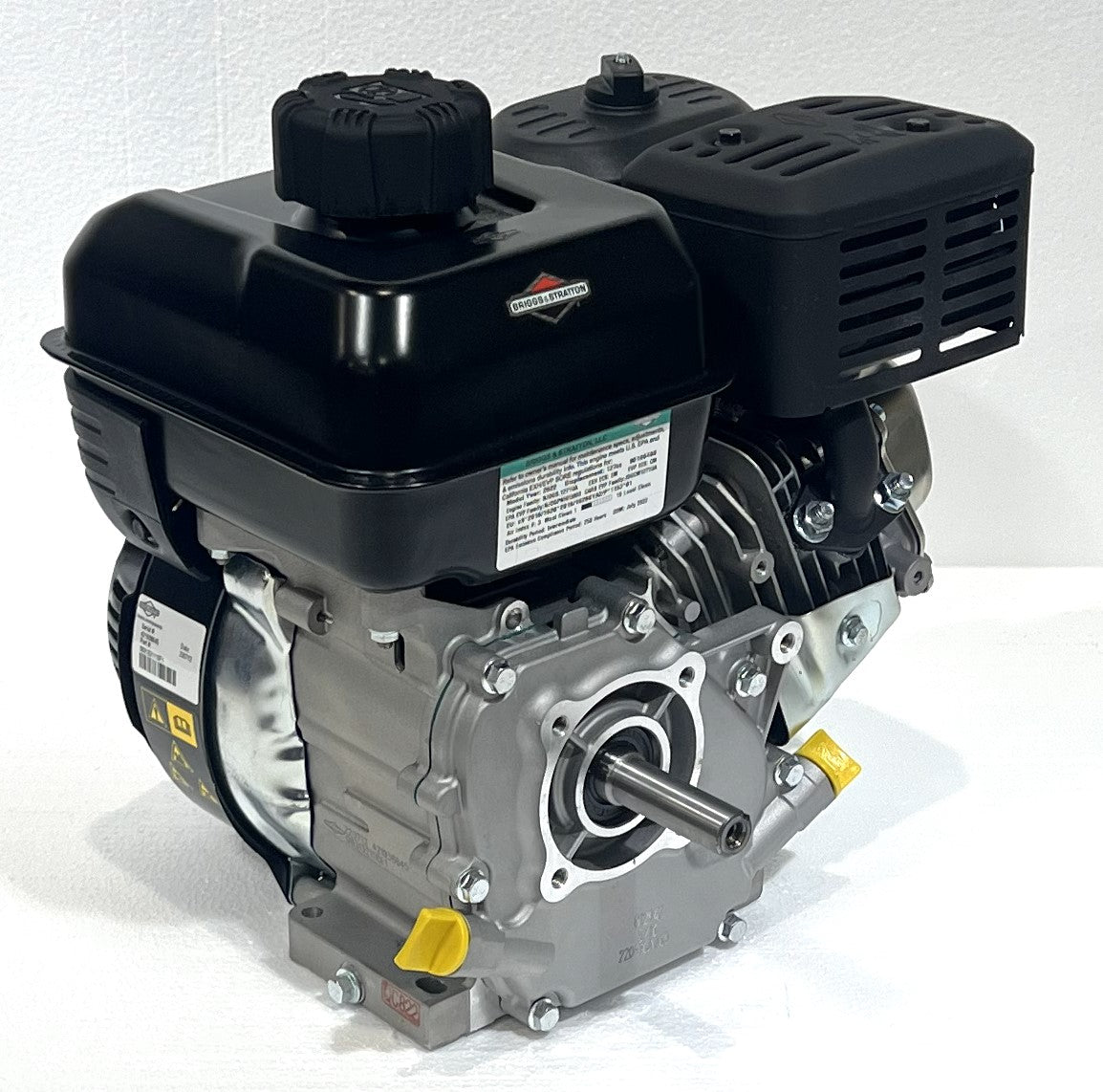

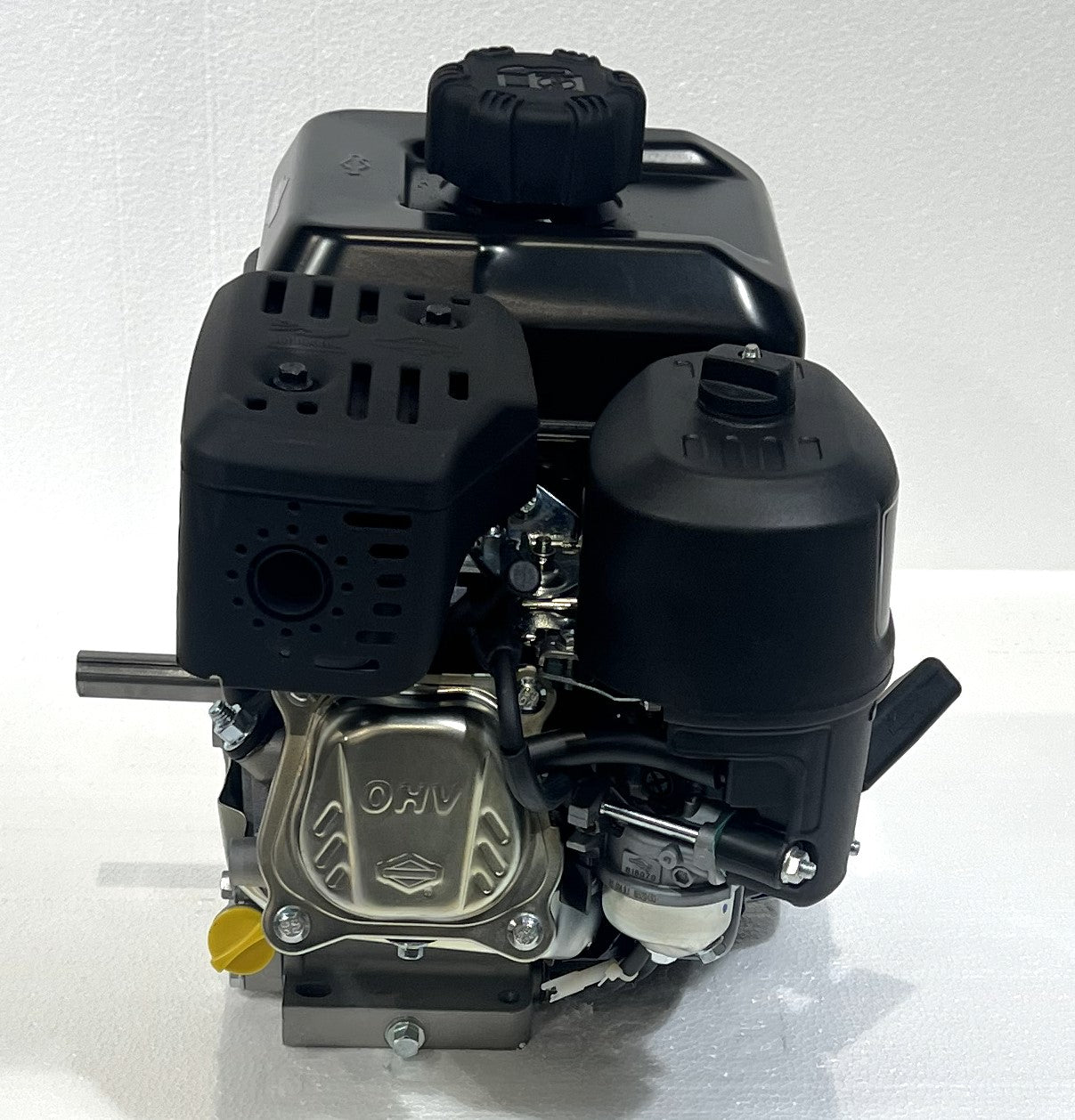

Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
Roll over image to zoom in Click on image to zoom
Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110

Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110

Briggs & StrattonSKU: 83132-1110
Price:
$299.95
Stock:
In stock (330 units), ready to be shipped

Description

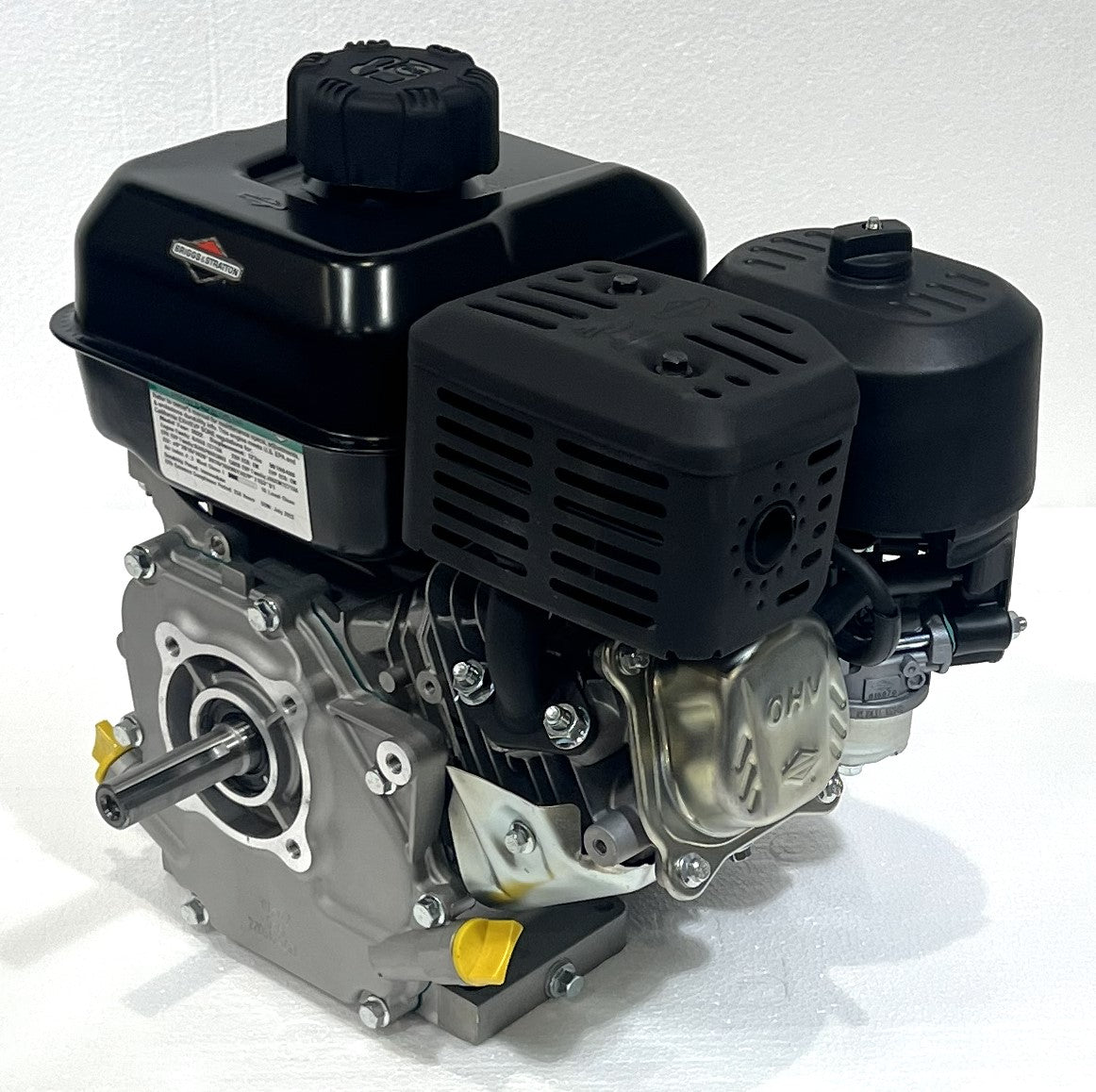

Briggs and Stratton 3.5hp XR Series Engine 127cc OHV 3/4" x 2-27/64" #83132-1110
BRIGGS AND STRATTON
MODEL NUMBER:
 83132-1110
POWER OUTPUT:
 5.5 Torque Power (Replaces 3.5hp-4hp engines)
SHAFT MOUNTING:
 Horizontal Shaft , OHV
SHAFT SIZE:
(Diameter x Length)
3/4" x 2-27/64"
STARTER TYPE:
 Recoil Starter
APPLICATION(S):
 Universal replacement engine for tillers, sprayers, blowers, edgers, etc.
WEIGHT:
 29 LBS
WARRANTY:
 2 Years Consumer - 1 Year Commercial
NOTES/FEATURES:
Features Benefits

Overhead Valve Design (OHV)

Runs cooler and cleaner delivering more power, smoother operation, longer engine life, and improved fuel economy

Compact and Dependable Power

Excellent performance for mid-duty utility applications

Dura-Lube Splash Lubrication System

Gear driven system continuously supplies oil to all internal parts

Automotive-Style paper filter

Protects engine from dirt to extend engine life

Cast Iron Cylinder Sleeve

Withstands wear and abuse while providing improved oil control

Dual Ball Bearings

Reduces wear for longer life

2.0 Quart Fuel Tank

For long run time
083132-1110-F1

Engine Specifications

Engine Fuel Gasoline
Configuration Horizontal
Cylinders One
SKU 083132-1110-F1
Air Cleaner AIR CLEANER, DUAL ELEMENT OVAL
Bearings BEARINGS, BALL MAG
Bore Type Sleevebo
Casing Clamps CASING CLAMP & SCREW INSTALLE
Controls Groups CONTROL GROUP 2, UTILIT
Cylinder Head CYLINDER, ALUMINUM W/C.I.SLEEVE
Deflectors DEFLECTORS, WITHOUT
Dipsticks DIPSTICK, LOW MOUNT,
Oil Drain OIL DRAIN, DUAL
Flywheel FLYWHEEL, HVY, CAST IRON
Exhaust MUFFLER, LO-TONE INSTALLED
Spark Plug SPARK PLUG, RESISTOR
Starting System STARTER, REWIND POSITION - 10:00 O'CLOC
Model/Type/Trim 083132-1110-F1
Air Cleaner Dual Element
Carburetor Manual Choke
Controls Manual Friction-Variable Speed
Crankshaft Straight 3/4" Dia - 2.420" PTO
Crankshaft Details 3/16" Keyway, 5/16-24 D&T
Emissions Certification EPA EXH, EPA EVAP,EU
Engine Base SAE Mounting
Engine Package XR550
Engine Sold In USA (49), EU, UK
Engine Speed 3600 +/- 0100 RPM - No Load
Flywheel Heavy - Cast Iron
Fuel Cap Black CIC
Fuel Shutoff Installed
Fuel Tank 2.0L - Metal
Label Power 3.5 HP Rewind Label
Muffler Guard Stamped
Oil Dipstick Low Mount Dual
Oil Drain Dual
Rewind Position 10:00
Spark Plug Boot Extended
