Description

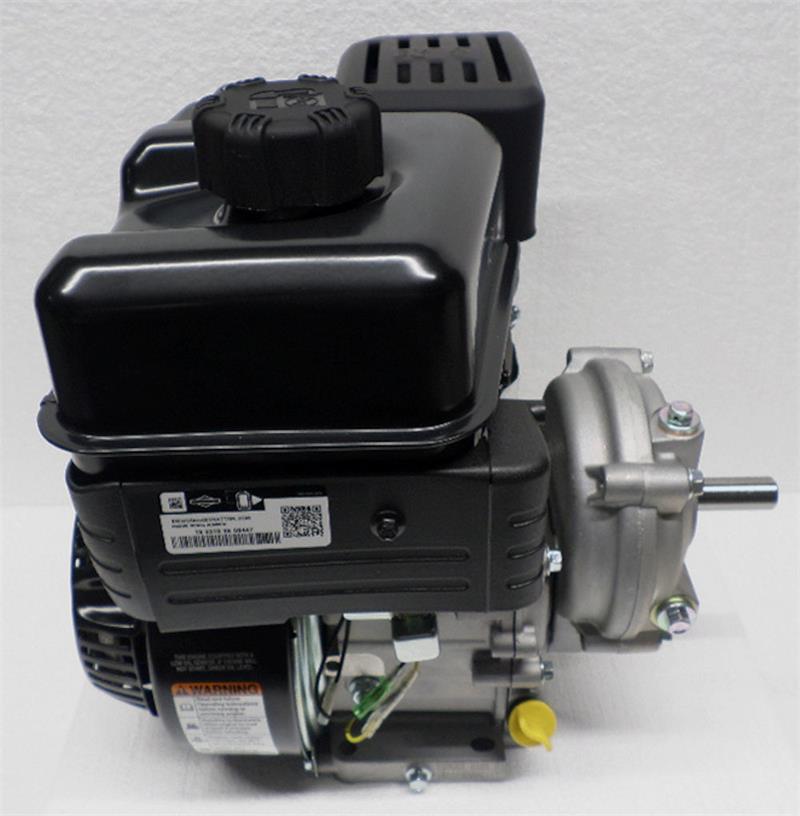

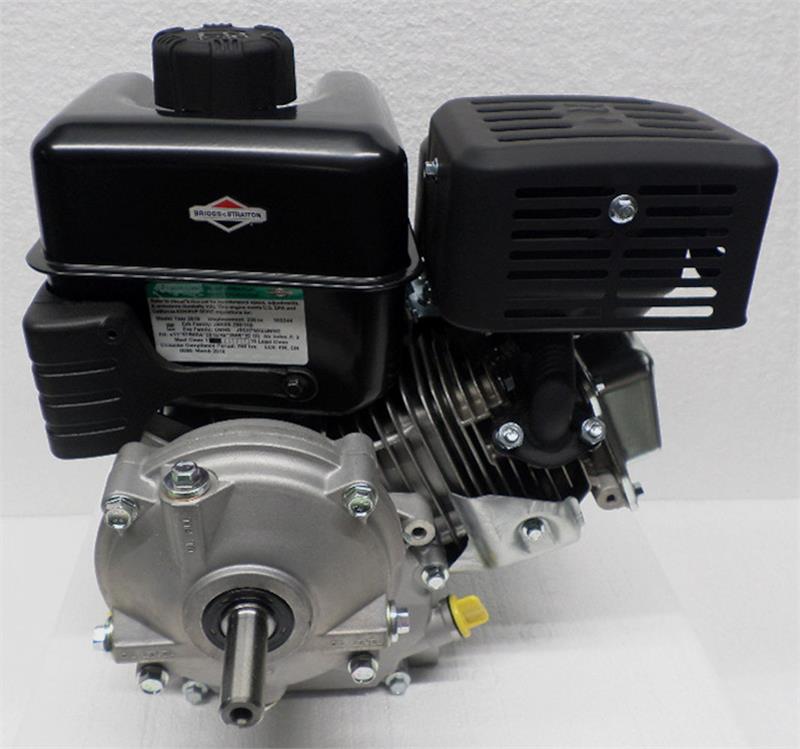

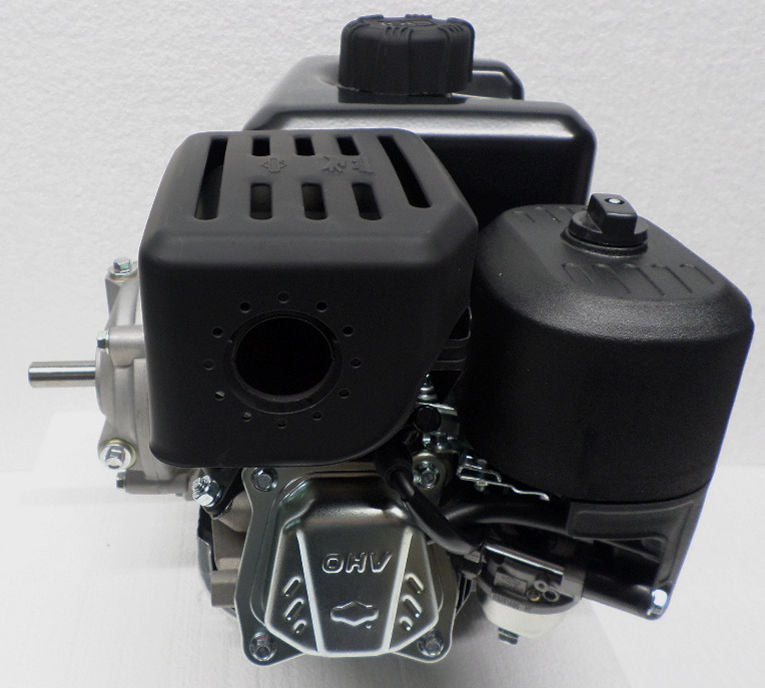

Briggs and Stratton Horizontal Engine 9.00 TP 6:1 Gear Reduction #130G52-0182
9.00 TP Briggs and Stratton OHV
6:1 Gear Reduction
6:1 Gear Reduction
Recoil Start
2 Year Residential Warranty
Model 130G52-0182
46 lbs.
Technical Specifications
| Model Series | 130G |
| Power Lbs/Ft of Torque | 9.5 |
| Engine Series | 950 |
| Displacement | 208 |
| Oil Capacity | 20 oz (0.6 l) |
| Valve Configuration | OHV |
| Flywheel Torque | 65 lb/ft (88.0 Nm) |
| Governor Arm Torque | 40 lb/in (4.5 Nm) |
| Carb Mount | 40 lb/in (4.5 Nm) |
| Plug Gap | 0.03 in (0.75 mm) |
| Intake Valve | .004-.006 in (.10-.15 mm) |
| Exhaust Valve | .006-.008 in (.15-.20 mm) |
| Idle Speed | 1750 |
