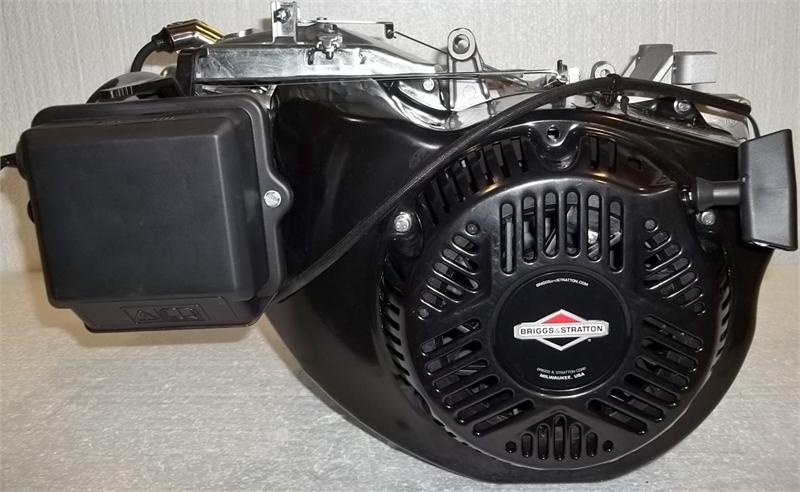

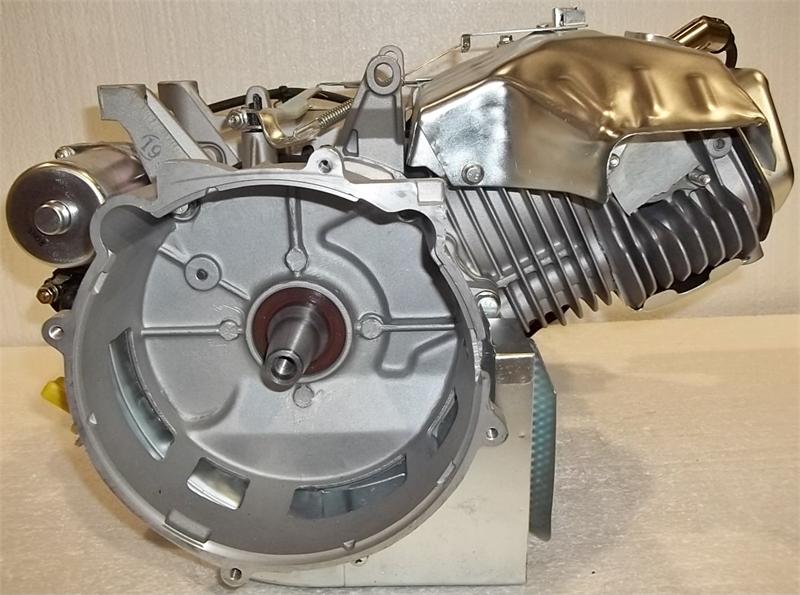

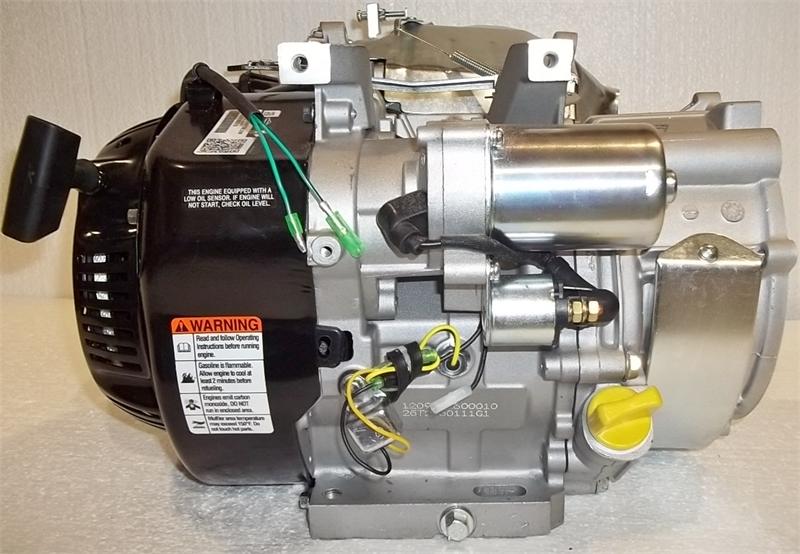

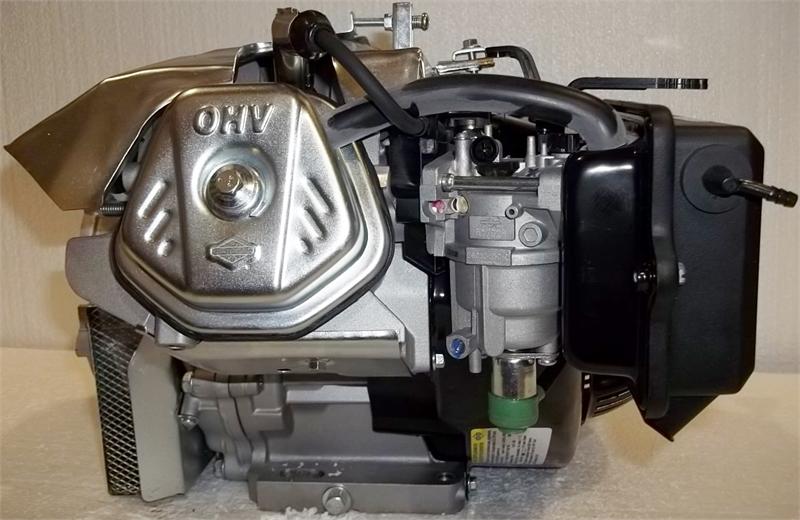

Briggs Horizontal Engine 21.00 TP ES 4-11/32" Tapered Shaft #25T235-0111

Briggs & StrattonSKU: 25T235-0111

Price:
Sale price$495.00
Stock:
Only 4 units left

Description

Briggs & Stratton 2100 Series


MODEL NUMBER:
25T235-0111

POWER OUTPUT:
21.00 Torque Power

SHAFT MOUNTING:
Horizontal Shaft

SHAFT SIZE: (D x L)
4-11/32" tapered shaft, tapped 5/16"

STARTER TYPE:
Electric Starter w/ recoil auxiliary

APPLICATION(S):
Generator replacement engine

WEIGHT:
75 lbs

REPLACES:
Generator replacement engine 30470, 30471, Troy Bilt 7000 watt generator 30477

WARRANTY:
2 Years Consumer / 1 Year Commercial
Engine Fuel Gasoline
Configuration Horizontal
Cylinders One
SKU 25T235-0111-G1
Top No Load Speed SET ENG NO-LOAD SPEED TO 3750 +/-100 RPM
Oil Capacity 37 fl. oz.
Air Cleaner AIR CLEANER, WITH LOW VACUUM PORT ON COVER
Bearings BEARINGS, DUAL BALL W/OIL SEAL
Bore Type Sleevebore
Bore Size 3.54
Stroke 2.6
Crank / Crankcase CRANKSHAFT NO 816804 - JIS TAPER, M10 X 1.25 TAP
Casing Clamps CASING CLAMP & SCREW INSTALLED
Controls Groups SUPPRESS AFTERFIRE ENGINE
Cylinder Head CYLINDER, ALUMINUM W/C.I.SLEEVE
Deflectors DEFLECTORS, WITHOUT
Dipsticks DIPSTICK, LOW MOUNT, OPP CARB SIDE
Oil Drain OIL FILL, OPPOSITE CARB SIDE
Flywheel FLYWHEEL, HVY EQUIP FOR ELE ST & NON-ALT
Fuel System FUEL SYSTEM, WITHOUT FUEL TANK
Governor MECHANICAL GOVERNOR
Exhaust MUFFLER, WITHOUT
Spark Plug SPARK PLUG, NON-RESISTOR
Starting System STARTER, REWIND POSITION - 2:00 O'CLOCK
