Description

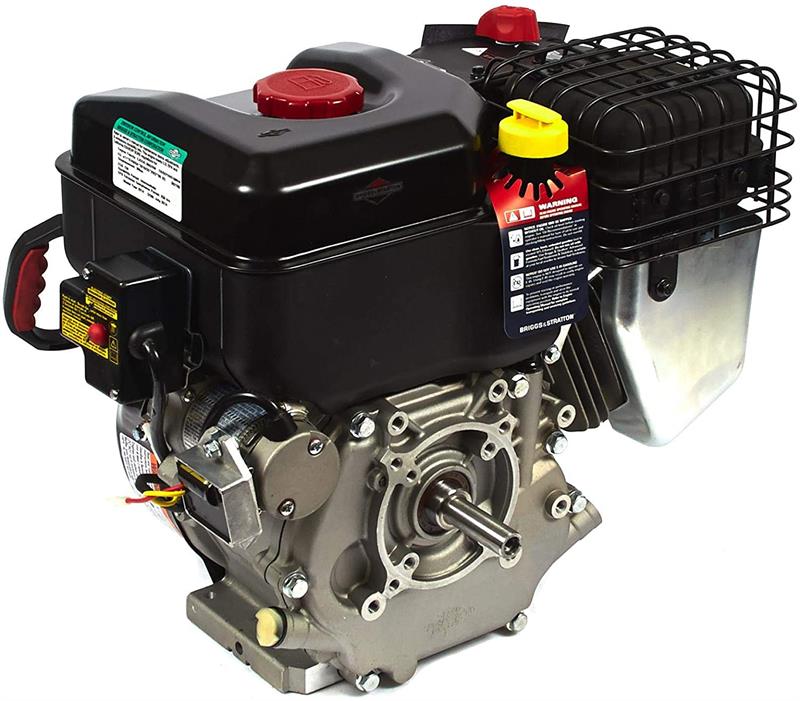

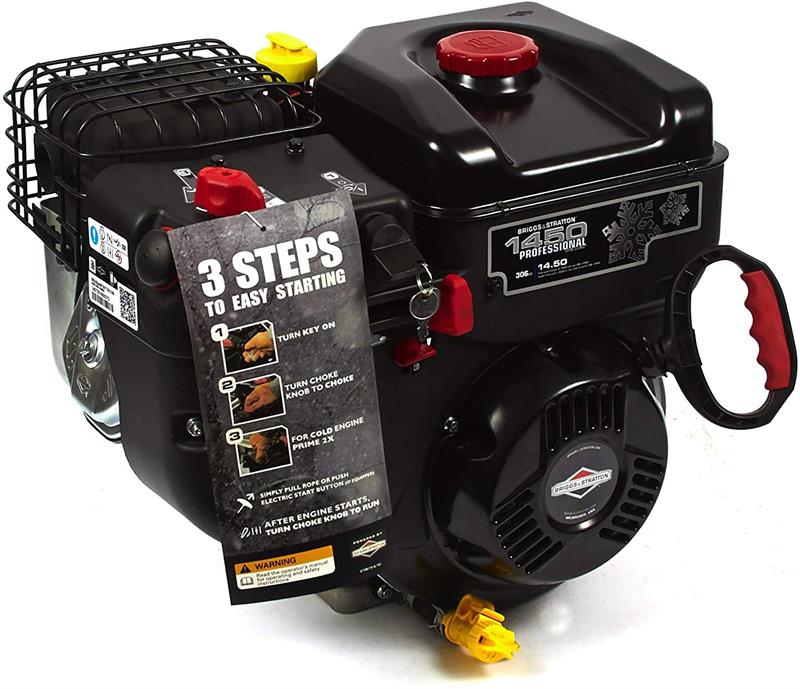

Briggs Snow Engine
14.5 Torque Power, 342cc
3/4" X 2-1/2" shaft, tapped 3/8" with 3/16" keyway.
STARTER, REWIND W/ MIT GRIP HANDLE:
2 year consumer/ 90 day commercial warranty.
Model 19J137-0002
73 lbs
19J137-0002-F1
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 19J137-0002-F1 |
| Bearings | FLANGE MOUNT BALL BEARING |
| Blower Housing | SNOW GUARD GROUP BLACK |
| Bore Type | Sleevebo |
| Bore Size | 3.228 |
| Stroke | 2.283 |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 05, SNOW |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, EXTENDED |
| Oil Drain | PLUG, TAMPER PROOF, |
| Flywheel | FLYWHEEL, HVY, CAST IRON, ELECTRIC START |
| Exhaust | MUFFLER, SUPER LO-TONE INS |
| Spark Plug | SPARK PLUG, PLATINUM |
| Starting System | STARTER, REWIND WITH MIT GRIP HANDLE |
Technical Specifications
| Model Series | 19J1 |
| Displacement | 306 |
| Oil Capacity | 35 - 39 oz (1.05 - 1.15 L) |
| Valve Configuration | L-head |
| Flywheel Torque | 65 lb/ft (88.0 Nm) |
| Governor Arm Torque | 45 lb/in (5.0 Nm) |
| Carb Mount | 85 lb/in (9.5 Nm) |
| Plug Gap | 0.03 in (0.75 mm) |
| Intake Valve | .005-.007 in (.13-.18 mm) |
| Exhaust Valve | .009-.011 in (.23-.28 mm) |
| Idle Speed | 1750 |
| Air Gap | .010-.014 in (.25-.36 mm) |
| Flywheel Puller Part | 19165 |
| Flywheel Holder Part | 19433 |
| Connecting Rod Torque | 185 lb/in (21.0 Nm) |
| Sump Torque | 140 lb/in (16.0 Nm) |
| Head Torque | 165 lb/in (18.5 Nm) |
Alternator Specifications
| Alternator | 591094 |
| Type | 9 amp reg |
| Testing RPM | 3600 |
| AC Volts | 40vac |
| DC Amps | 2-9adc Reg |
Crankshaft Specifications
| Service Part Number | 593662 |
| PTO Type | Straight |
| Woodruff Key(s) | - |
| Square PTO Key #1 | 0.188 x 1.791 x 0.106 |
| PTO Keyway #1 (mm) | 4.78 x 45.5 x 2.69 |
| Square PTO Key #2 | - |
| PTO Keyway #2 (mm) | - |
| PTO Threads | 0.375-24 UNF |
| PTO Shaft Diameter (in) | 0.75 |
| PTO Shaft Diameter (mm) | 19.05 |
| PTO Shaft Length (in) | 2.5 |
| PTO Shaft Length (mm) | 63.5 |
