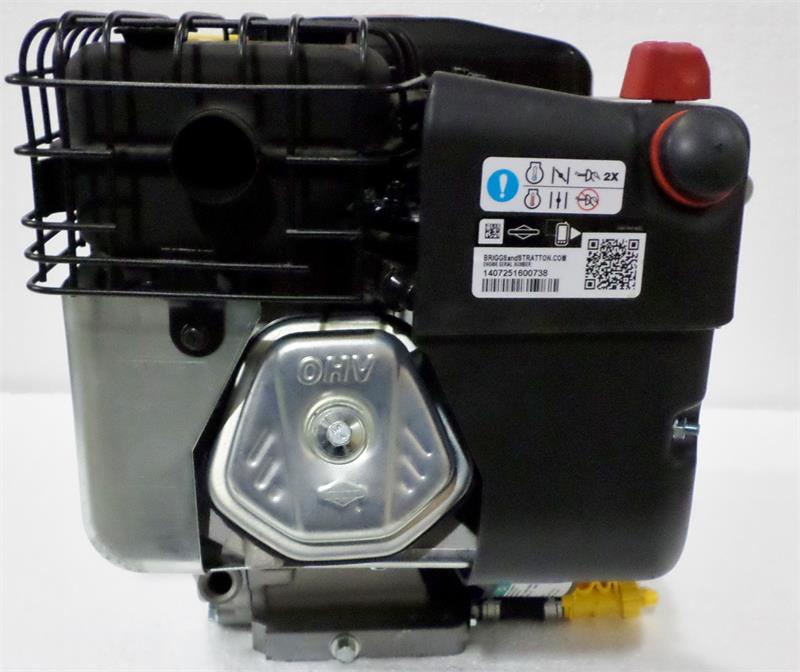

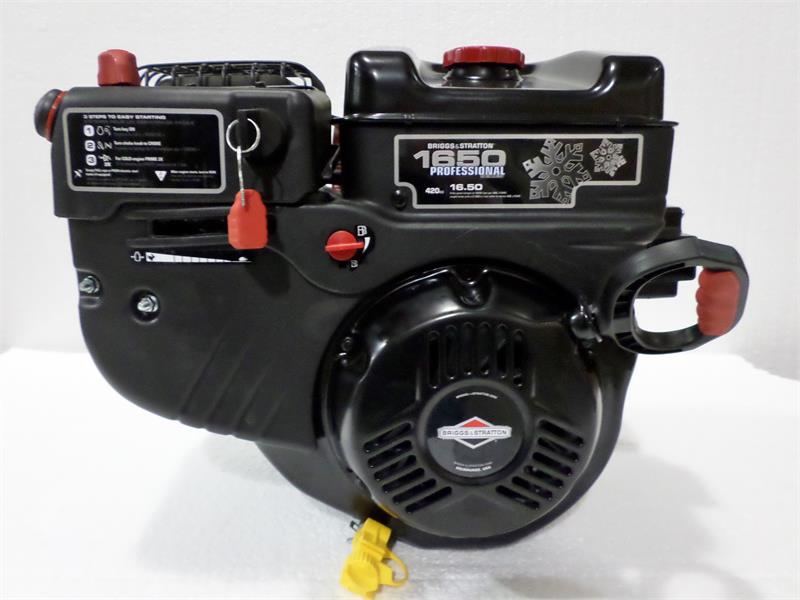

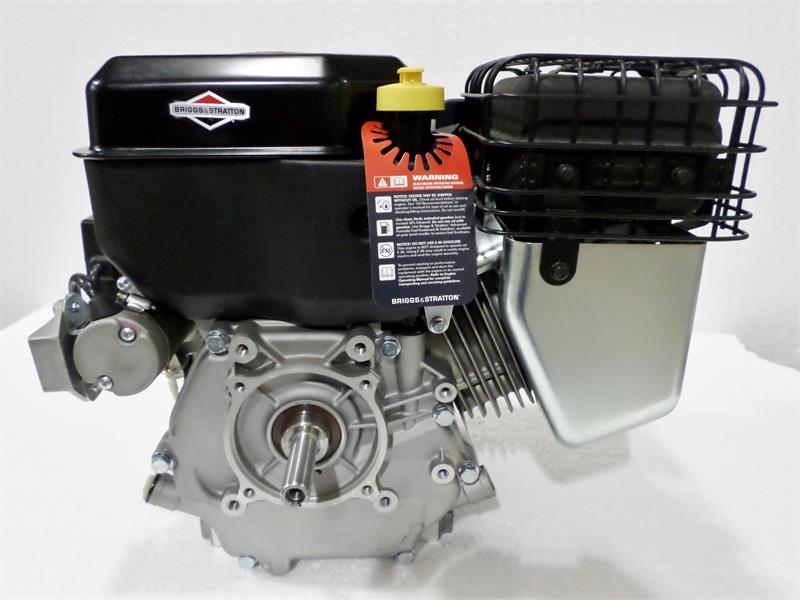

Description
 |
|
16.5 Torque Power, 420cc

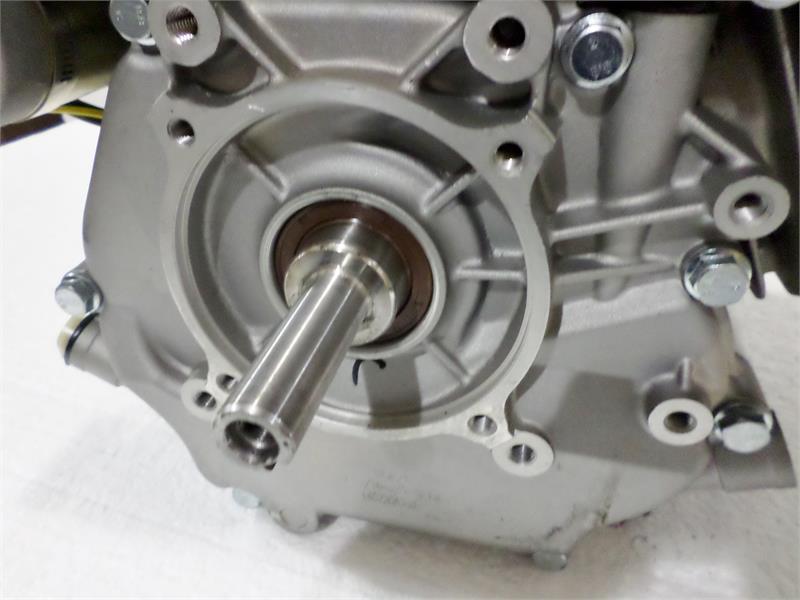

3/4" x 2-33/64" shaft, tapped 3/8" with 1/4" keyway.
Recoil Start (comes with 230v starter attached-can transfer your 120v starter or use as recoil start only)
2 year consumer/ 90 day commercial warranty.
Model 25D137-0116
73 lbs
25D137-0116-F1
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 25D137-0116-F1 |
| Bearings | FLANGE MOUNT BALL BEARING |
| Blower Housing | SNOW GUARD GROUP BLACK |
| Bore Type | Sleevebo |
| Bore Size | 3.540 |
| Stroke | 2.600 |
| Casing Clamps | CASING CLAMP & SCREW INSTALLE |
| Controls Groups | CONTROL GROUP 05, SNOW |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, EXTENDED |
| Oil Drain | PLUG, TAMPER PROOF, |
| Flywheel | FLYWHEEL, HVY, CAST IRON, ELECTRIC START |
| Exhaust | MUFFLER, SUPER LO-TONE INS |
| Spark Plug | SPARK PLUG, PLATINUM |
| Starting System | STARTER, REWIND WITH MIT GRIP HANDLE |
Technical Specifications
| Model Series | 25D1 |
| Displacement | 420 |
| Oil Capacity | 48 oz (1.4 l) |
| Valve Configuration | OHV |
| Flywheel Torque | 105 lb/ft (142.5 Nm) |
| Governor Arm Torque | 40 lb/in (4.5 Nm) |
| Carb Mount | 85 lb/in (9.5 Nm) |
| Plug Gap | 0.03 in (0.75 mm) |
| Intake Valve | .004-.006 in (.10-.15 mm) |
| Exhaust Valve | .004-.006 in (.10-.15 mm) |
| Idle Speed | 1750 |
| Air Gap | .010-.014 in (.25-.36 mm) |
| Flywheel Puller Part | 19203 |
| Flywheel Holder Part | 19433 |
| Connecting Rod Torque | 180 lb/in (20.5 Nm) |
| Sump Torque | 210 lb/in (23.7Nm) |
| Head Torque | 355 lb/in (40.0 Nm) |
Alternator Specifications
| Alternator | 591094 |
| Type | 9 amp reg |
| Testing RPM | 3600 |
| AC Volts | 40vac |
| DC Amps | 2-9adc Reg |
Crankshaft Specifications
| Service Part Number | 591097 |
| PTO Type | Straight |
| Woodruff Key(s) | - |
| Square PTO Key #1 | 0.188 x 1.791 x 0.106 |
| PTO Keyway #1 (mm) | 4.78 x 45.5 x 2.69 |
| Square PTO Key #2 | - |
| PTO Keyway #2 (mm) | - |
| PTO Threads | 0.375-24 UNF |
| PTO Shaft Diameter (in) | 0.75 |
| PTO Shaft Diameter (mm) | 19.05 |
| PTO Shaft Length (in) | - |
| PTO Shaft Length (mm) | - |
