Description

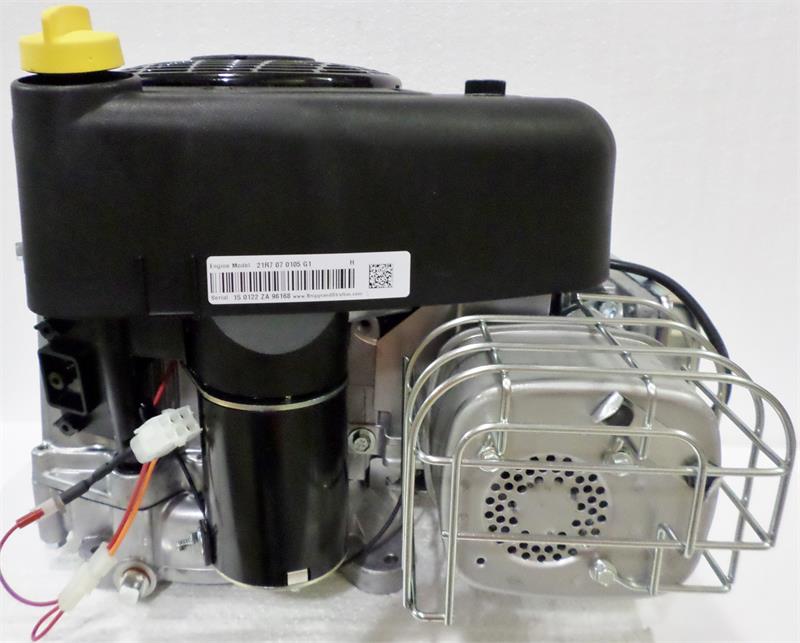

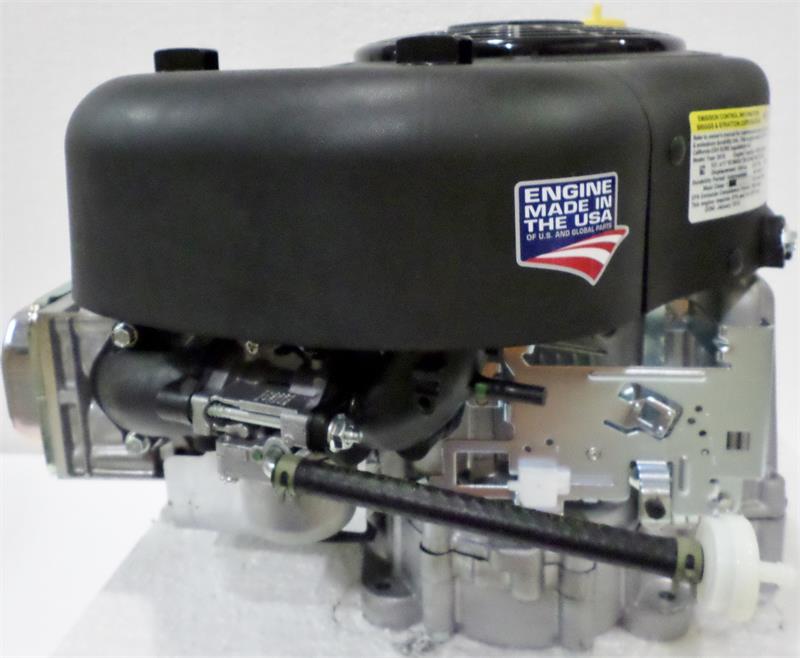

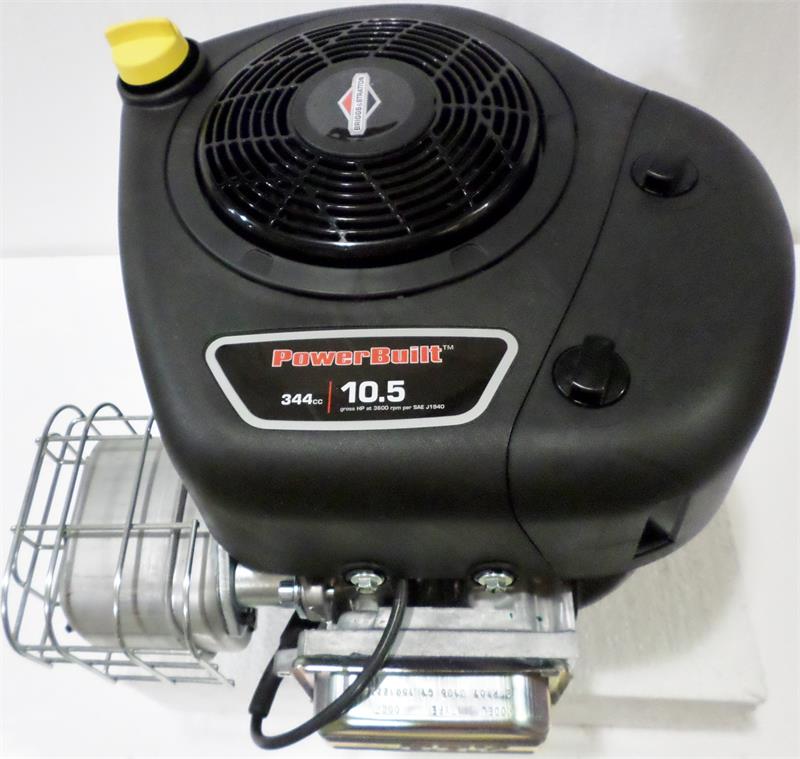

10.5 hp Intek OHV
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.
No Tank
Electric start w/ dual circuit alternator
Universal replacement engine for many riding mowers and other equipment.
2 year consumer/ 1 year commercial warranty.
Model 21R707-0098
72 lbs
Specifications
| Engine Fuel | Gasoline |
| Configuration | Vertical |
| Cylinders | One |
| SKU | 21R707-0098 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3300 +/-100 RPM |
| Gross Horsepower* | 10.50 |
| Oil Capacity | 48 fl. oz. |
| Air Cleaner | AIR CLEANER, CARTRIDGE TYPE |
| Air Cleaner Cover | AIR CLNR COV COL 290 - SATIN BLACK |
| Chg System | ALTERNATOR, DUAL CIRCUIT |
| Bearings | BEARINGS, PLAIN PTO |
| Blower Housing | TRIM RING, 290 SATIN BLACK |
| Bore Type | Sleevebore |
| Bore Size | 3.44 |
| Stroke | 2.26 |
| Intake | LOW VACUUM WITH PURGE PORT, CAPPED |
| Crank / Crankcase | CRANKSHAFT NO 793408 |
| Casing Clamps | CASING CLAMP & TORX SCREW, OPP CYL HEAD WITH 1/4" |
| Controls Groups | CONTROL GROUP 01, MODEL 17/21 |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, OPPOSITE CARB SIDE |
| Oil Drain | OIL FILL, OPPOSITE CARB SIDE |
| Misc | FUEL HOSE, LOW PERM 6 IN W/75 MIC FILTER |
| Flywheel | FLYWHEEL, LOW MASS EQUIP FOR ELEC START |
| Fuel System | FUEL SYSTEM, WITHOUT FUEL TANK |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, WITHOUT |
| Spark Plug | SPARK PLUG, EMC "Q" |
| Starting System | STARTER, 12 VOLT REGULAR |
