Briggs & Stratton 14.5 TP 306cc OHV Engine 3/4" x 2-21/32" #19N132-0051

Briggs & StrattonSKU: 19N132-0051

Price:
Sale price$895.00
Stock:
Only 1 unit left

Description

More power. More durability. Max performance. With Overhead Valve (OHV) technology for cleaner, cooler operation, plus our DuraLube Splash Lubrication System for greater precision,  the 1450 Series delivers exactly what you need to meet increasing challenges.

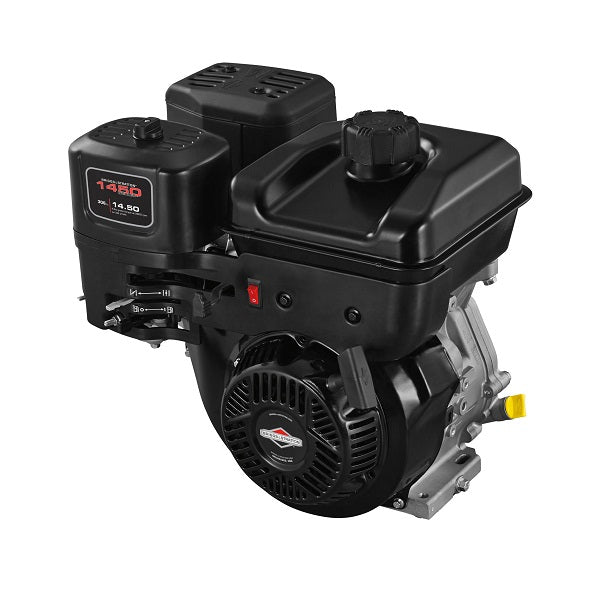

14.5tp Briggs & Stratton OHV Engine
Replaces 10hp Series
3/4" x 2-21/32" shaft, tapped 3/8" with keyway.
Ball bearing PTO, cast iron sleeve.
2 year consumer/ 1 year commercial warranty.
Model 19N132-0051
69 lbs


Specifications


Engine Fuel Gasoline
Configuration Horizontal
Cylinders One
SKU 19N132-0051-F1
Top No Load Speed SET IDLE SPEED 1750 +-100 RPM
Oil Capacity 37.12 fl. oz.
Air Cleaner AIR CLEANER, CARTRIDGE W/PRE FILTER
Bearings BEARINGS, DUAL BALL W/OIL SEAL
Blower Housing BLOWER HOUSING 290 SATIN BLACK
Bore Type Sleevebore
Bore Size 3.22
Stroke 2.28
Crank / Crankcase CRANKSHAFT 817405 3/4" DIA STR 2.51" 3/16" KEY 3/8
Casing Clamps CASING CLAMP & SCREW INSTALLED
Controls Groups CONTROL GROUP 5, UTILITY
Cylinder Head CYLINDER, ALUMINUM W/C.I.SLEEVE
Deflectors DEFLECTOR, SIDE OUT LOOSE (METRIC SCR)
Dipsticks DIPSTICK, LOW MOUNT, OPP CARB SIDE
Oil Drain OIL FILL, DUAL
Flywheel FLYWHEEL, HVY, CAST IRON, REW ONLY
Governor MECHANICAL GOVERNOR
Exhaust MUFFLER, LO-TONE, TUBE OUTLET W/ WIRE GUARD INSTAL
Spark Plug SPARK PLUG, NON-RESISTOR
Starting System STARTER, REWIND POSITION - 10:00 O'CLOCK
