Description

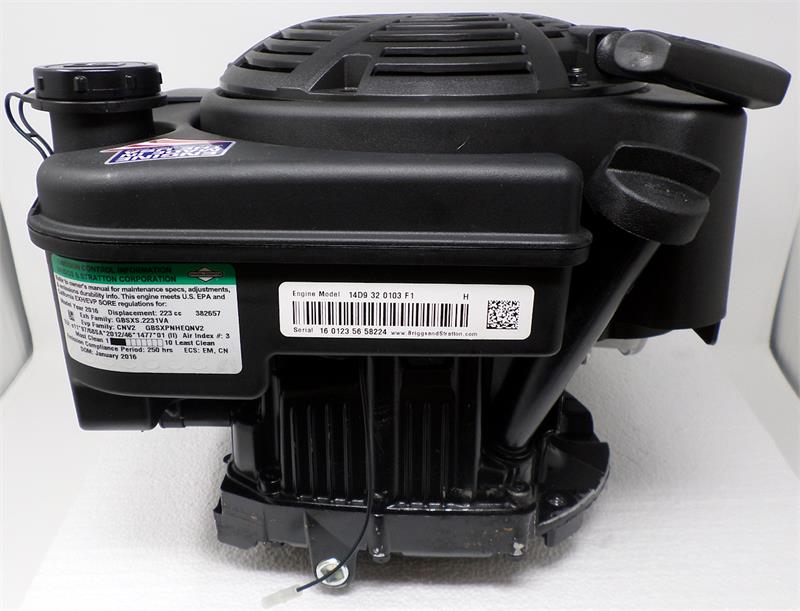

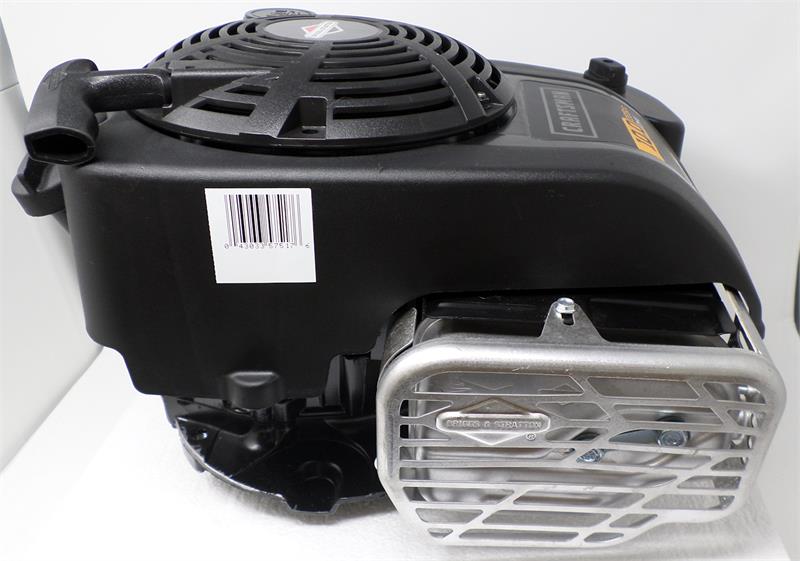

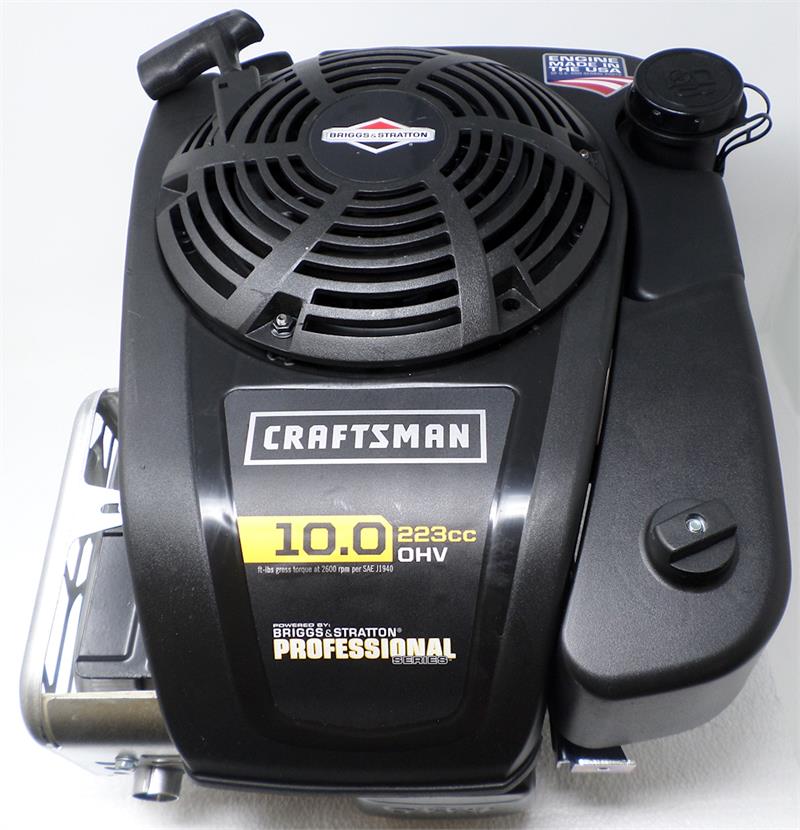

Briggs & Stratton 223cc Vertical Engine 10TP 25mm x 3-5/32" HF #14D932-0103
Note: the oil drain plug on the mounting surface. May interfere with mounting surface
Professional Series Engine

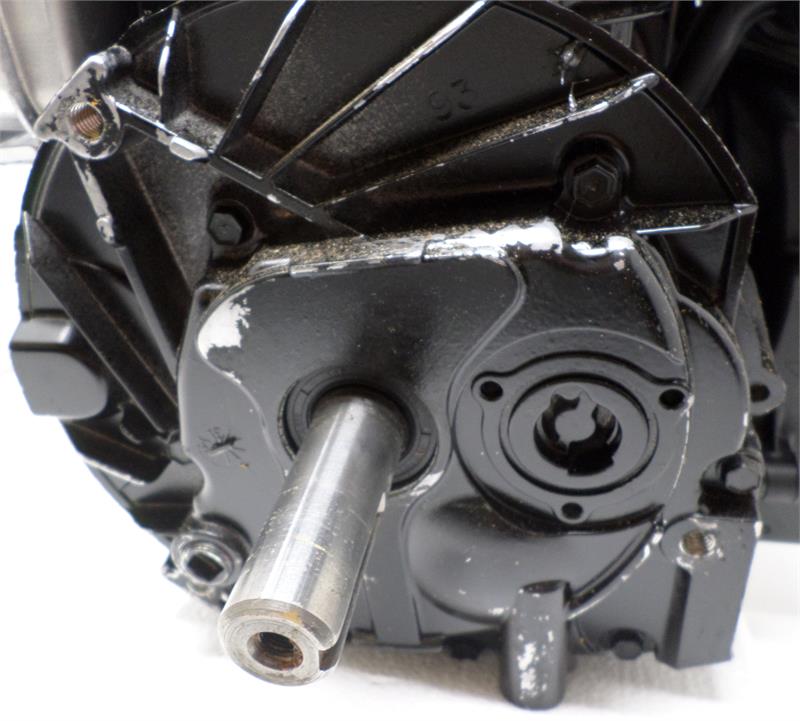

25mm x 3-5/32" shaft, tapped 3/8-24 , 1/4" keyway
Fixed speed throttle design.
Heavy Flywheel Engine
2600 rpm top speed setting.
Model 14D932-0103.
| Engine Fuel | Gasoline |
| Configuration | Vertical |
| Cylinders | One |
| SKU | 14D932-0103-F1 |
| Air Cleaner | AIR CLEANER, PAPER ELEMENT OVAL |
| Bearings | BEARINGS, PLAIN MAG |
| Blower Housing | REWIND COVER, LS, 290 SATIN BLACK |
| Bore Type | Koolbore |
| Bore Size | 2.913 |
| Stroke | 2.040 |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 62, QUANT |
| Cylinder Head | CYLINDER, ALUMINUM |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, OPPOSITE CA |
| Oil Drain | OIL FILL, OPPOSITE |
| Flywheel | FLYWHEEL, HVY, CAST IRON, REW ONLY |
| Exhaust | MUFFLER, PERFORMANCE W/TUB |
| Spark Plug | SPARK PLUG, SUREFIRE |
| Starting System | STARTER, REWIND POSITION - 5:30 O'CLOCK |
