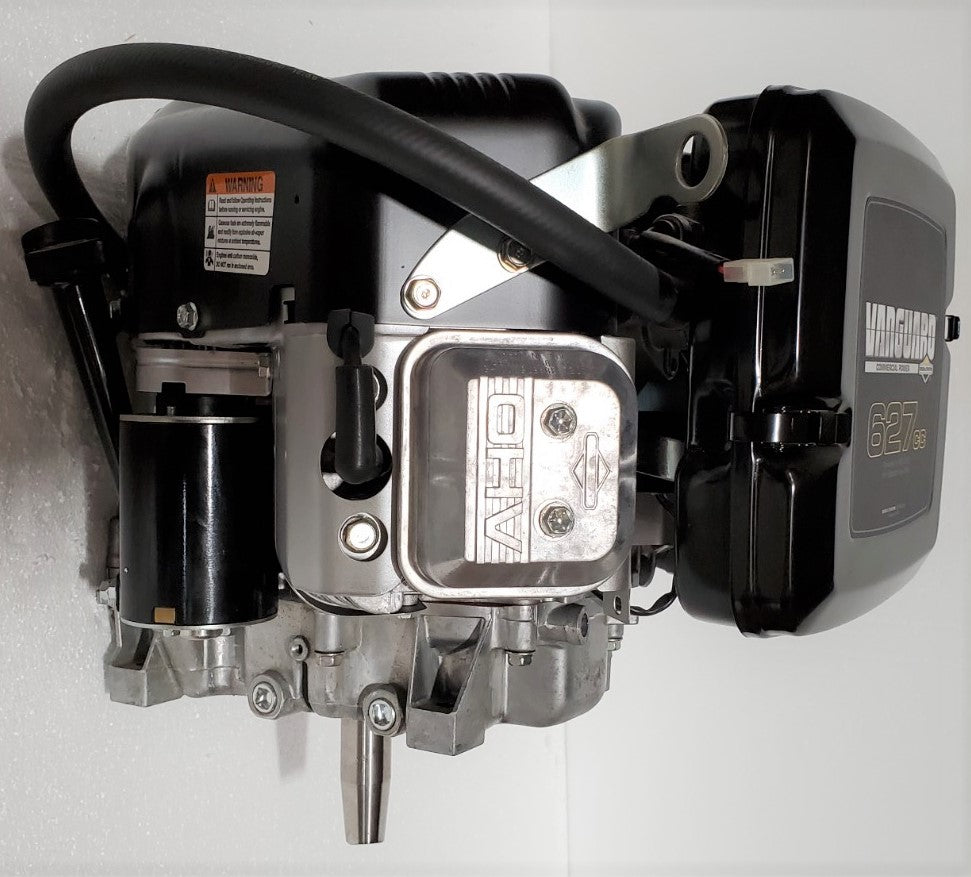

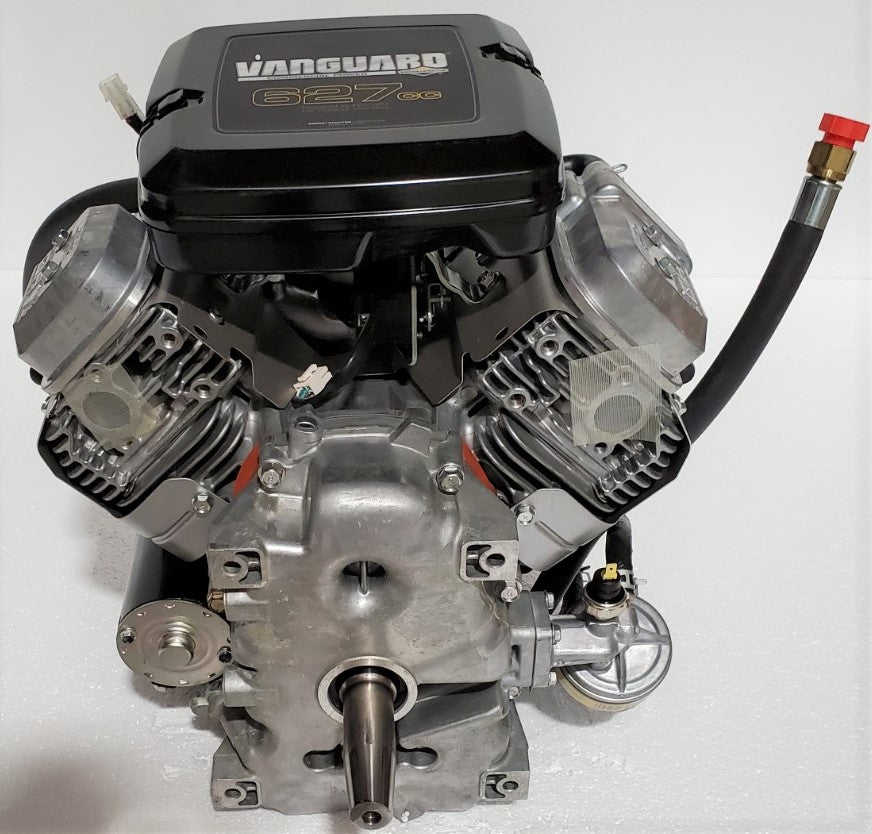

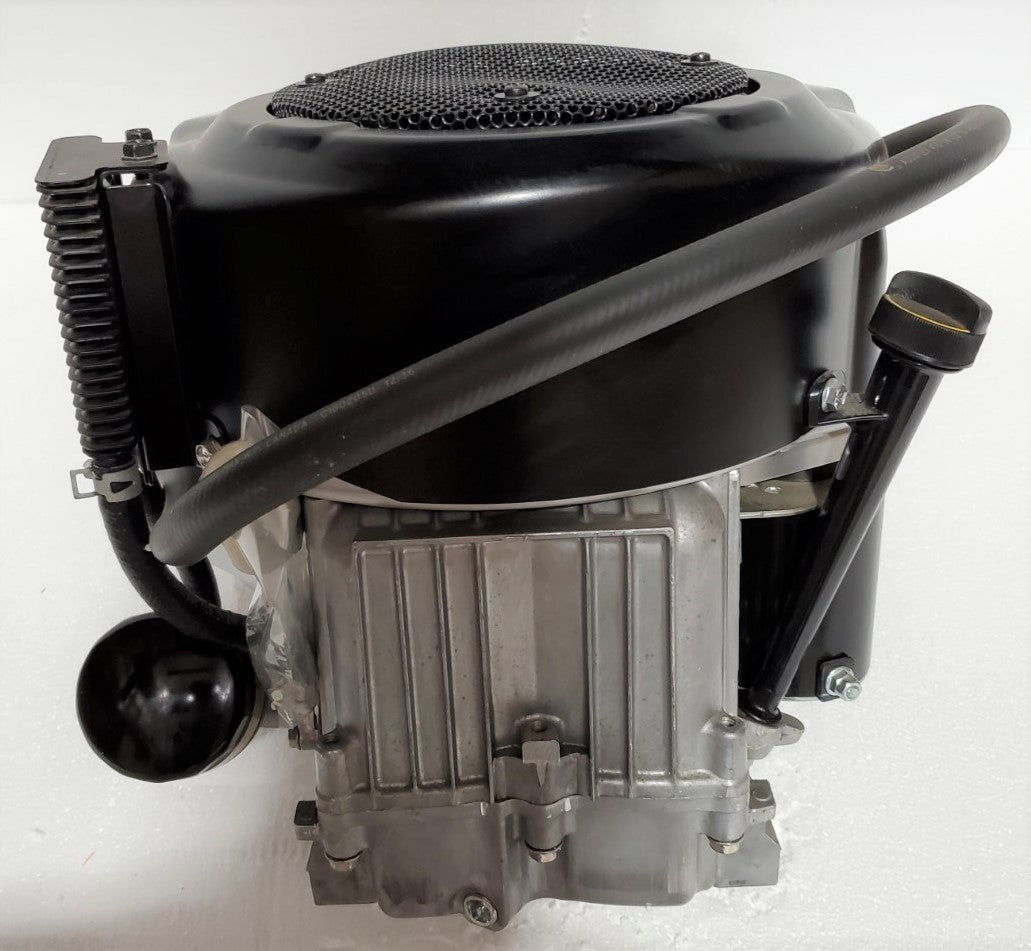

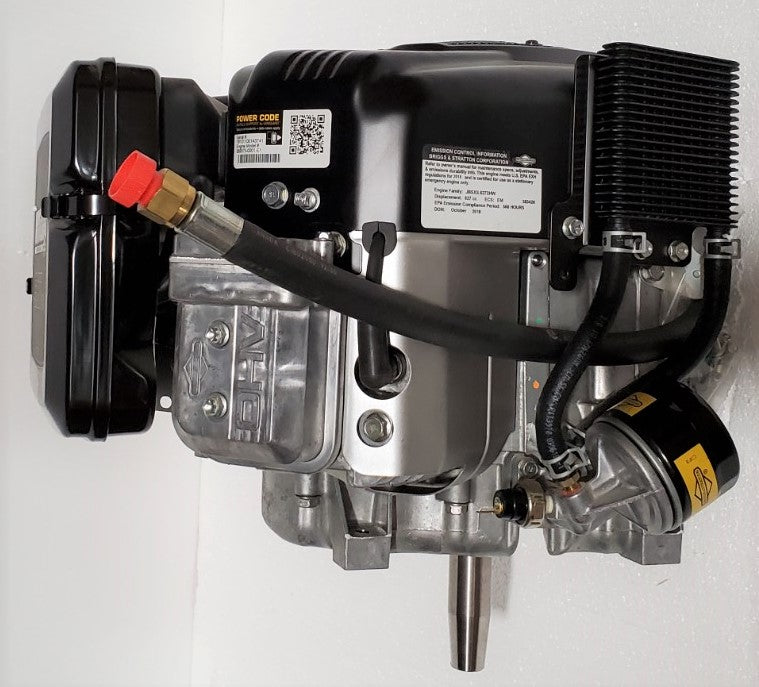

Briggs & Stratton 627cc LP/NG 12kw Watt Standby Generator Engine #389575-0001

Save 14%
Briggs & StrattonSKU: 389575-0001

Price:
Sale price$1,199.00 Regular price$1,399.00
Stock:
In stock (12 units), ready to be shipped

Description

627cc Briggs Vanguard OHV
Briggs and Stratton Standby Generator Replacement Engine
  • LP/NG Setup
  • Tapered Shaft
  • No Keyway
  • No Tank
  • No Muffler
  • 12 Volt Electric Start
  • Cast Iron Sleeves
  • Model 389575-0001
  • 90 LBS


  389575-0001-E1

Engine Specifications


Engine Fuel Gaseous
Configuration Vertical
Cylinders Two
SKU 389575-0001-E1
Air Cleaner AIR CLEANER, PAPER ELEMENT (UL
Air Cleaner Cover AIR CLNR COV COL 290 - SATIN B
Bearings BEARINGS, STEEL BACKED ALUM MA
Blower Housing NON-DUCTED AIR FLOW
Bore Type Sleevebo
Bore Size 2.970
Stroke 2.750
Casing Clamps CASING CLAMP & SCREW, WITHOUT
Cylinder Head CYLINDER, TWIN W/C.I.SLEEVE
Deflectors DEFLECTORS, WITHOUT
Dipsticks DIPSTICK, IN CRANKCAS
Oil Drain OIL DRAIN, TRI-DRAI
Flywheel FLYWHEEL, HVY EQUIP FOR ELE ST & NON-ALT
Fuel System FUEL SYSTEM, WITHOUT FUE
Exhaust MUFFLER, WITHOUT
Spark Plug SPARK PLUG, RESISTOR
Starting System STARTER, 12 VOLT INDUSTRIAL

Technical Specifications


Model Series 3895
Displacement 627
Oil Capacity 48 oz (1.4 l)
Valve Configuration OHV
Flywheel Torque 125 lb/ft (169.5 Nm)
Governor Arm Torque 115 lb/in (13.0 Nm)
Carb Mount 65 lb/in (7.5 Nm)
Plug Gap 0.03 in (0.75 mm)
Intake Valve .004-.006 in (.10-.15 mm)
Exhaust Valve .004-.006 in (.10-.15 mm)
Idle Speed 1750
Air Gap .008-.012 in (.20-.30 mm)
Flywheel Puller Part 19203
Flywheel Holder Part 19433
Connecting Rod Torque 115 lb/in (13.0 Nm)
Sump Torque 150 lb/in (17.0 Nm)
Head Torque 165 lb/in (18.5 Nm)

Crankshaft Specifications


Service Part Number 846652
PTO Type Tapered
Woodruff Key(s) -
Square PTO Key #1 -
PTO Keyway #1 (mm) -
Square PTO Key #2 -
PTO Keyway #2 (mm) -
PTO Threads 0.313-24 UNF
PTO Shaft Diameter (in) 1.193
PTO Shaft Diameter (mm) 30.3
PTO Shaft Length (in) 3.425
PTO Shaft Length (mm) 87
