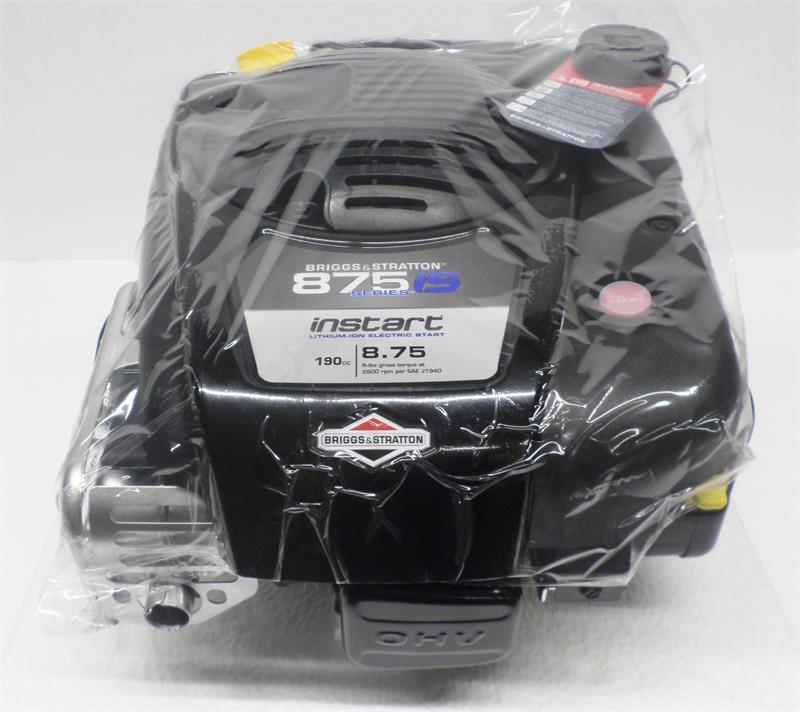

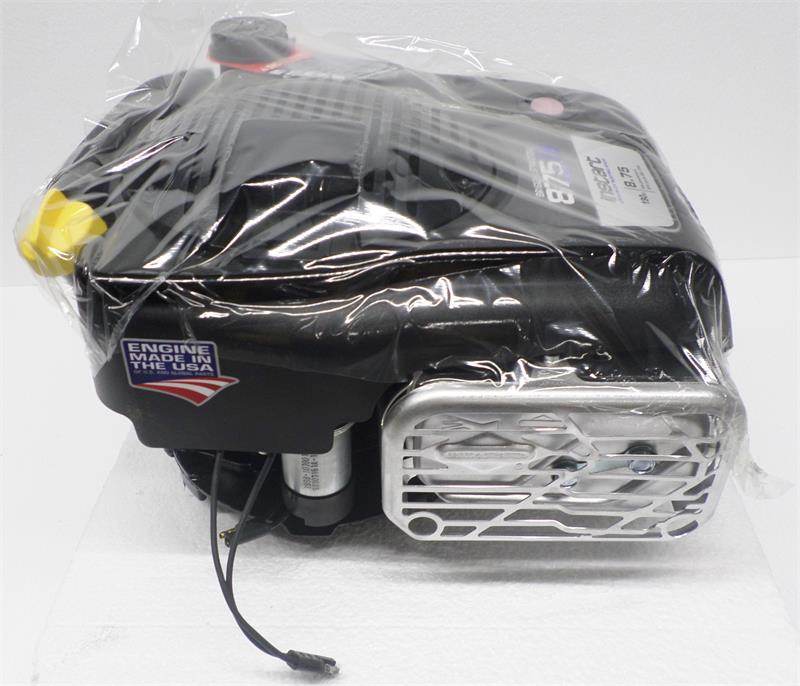

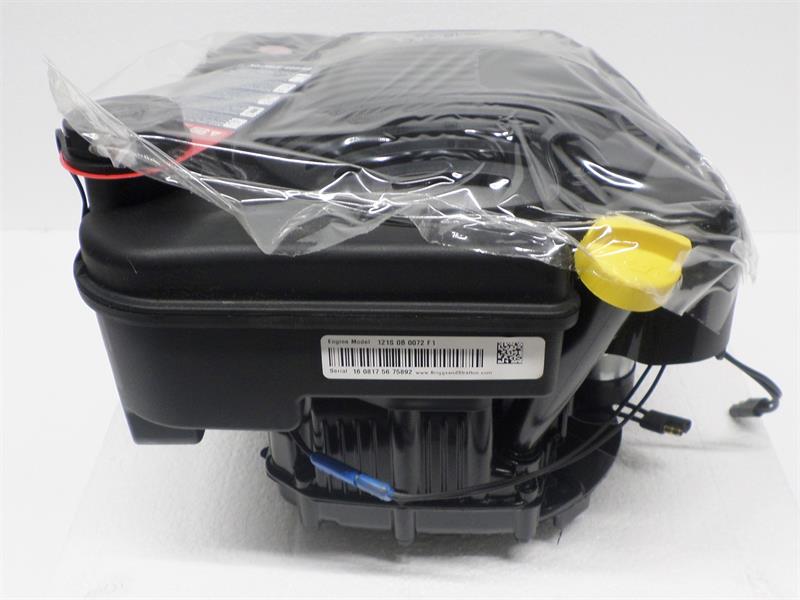

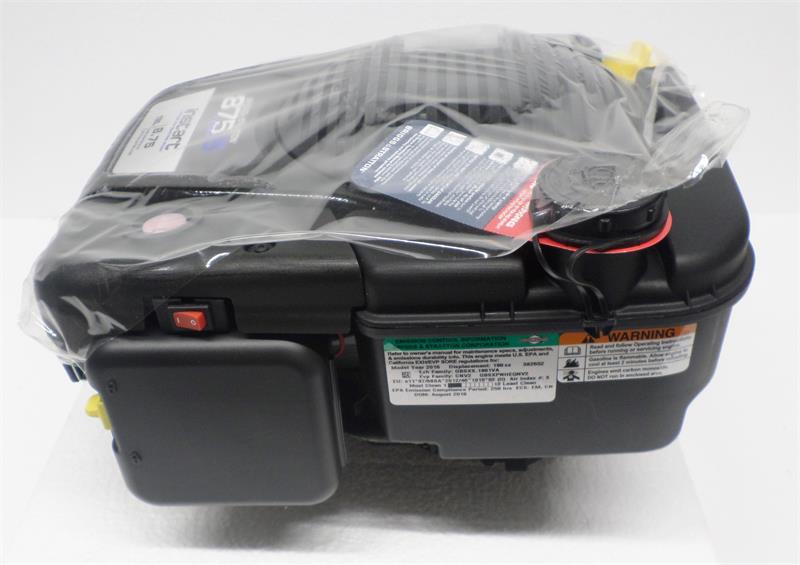

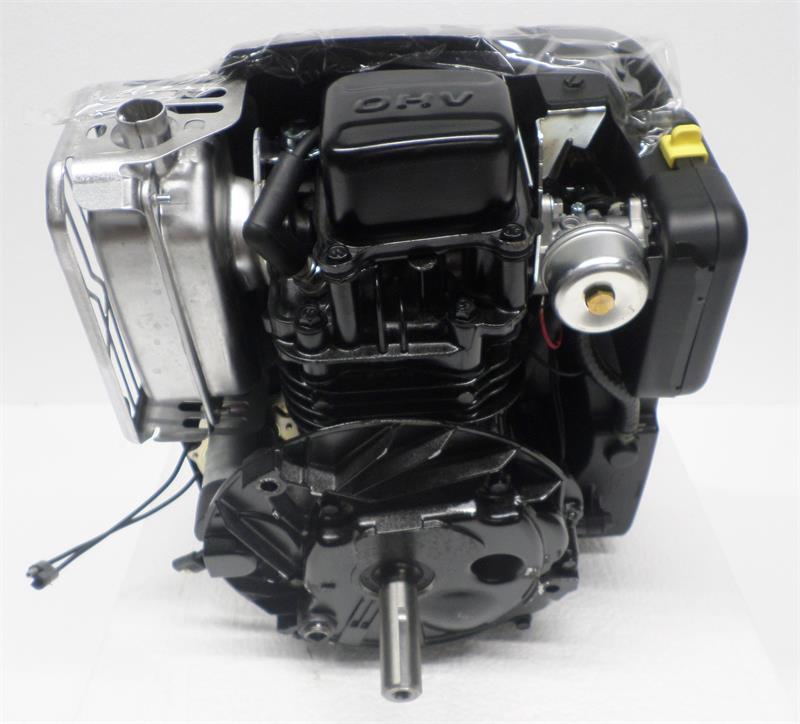

Briggs & Stratton 8.75 TP Professional Series Engine 7/8 x 3-5/32" InStart ES HF #121S0B-0072

Save 4%
Briggs & StrattonSKU: 121S0B-0072

Price:
Sale price$429.00 Regular price$449.00
Stock:
Only 3 units left

Description




Briggs & Stratton Professional Series


MODEL NUMBER:
121S0B-0072

POWER OUTPUT:
8.75 Torque Power

SHAFT MOUNTING:
Vertical Shaft

SHAFT SIZE: (D x L)
7/8 x 3-5/32"     Tapped 3/8-24

STARTER TYPE:
Instart Electric Start (no recoil auxiliary) Battery and Charger are not included

APPLICATION(S):
Non-compliance engine, heavy flywheel.
Universal replacement engine for log splitters, pressure washers and other types
of engines that do not need a flywheel brake, or that have a mower blade attached.

WEIGHT:
33 Lbs

REPLACES:


WARRANTY:
2 Years Consumer / 1 Year Commercial



121S0B-0072-F1

Engine Specifications


Engine Fuel Gasoline
Configuration Vertical
Cylinders One
SKU 121S0B-0072-F1
Top No Load Speed SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM
Gross Horsepower* 875.00
Air Cleaner AIR CLEANER, FOAM ELEMENT PANEL
Air Cleaner Cover AIR CLNR COVER, 290 SATIN BLACK
Bearings BEARINGS, PLAIN PTO
Blower Housing COVER, XIS 290 SATIN BLACK
Bore Type Koolbore
Bore Size 2.688
Stroke 2.04
Casing Clamps CASING CLAMP & SCREW, WITHOUT
Controls Groups CONTROL GROUP 81, MODEL QUANTUMS
Cylinder Head CYLINDER, ALUMINUM
Deflectors DEFLECTORS, 90 DEG TUBULAR LOOSE
Dipsticks DIPSTICK, OPPOSITE CARB SIDE
Oil Drain OIL FILL, OPPOSITE CARB SIDE
Misc FUEL HOSE, LOW PERM VERSION
Flywheel FLYWHEEL, HVY, ZINC, REW/ELEC 0.5 AMP
Governor METAL GOVERNOR CUP & TIMING GEAR
Exhaust MUFFLER, PERFORMANCE W/TUBE OUTLET INST (SMALL)
Spark Plug WIRING HARNESS, ELE START W/O ALT WIRE
Starting System STARTER, WITHOUT REWIND
