Description

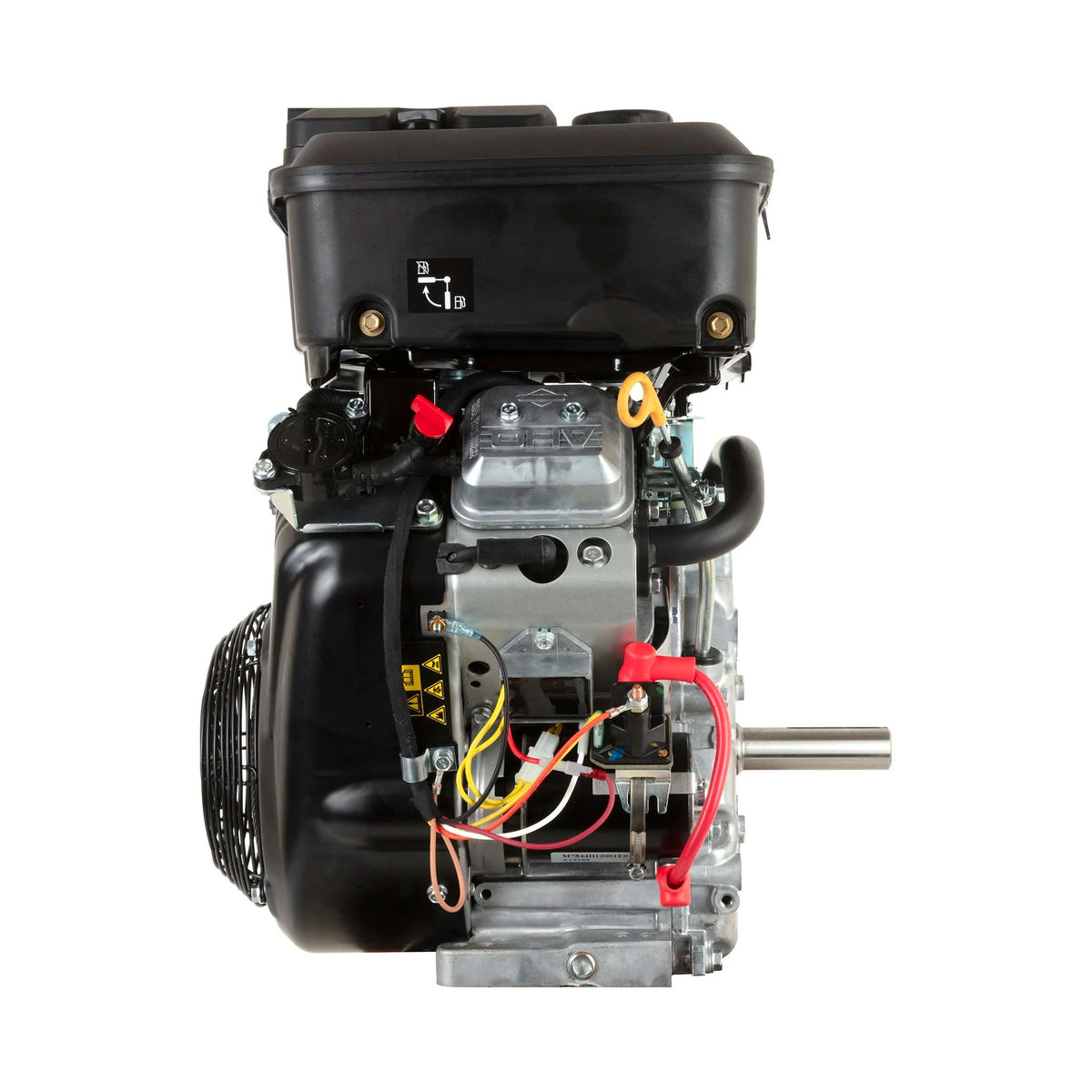

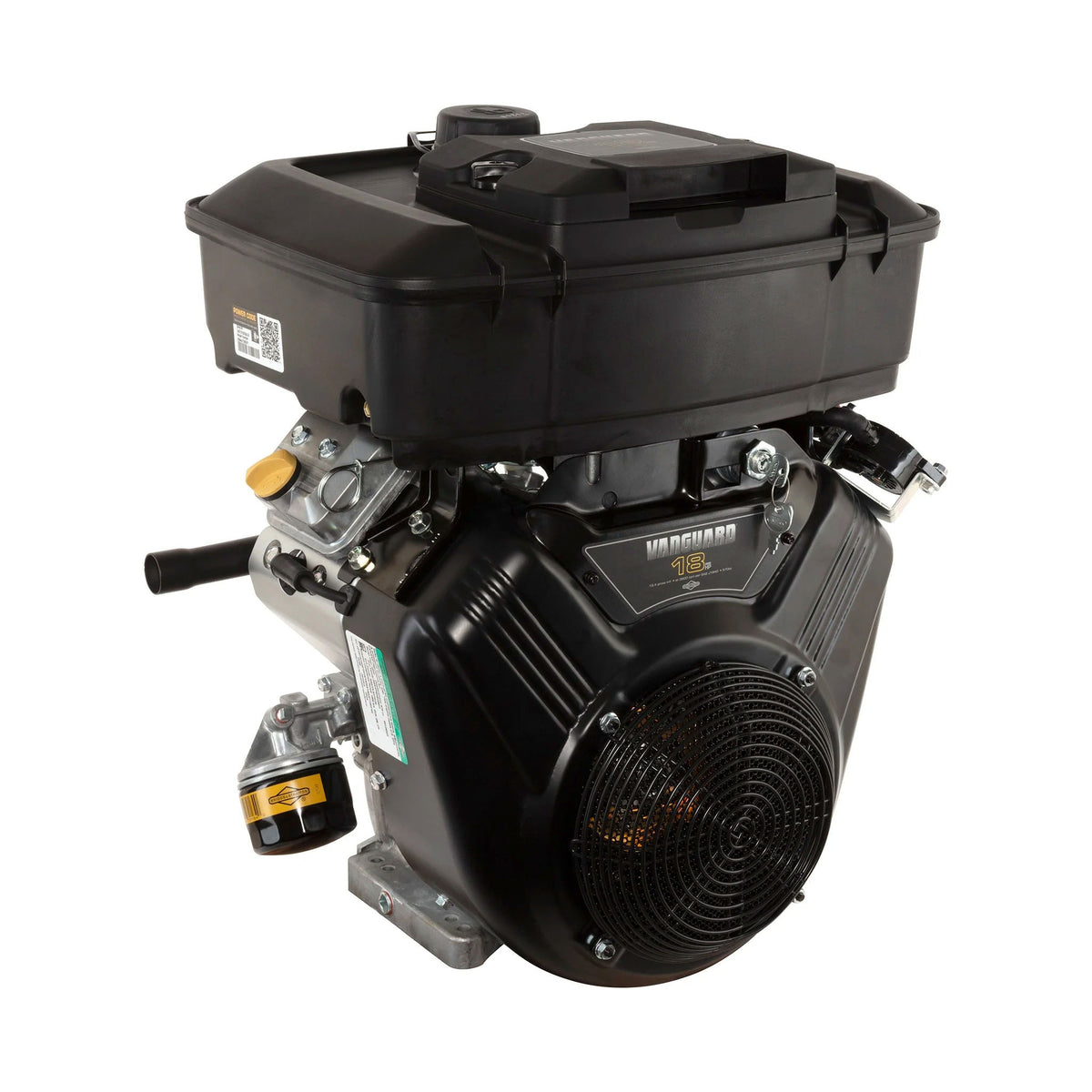

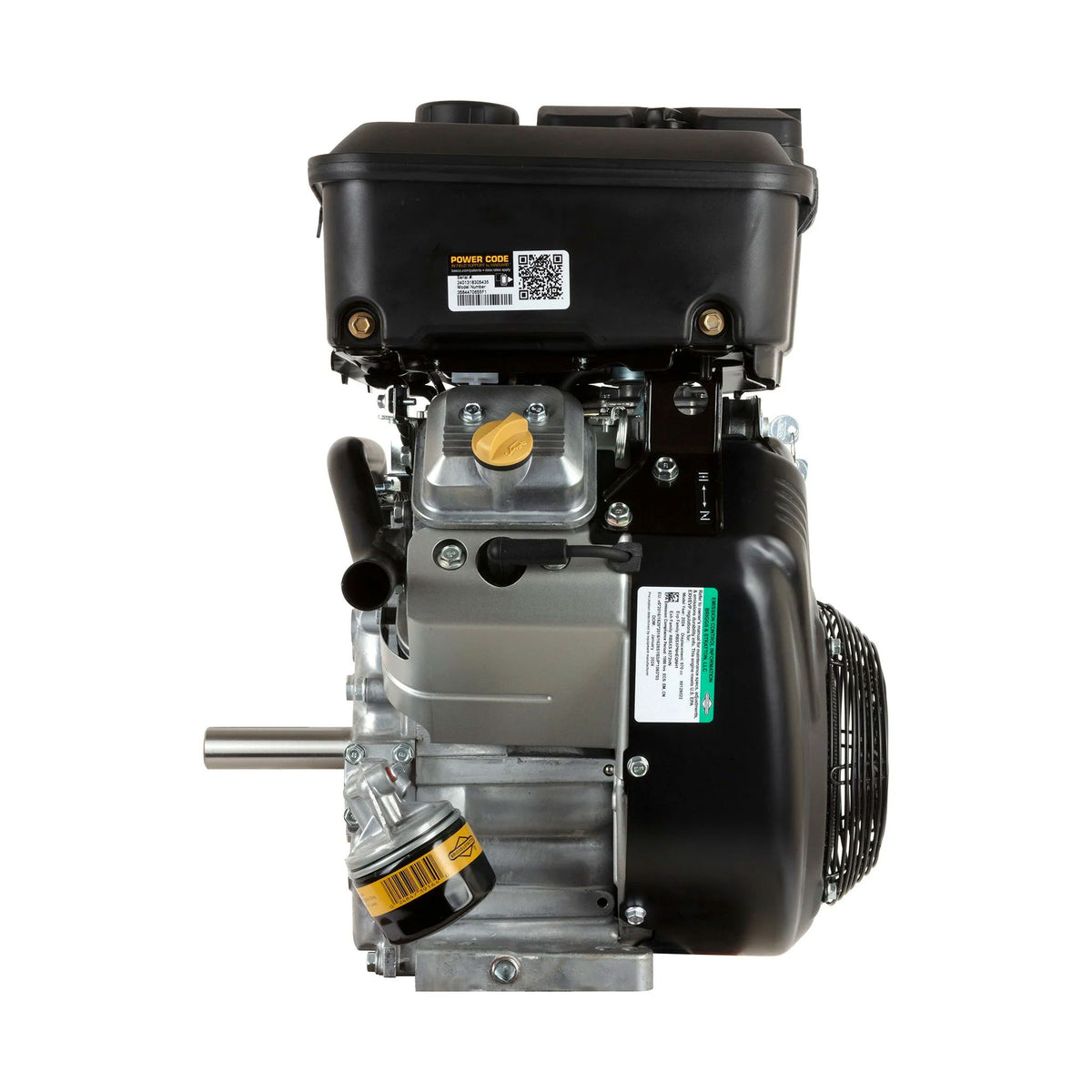

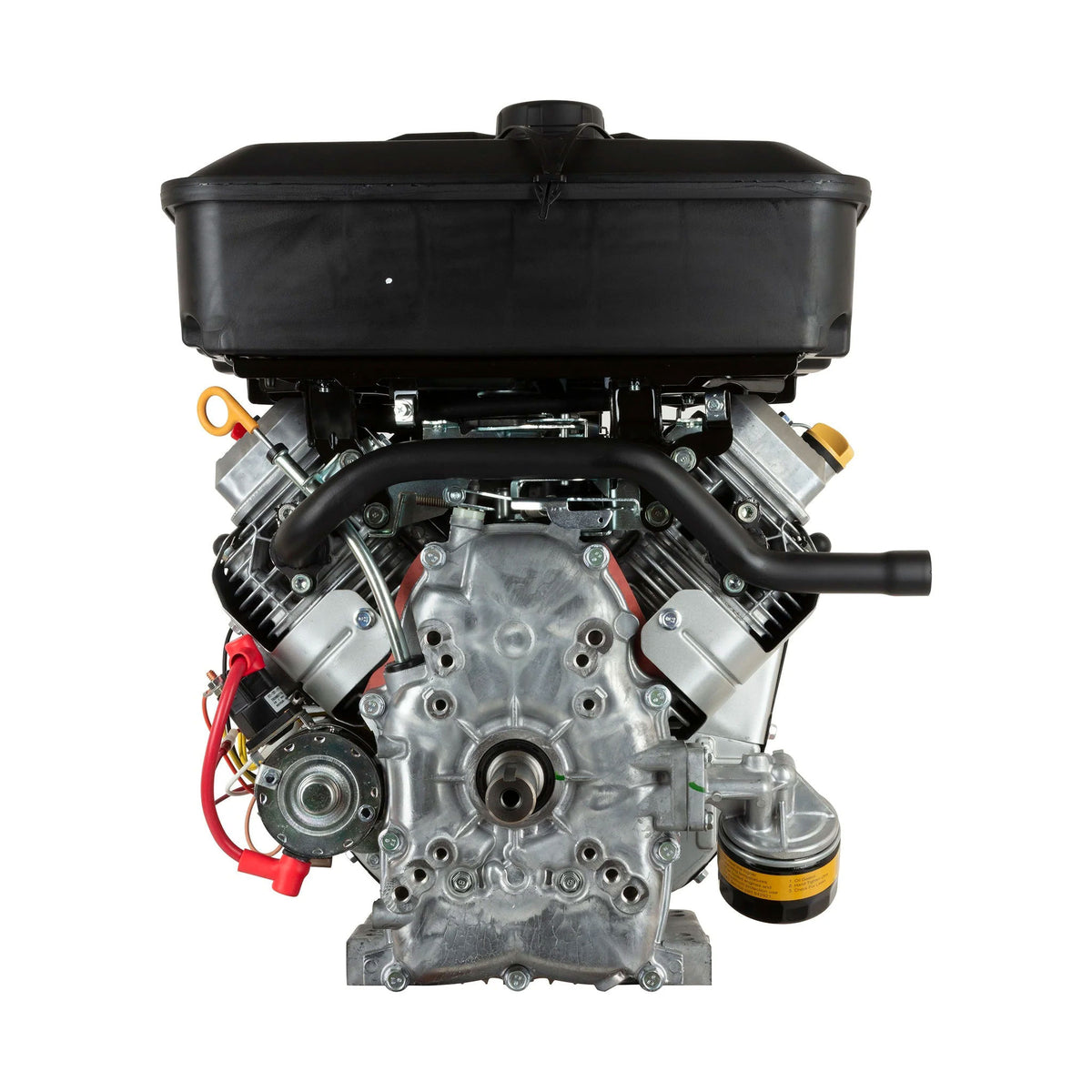

Briggs & Stratton Horizontal 18 HP Vanguard Engine 1-1/8" x 4" Shaft #356447-0655
18 HP Briggs Vanguard
1-1/8" x 4" shaft, tapped 7/16" with 1/4" keyway.
1-1/8" x 4" shaft, tapped 7/16" with 1/4" keyway.
Cast iron sleeves, fuel pump, full pressure lube w/ oil filter,
electric start w/ 16amp alternator
Includes 9qt fuel tank
Universal replacement engine for premium lawn & garden and industrial/commercial applications.
Model 356447-0655.
356447-0655-F1
Engine Specifications
| SKU | 356447-0655-F1 |
| Model/Type/Trim | 356447-0655-F1 |
| Air Cleaner | Dual Element |
| Alternator | 16 amp |
| Carburetor | Installed |
| Casing Clamp | Additional - Ship Loose |
| Controls | Equip for Remote |
| Crankshaft | 1-1/8" Dia X 3.91/3.99" Long |
| Crankshaft Details | 1/4" Keyway, 7/16-20 D&T |
| Dead Idle Speed | 1550+/-100 |
| Emissions Certification | EVAP/EXH/EU |
| Engine Base | Installed |
| Engine Idle Speed | Gov Idle 1750+/-100 |
| Engine Package | Vanguard |
| Engine Sold In | United States & Canada |
| Engine Speed | 3600+/-100 |
| Flywheel | Heavy - Cast Iron |
| Fuel Line | Without |
| Fuel Pump | Installed |
| Fuel Shutoff | Without |
| Fuel Tank | 6.95 Qt. Carbon Canister |
| Label Power | 18 HP - Model 3564 |
| Muffler Guard | Without |
| Oil Cooler | Without |
| Oil Dipstick | Extended |
| Oil Drain | Flush, Dual Sides |
| Oil Filter | Installed |
| Oil Pressure Switch | Equip For Oil Pressure Switch |
| Purge Port | Without |
| Rewind Position | Without |
| Wire Harness | Without |
Technical Specifications
| Model Series | 3564 |
| Displacement | 570 |
| Oil Capacity | 48 oz (1.42 l) |
| Valve Configuration | OHV |
| Flywheel Torque | 125 lb/ft (169.5 Nm) |
| Governor Arm Torque | 117 lb/in (13.2 Nm) |
| Carb Mount | 65 lb/in (7.5 Nm) |
| Plug Gap | 0.03 in (0.76 mm) |
| Intake Valve | .004-.006 in (.10-.15 mm) |
| Exhaust Valve | .004-.006 in (.10-.15 mm) |
| Idle Speed | 1750 |
| Air Gap | .008-.012 in (.20-.30 mm) |
| Flywheel Puller Part | 19203 |
| Flywheel Holder Part | 19433 |
| Connecting Rod Torque | 115 lb/in (13.0 Nm) |
| Sump Torque | 150 lb/in (17.0 Nm) |
| Head Torque | 165 lb/in (18.5 Nm) |
| Top No Load (rpms) | 3600 |
Number of Cylinders 2
Gross Power: (kW/HP) 13.4 @ 3600 / 18 @ 3600
Peak Gross Torque: (Nm/ft-lbs) 38.9 @ 2400 / 28.7 @ 2400
Bore: (mm/in.) 72 / 2.8
Stroke: (mm/in.) 70 / 2.8
Displacement: (cm³/in³) 570 / 34.8
Oil Capacity: (l/oz) 1.7 / 56 (with filter)
Dimensions: (LxWxH) / (mm/in.) 392 x 404 x 438 15.4 x 15.9 x 17.2
