Description
 |
 |
|
|
|
|
|
|

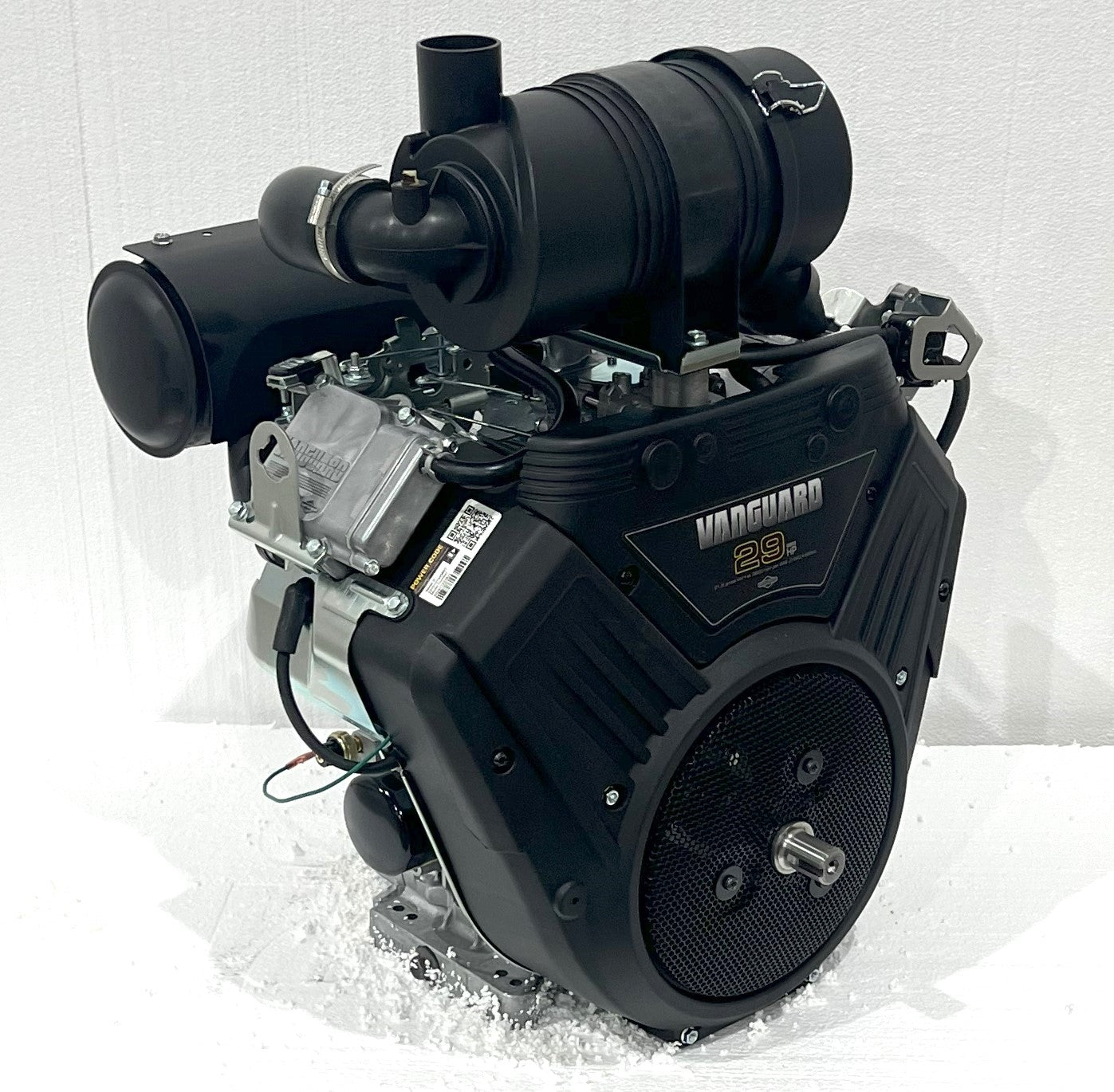

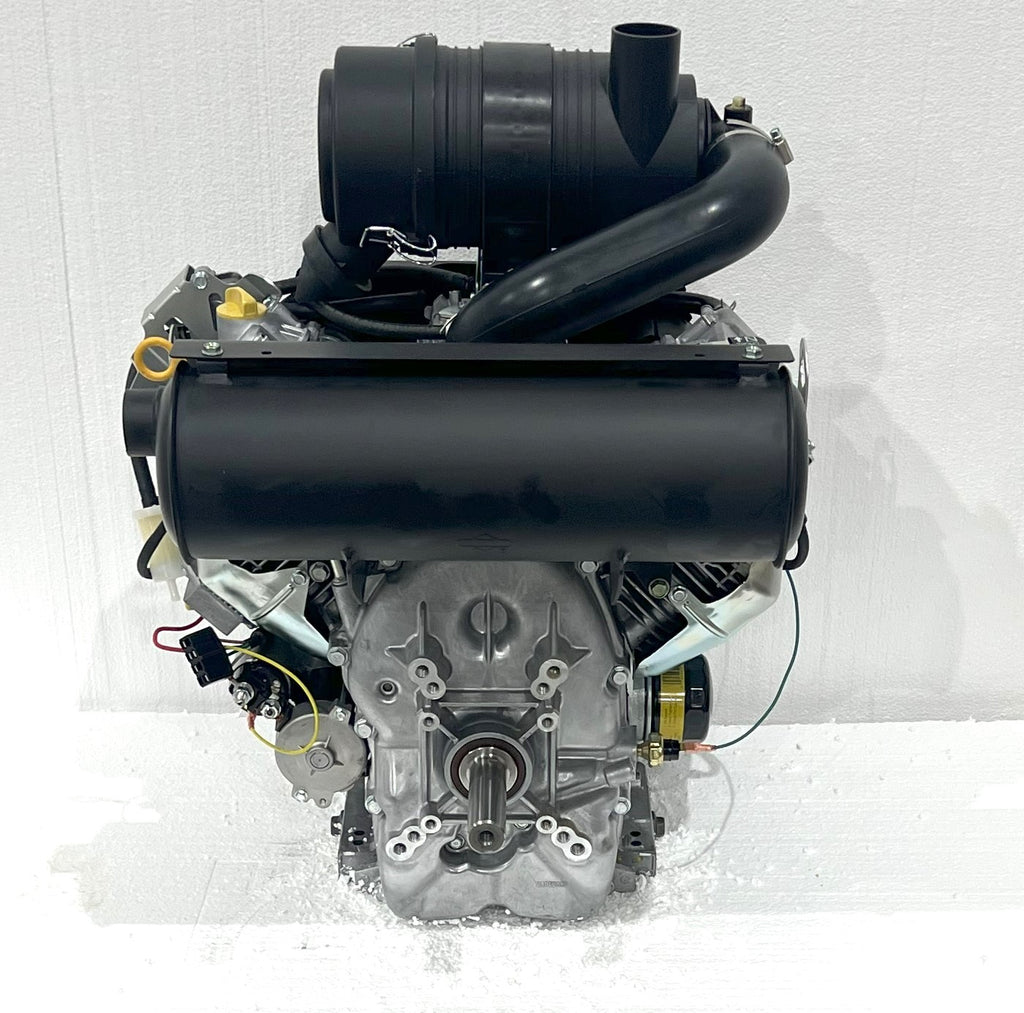

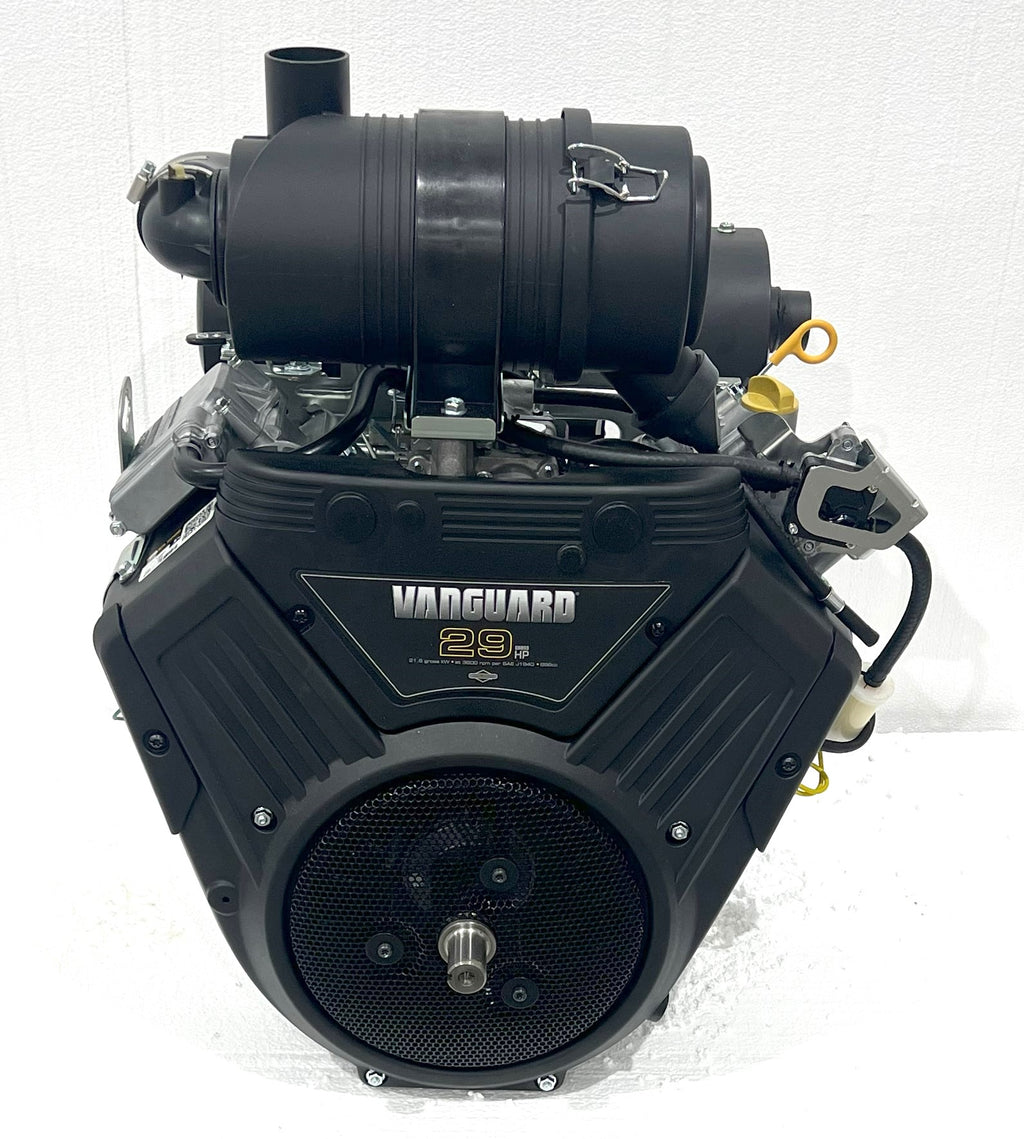

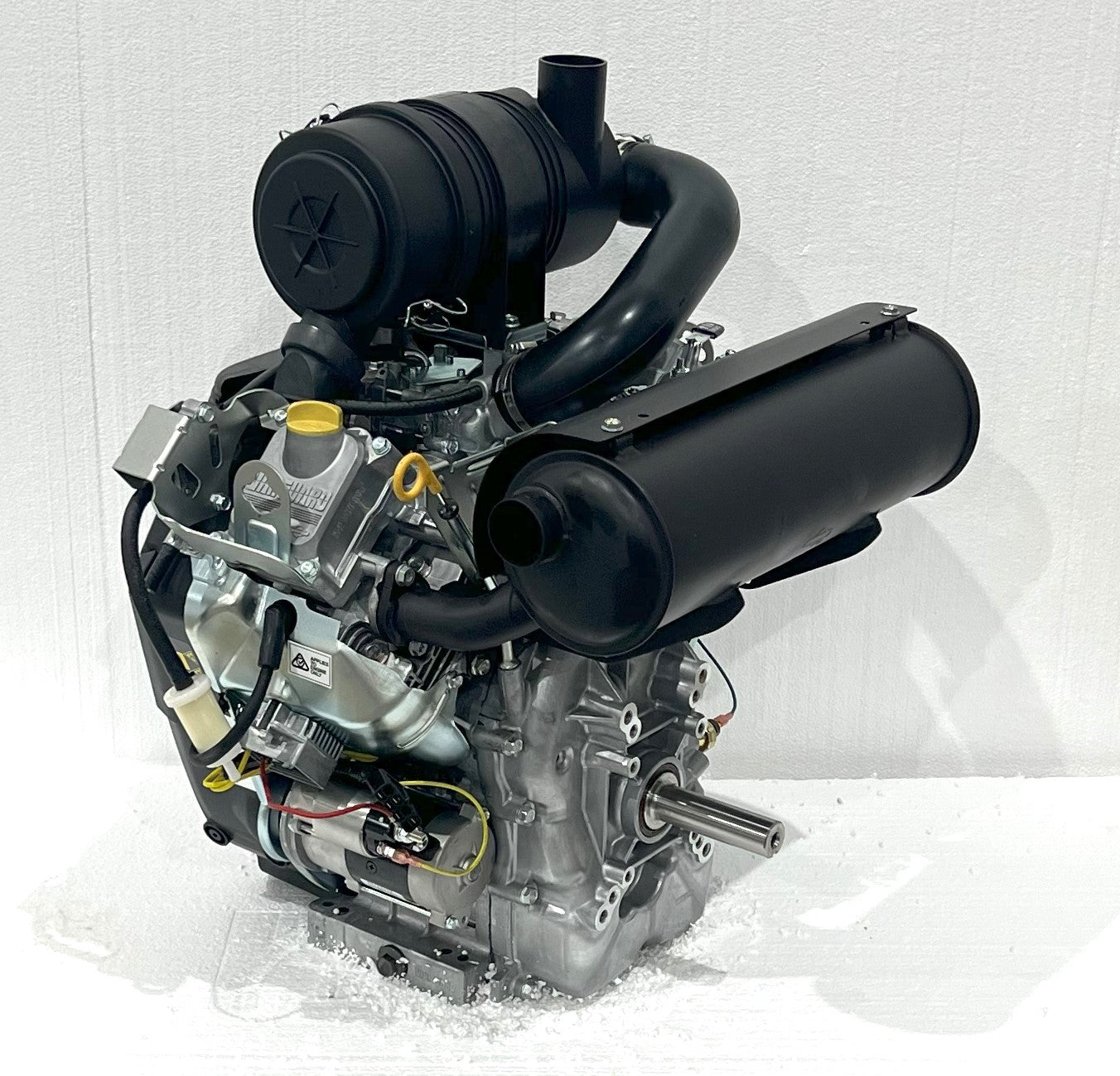

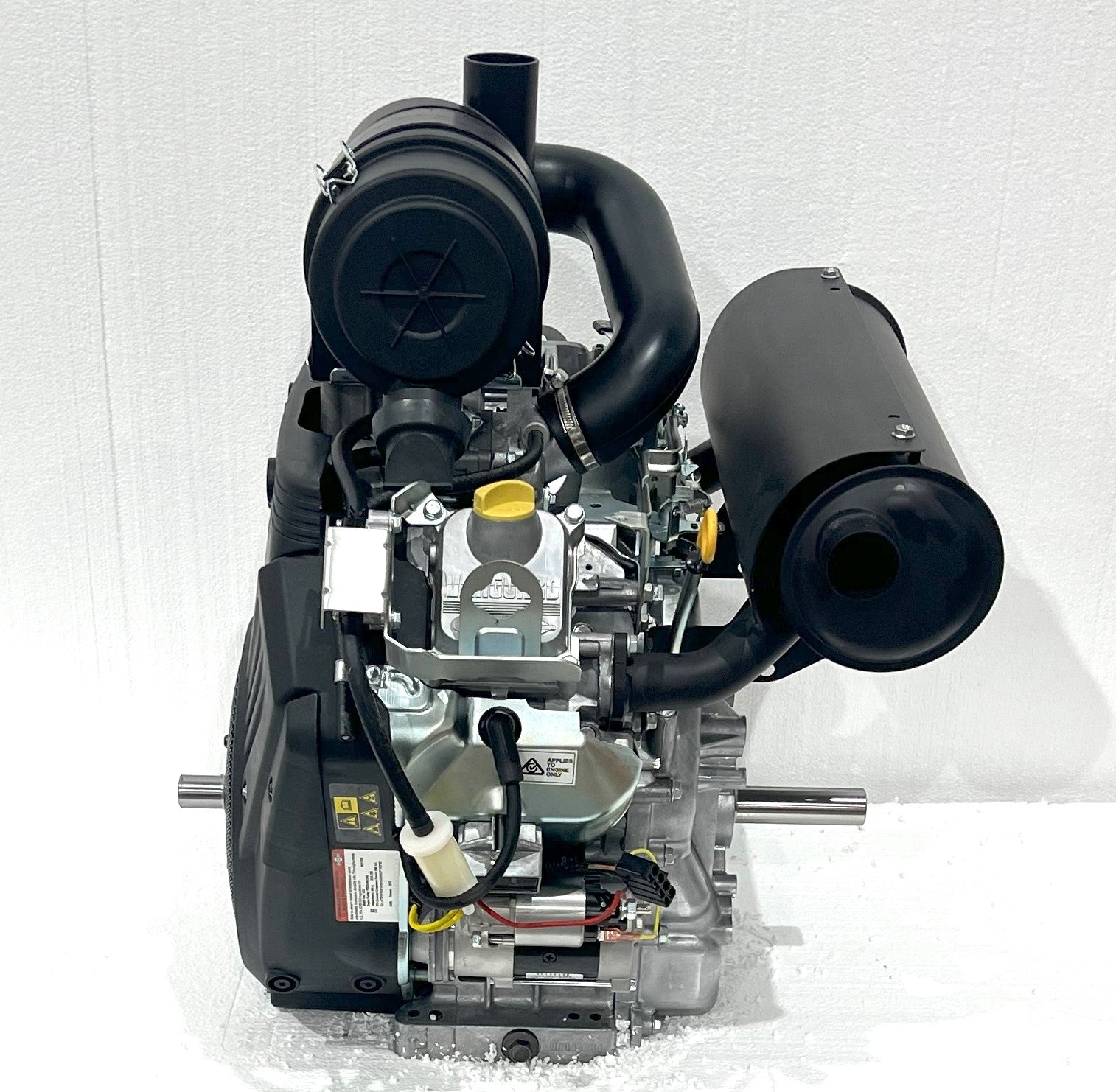

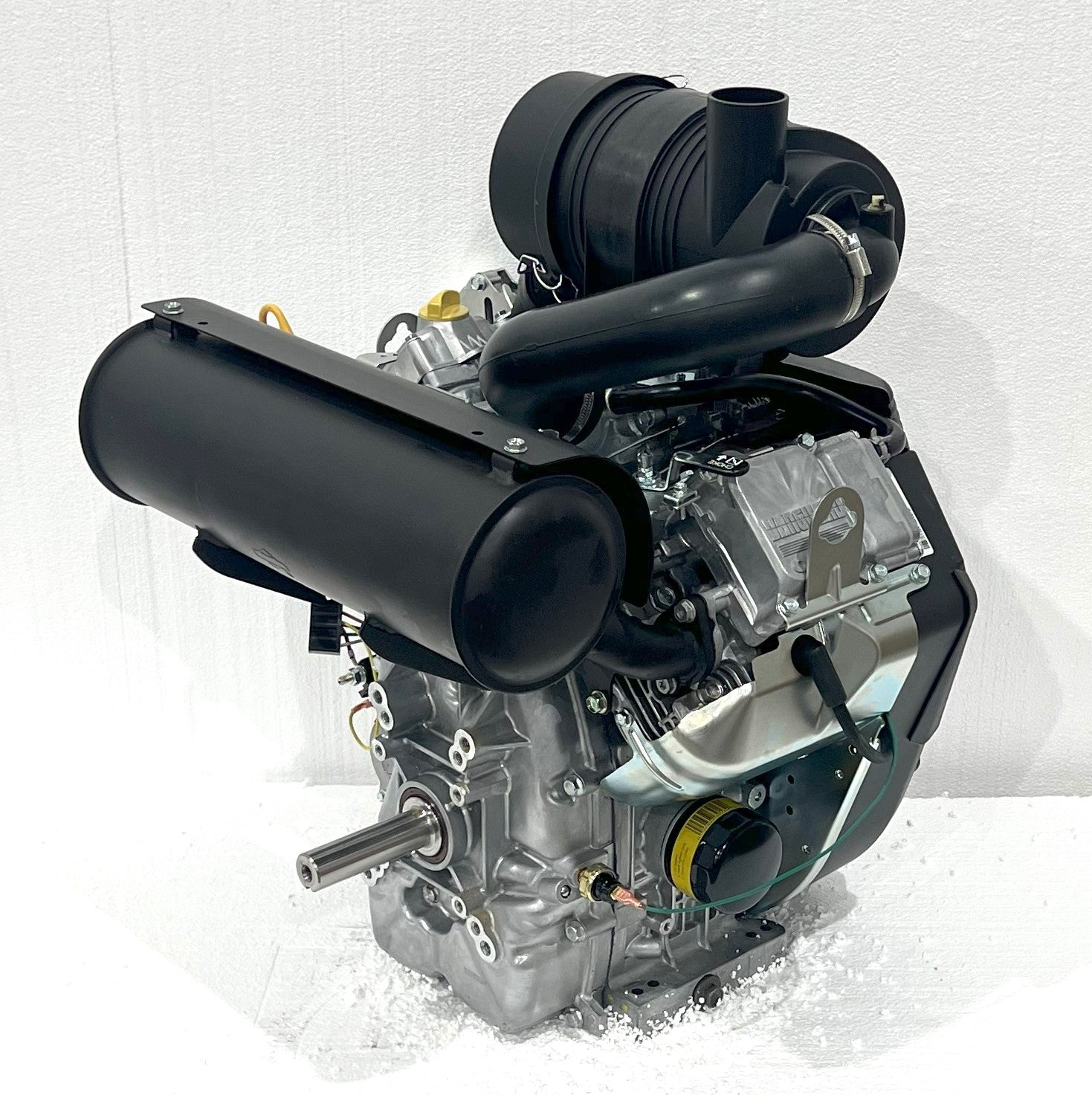

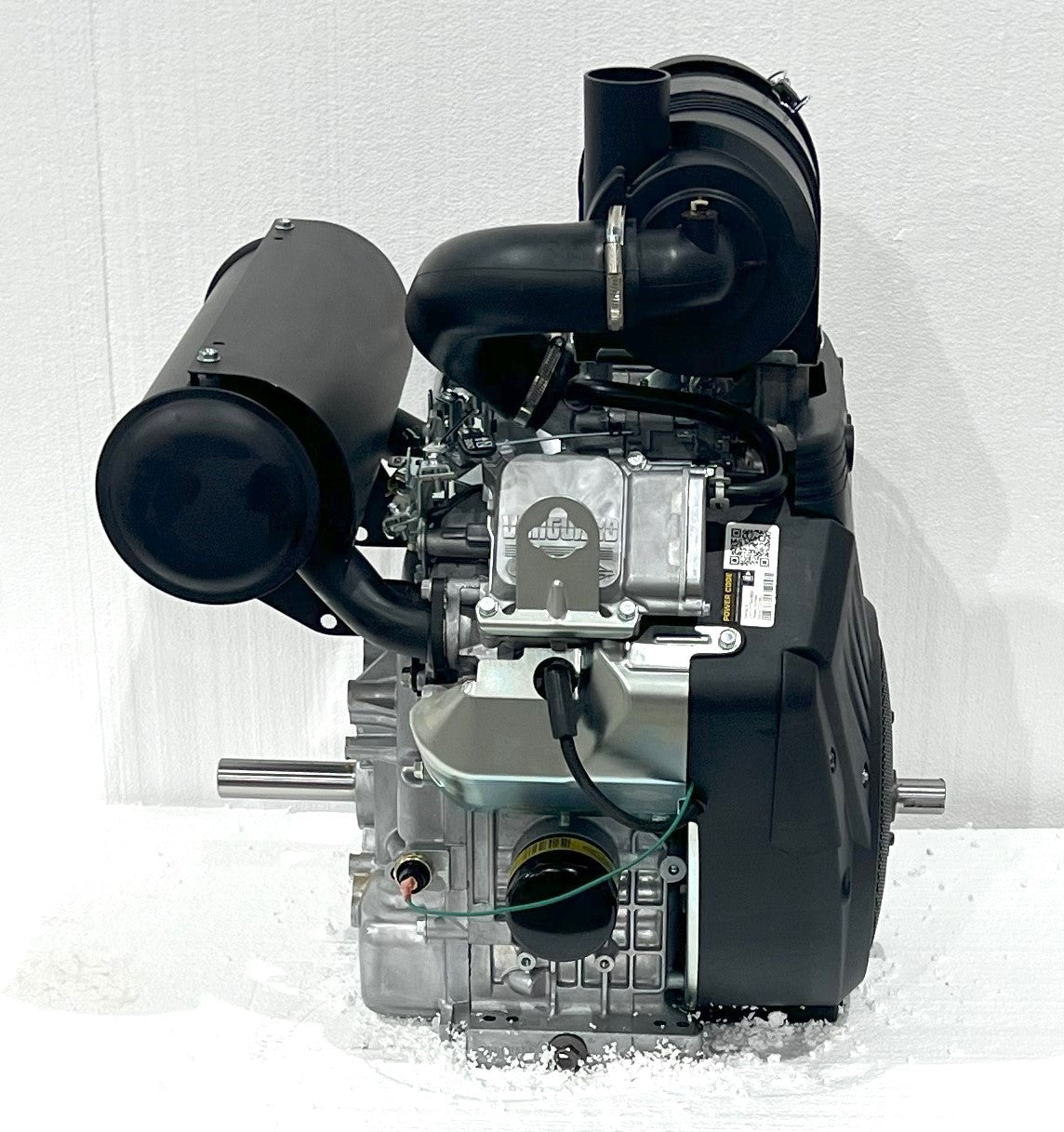

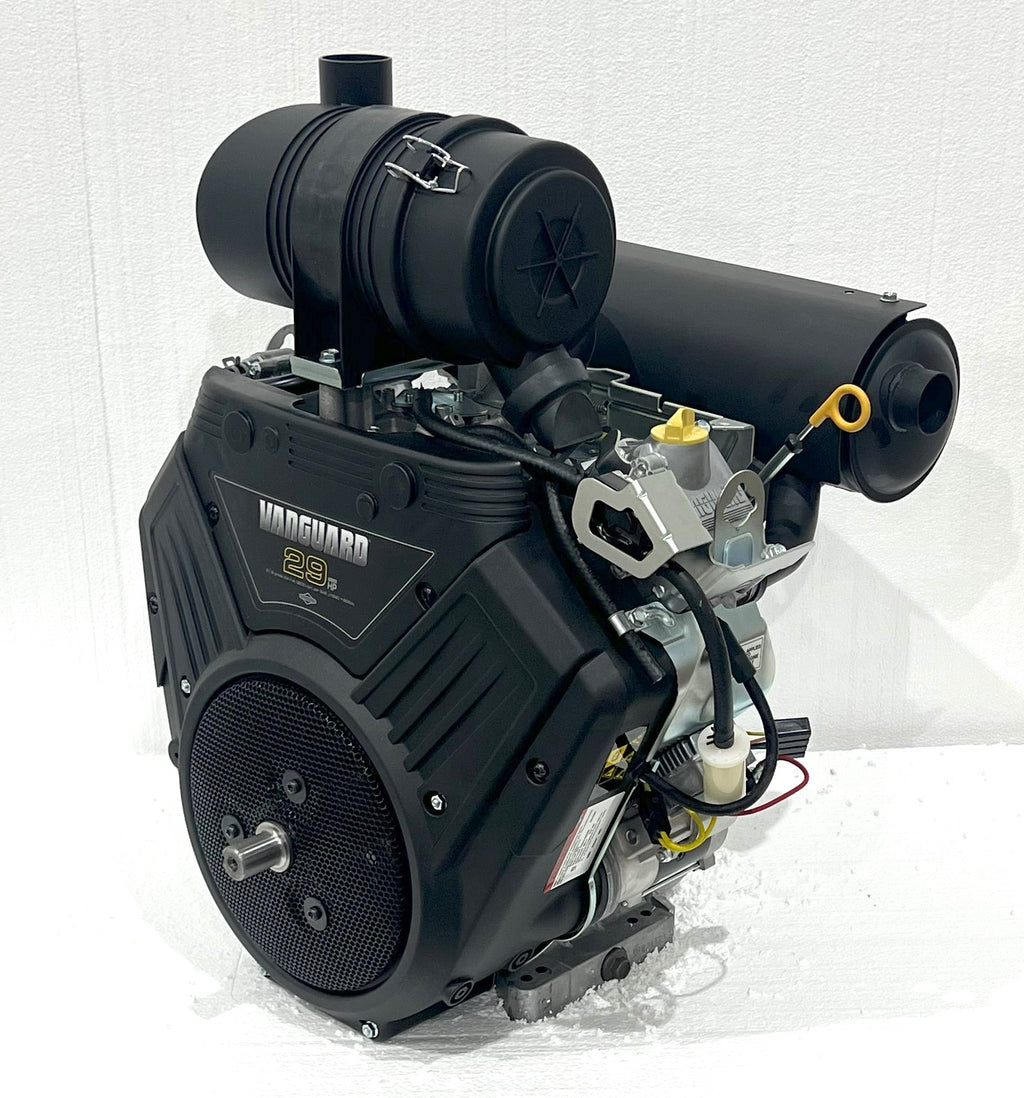

Briggs & Stratton Horizontal 29 HP Vanguard 1-1/8" x 4" w/Front Stub Shaft #542477-2228
29hp Briggs Vanguard
1-1/8" x 4" shaft, tapped 7/16" with 1/4" keyway.
1-1/8" x 4" shaft, tapped 7/16" with 1/4" keyway.
Flywheel stub shaft assembly
Cast iron sleeves, fuel pump, full pressure lube w/ oil filter,
electric start w/ 20amp alternator, advanced debris management system,
remote throttle, remote choke.
Less fuel tank, canister muffler included.
Universal replacement engine for pressure washers, saws,
compressors, rollers, log splitters, etc.
Model 542477-2228
152 lbs
Engine Specifications
| SKU | 542477-2228-J1 |
| Model/Type/Trim | 542477-2228-J1 |
| Air Cleaner | Cyclonic with Rain Cap Loose |
| Alternator | 20 amp |
| Carburetor | Manual Choke w/Casing Clamp |
| Controls | Equip for Rem w/Casing Clamp |
| Crankshaft | Straight - 1 1/8" Dia - 4" PTO |
| Crankshaft Details | 1/4" Keyway, 7/16-20 UNF-2B |
| Emissions Certification | EPA Cert-Not For Sale In Calif |
| Engine Idle Speed | Governed Idle 1750 +/- 100 RPM |
| Engine Package | Vanguard |
| Engine Sold In | United States |
| Engine Speed | 3600 +/- 0100 RPM - No Load |
| Flywheel | Heavy - Cast Iron |
| Fuel Line | 7.5" with 20 Micron Filter |
| Fuel Pump | Installed |
| Fuel Tank | Without |
| Label Power | Vanguard 896cc 29GHP |
| Lubrication | Full Pressure Lube |
| Oil Cooler | Without |
| Oil Dipstick | Extended Towards Starter Side |
| Oil Drain | Dual - M14 Threads Both Sides |
| Oil Filter | Installed |
| Oil Pressure Switch | Oil Pressure Switch 7-10 PSI |
| Purge Port | Low Vac Capped,Connector Loose |
| Spark Plug Boot | Rubber |
| Wire Harness | 8 Pin |
