Description
 |

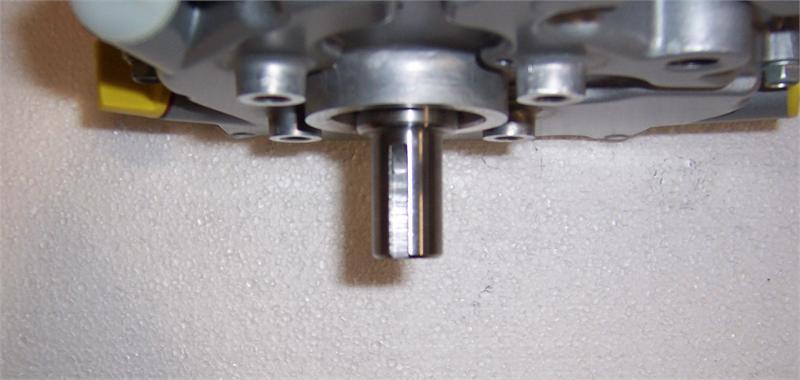

3/4" x 1-29/64" shaft, tapped 3/8-24" with 3/16" keyway
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 12T102-0937-F8 |
| Air Cleaner | AIR CLEANER, ULTRA LOW MT PANEL |
| Bearings | BEARINGS, PLAIN PTO |
| Blower Housing | PLATE, TRIM - COLOR 290 - SATIN BLACK |
| Bore Type | Koolbore |
| Bore Size | 2.690 |
| Stroke | 2.200 |
| Casing Clamps | CASING CLAMP & METRIC SCREW W |
| Controls Groups | CONTROL GROUP 22, MODEL |
| Cylinder Head | CYLINDER, ALUMINUM |
| Deflectors | DEFLECTOR, WITHOUT (METRIC SCREW REQ |
| Dipsticks | DIPSTICK, LOW MOUNT, |
| Oil Drain | OIL FILL, DUAL |
| Flywheel | FLYWHEEL, HEAVY NON-ELEC START & NON-ALT |
| Exhaust | MUFFLER, LO-TONE INSTALLED |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, REWIND POSITION - 1:30 O'CLOCK |

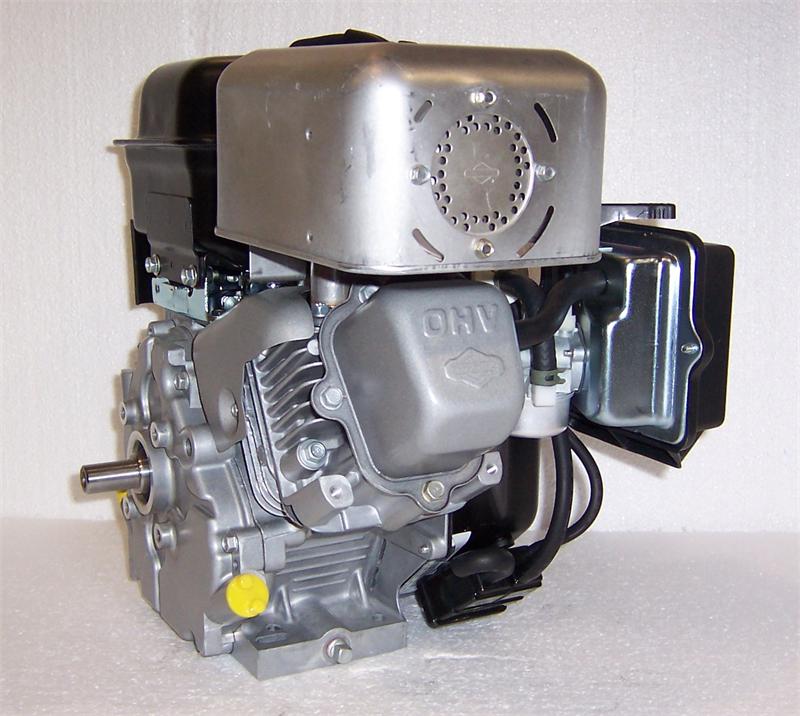

- 30 Slant Cylinder Overhead Valve Design More efficient operation and increased horsepower in a clean, compact package
- 206 cc Displacement Provides increased horsepower for tough chores
- Upper DU Bearing and Heavy-Duty Lower Bearing Replaceable, self-lubricating upper bearing and large lower bearing withstands load and reduces wear for a longer engine life Dual-Clean Air Cleaner Automotive-type paper filter with a foam pre-cleaner ensures double protection for extended engine life
- Float Feed Carburetor Provides increased horsepower for tough chores
- Magnetron Electronic Ignition Quick, dependable starts with no maintenance required - Fuel Shut-Off Valve Easy to shut off fuel flow for safe transportation
Number of Cylinders 1
Bore: (mm/in.) 68.3 / 2.7
Stroke: (mm/in.) 55.8 / 2.2
Displacement: (cm/in) 206 / 12.6
Fuel Tank Capacity: (l/qt) 2.8 / 3
Oil Capacity: (l/oz) 0.6 / 20
