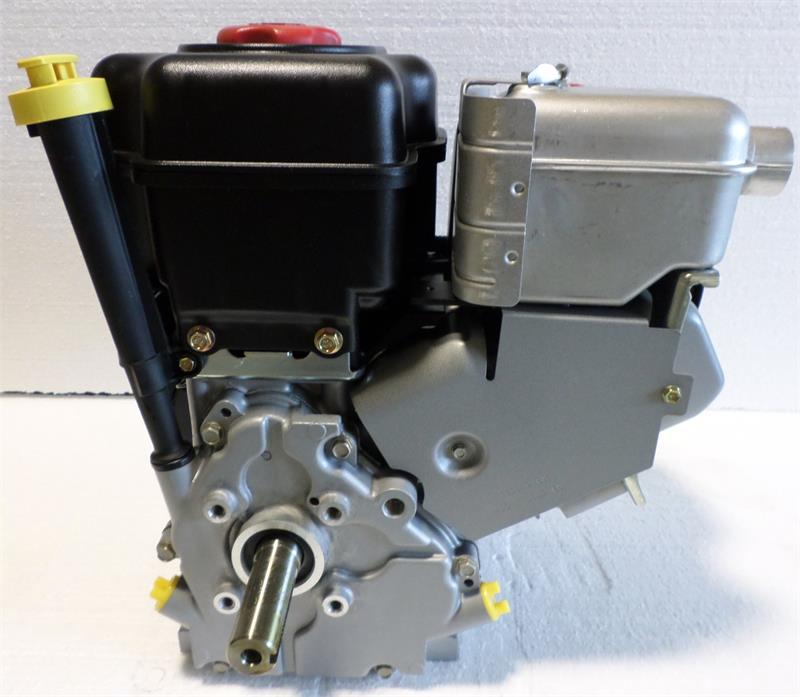

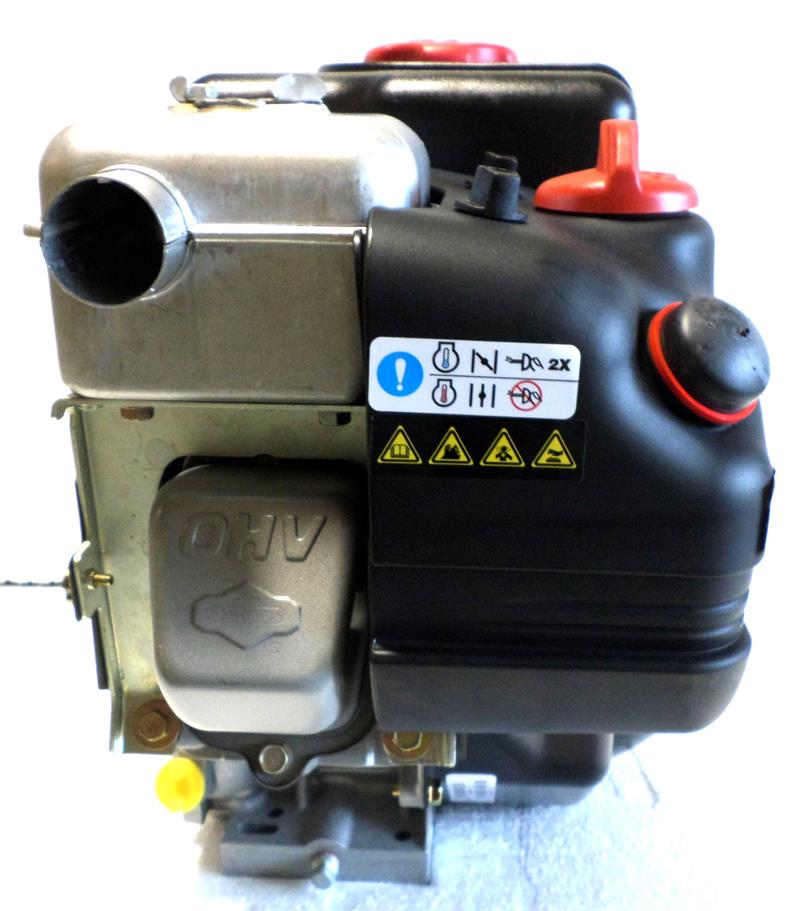

Briggs & Stratton 9 TP Snow Engine
| |
|
|
|
12D312-0509 |
| |
|
|
POWER OUTPUT:
|
9 Torque Power (Replaces 5-7hp Engines) |
| |
|
|
SHAFT MOUNTING:
|
Horizontal Shaft |
| |
|
|
SHAFT SIZE: (D x L)
|
1" x 2-27/64" tapped 5/16" |
| |
|
|
STARTER TYPE:
|
Recoil Start |
| |
|
|
APPLICATION(S):
|
Snowblower Engine |
| |
|
|
WEIGHT:
|
40 lbs |
| |
|
|
REPLACES:
|
Snow Engines |
| |
|
|
WARRANTY:
|
2 Years Consumer / 1 Year Commercial
|
|
NOTES/FEATURES:
Specifications
|
Engine Fuel
|
Gasoline
|
|
Configuration
|
Horizontal
|
|
Cylinders
|
One
|
|
SKU
|
12D312-0509-E1
|
|
Top No Load Speed
|
SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM
|
|
Gross Horsepower*
|
9.00
|
|
Oil Capacity
|
20 fl. oz.
|
|
Bearings
|
BEARINGS, FLANGE MOUNT PLAIN W/OIL SEAL & PILOT
|
|
Blower Housing
|
PLATE, TRIM - COLOR 290 - SATIN BLACK
|
|
Bore Type
|
Sleevebore
|
|
Bore Size
|
2.69
|
|
Stroke
|
2.2
|
|
Crank / Crankcase
|
CRANKSHAFT NO 698628
|
|
Casing Clamps
|
CASING CLAMP & METRIC SCREW WITHOUT
|
|
Controls Groups
|
CONTROL GROUP 30, MODEL 11/12
|
|
Cylinder Head
|
CYLINDER, ALUMINUM W/C.I.SLEEVE
|
|
Deflectors
|
DEFLECTORS, 90 DEG TUBULAR INSTALLED
|
|
Dipsticks
|
DIPSTICK, IN CRANKCASE
|
|
Oil Drain
|
OIL FILL, DUAL
|
|
Misc
|
FUEL SHUT OFF VALVE, INSTALLED
|
|
Flywheel
|
FLYWHEEL, HEAVY EQUIP FOR ELEC START
|
|
Governor
|
MECHANICAL GOVERNOR
|
|
Exhaust
|
MUFFLER, SUPER LO-TONE INSTALLED
|
|
Spark Plug
|
SPARK PLUG, EMC "Q"
|
|
Starting System
|
STARTER, REWIND W/ MIT GRIP HANDLE: P318 CHERRY RE
|
|
