Description
 |
 |

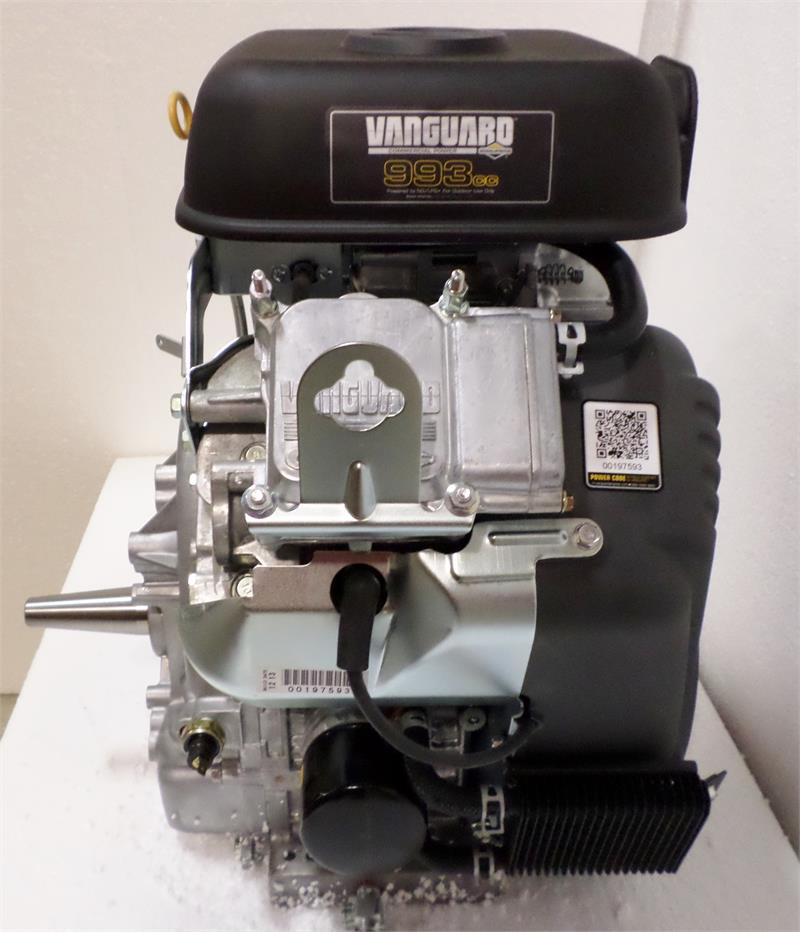

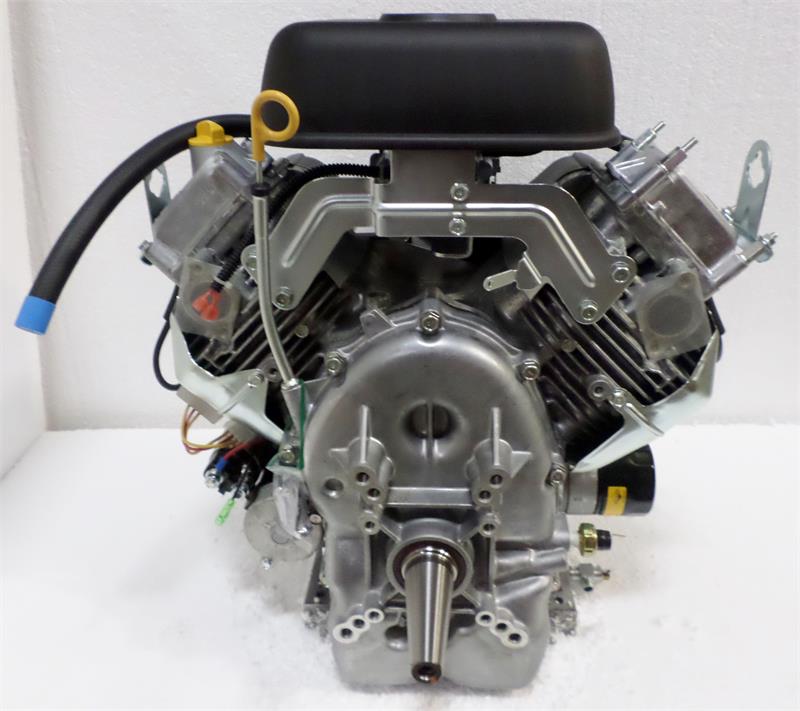

Briggs & Stratton Vanguard LP/NG Generator Engine 993cc #613277-0011
993 cc Briggs & Stratton Vanguard. LP/NG Generator Engine
| MODEL NUMBER: | 613277-0011 |
|
|
|
| POWER OUTPUT: | 35 Horse Power 993cc |
|
|
|
| SHAFT MOUNTING: | Horizontal Shaft |
| SHAFT SIZE: (D x L) | tapered shaft |
| STARTER TYPE: | Electric Starter |
| APPLICATION(S): | standby generator applications |
| WEIGHT: | 150 lbs |
| REPLACES: | standby generator applications |
Engine Specifications
| SKU | 613277-0011-E1 |
Technical Specifications
| Model Series | 6132 |
| Displacement | 993 |
| Oil Capacity | 80 oz (2.4 l) |
| Valve Configuration | OHV |
| Flywheel Torque | 120 lb/ft (203.5 Nm) |
| Governor Arm Torque | 135 lb/in (15.3 Nm) |
| Carb Mount | 90 lb/in (10.0 Nm) |
| Plug Gap | 0.02 in (0.51 mm) |
| Intake Valve | .004-.006 in (.10-.15 mm) |
| Exhaust Valve | .007-.009 in (.18-.23 mm) |
| Idle Speed | 1750 |
| Air Gap | .005-.008 in (.13-.20 mm) |
| Flywheel Puller Part | 19621 |
| Flywheel Holder Part | 19433 |
| Connecting Rod Torque | 130 lb-in (14.7 Nm) |
| Sump Torque | 195 lb/in (22.0Nm) |
| Head Torque | 347.5 lb/in (39.3 Nm) |
