Description
 |
 |
|
|
|
|
|

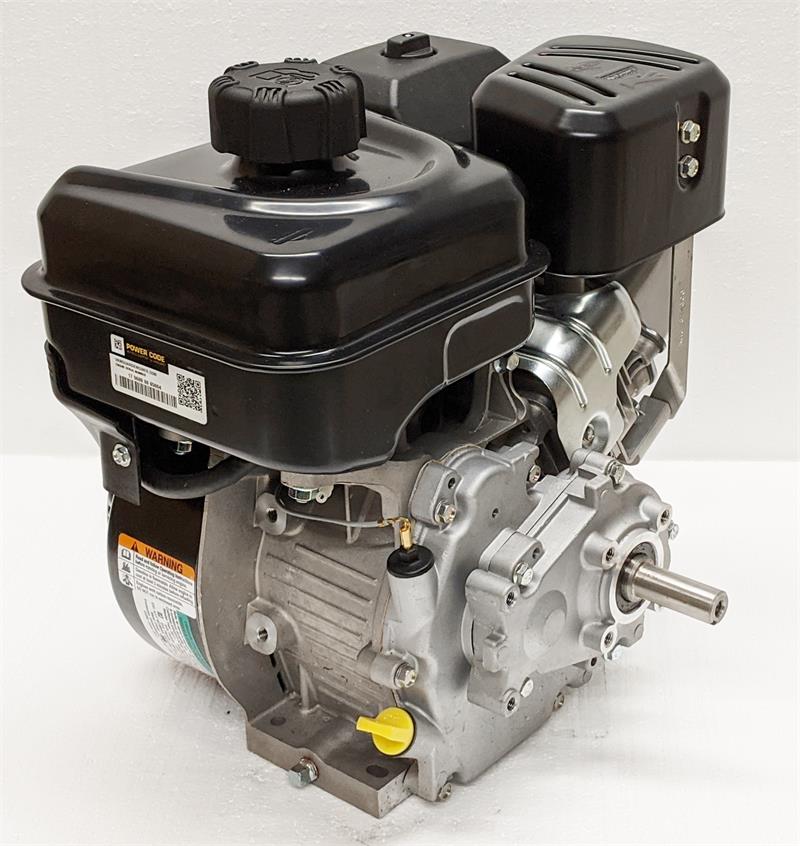

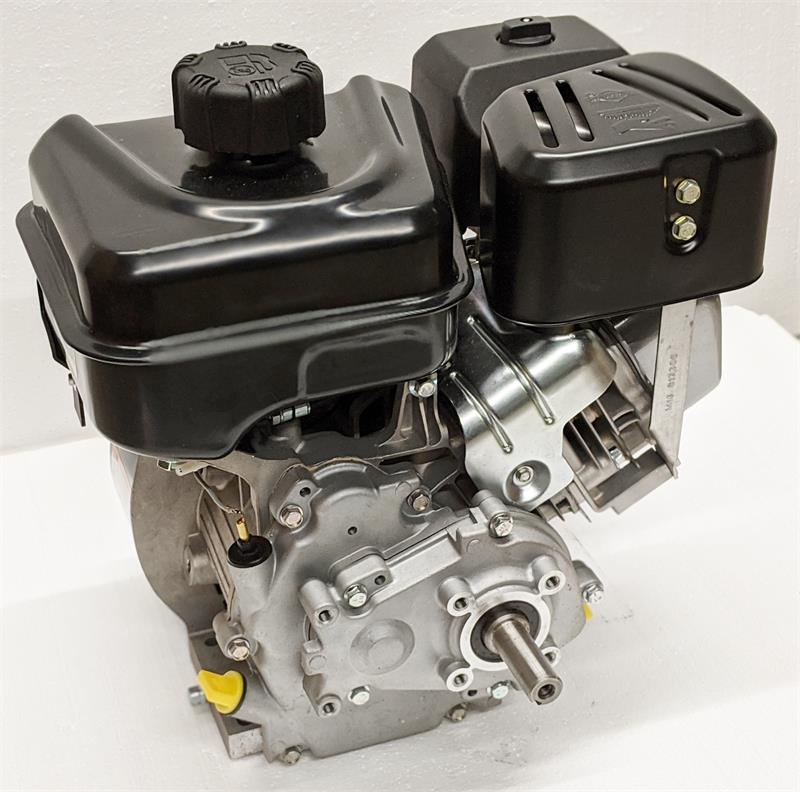

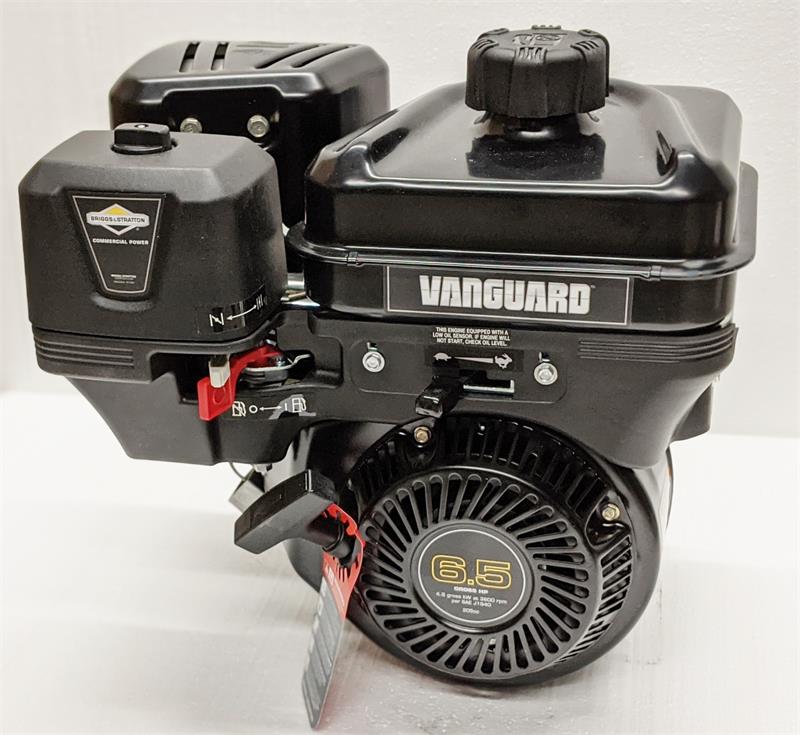

6.5hp Briggs Vanguard OHV
20mm x 2" keyed shaft, 4.95mm keyway
Dual ball bearings, cast iron sleeve, low oil shutdown, universal footprint for easy repowering.
Universal replacement engine for tillers, sprayers, compressors, blowers, power rakes, etc.
3 year warranty.
Model 13L356-0006.
Approved for sale in California.
39 lbs
|
Features
|
Benefits
|
|---|---|
|
TransportGuard System
|
Simultaneous fuel/ignition shut-off protects the engine from oil/fuel dilution during transport
|
|
Overhead Valve Design
|
Runs cooler and cleaner delivering more power, longer engine life and improved fuel economy
|
|
Commercial-style Carburertor
|
Additional fuel passages ensure reliable starting and smooth running operation at a wide range loads
|
|
Large, Efficient Sediment Filter
|
Sediment is collected in a large, clear bowl and is drained using a convenient tool-free valve
|
|
All-metal Fuel Tank
|
Reduces emissions and is mounted directly to the engine block to enhance durability
|
|
Engine Warranty
|
Two year commercial engine warranty for all applications
|
|
|
|
|
Lubrication
|
|
|
Motorsports Rod/Dipper Design
|
Efficiently improves oil flow throughout the engine; assures maximum protection of internal components
|
|
Oil Sensor
|
Automatically shuts down the engine in low oil situations to safeguard investment
|
|
Splash Lubrication System
|
Delivers superior lubrication to the engine to ensure long life and reliability
|
|
|
|
|
Mechanical
|
|
|
High-mounted Canister-style Air Cleaner
|
22% more filter area than the competition; water-repellent filter with innovative triple seal design dramatically decreases dirt, dust and debris intake
|
|
Magnetron® Electronic Ignition
|
Quick dependable starts with no maintenance required
|
|
Larger Ignition Coil
|
Assures fast, easy starts
|
|
Innovative Combustion Chamber
|
Improves air and fuel flow, resulting in a cleaner burn, reduced emissions and increased horsepower
|
|
Cylinder Head and Head Gasket
|
Increases power, stability and torque retention
|
|
Forged Crankshaft
|
Incorporates heat-treated ball bearings to minimize friction and heat build-up
|
| Engine Dimensions | |
|---|---|
| Dimensions (LxWxH) | 10.83 in (275 mm) x 15.28 in (388 mm) x 14.29 in (363 mm) |
| Weight | 41.2 lbs (18.7 kg) |
| Fuel Tank Capacity | 4.1 L |
| Oil Capacity | 20oz (0.6L) |
| Engine Displacement | 205 cc (12.51 cu in) |
