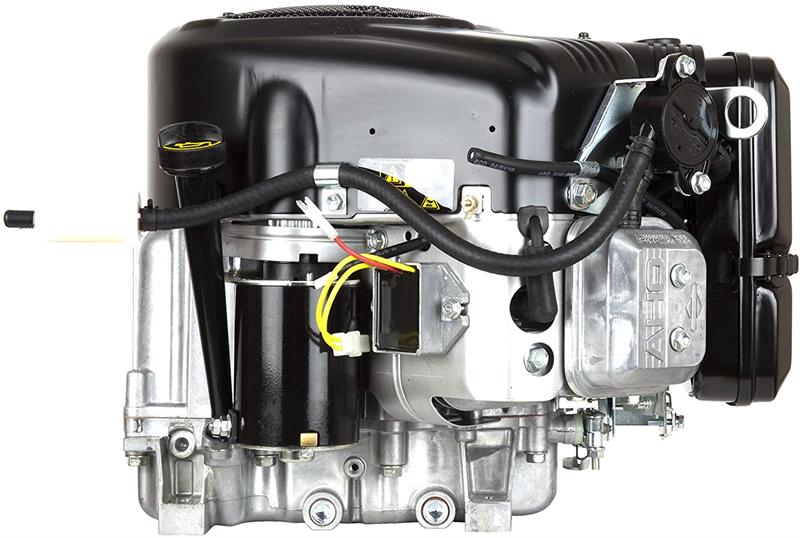

Briggs & Stratton Vertical Engine 18 HP ES Vanguard OHV 1" x 3-5/32" 16amp #356777-3034 (356777-0154)

Briggs & StrattonSKU: 356777-0154

Price:
Sale price$1,799.00
Stock:
In stock (21 units), ready to be shipped

Description

18hp Briggs Vanguard OHV
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.
12volt electric start
Cast iron sleeves, recoil start w/ 16amp DC alternator,
full pressure lube w/ oil filter, fuel pump.
Less fuel tank, less muffler.
3 year warranty.
Model 356777-0154. (Replaces 356777-3034)
84 lbs



Specifications


Engine Fuel
Gasoline
Configuration
Vertical
Cylinders
Two
SKU
356777-3034-G1
Top No Load Speed
SET IDLE SPEED 1750 +-100 RPM
Gross Horsepower*
18.00
Oil Capacity
56 fl. oz.
Air Cleaner
AIR CLEANER, DUAL ELEMENT
Air Cleaner Cover
AIR CLNR COV COL 290 - SATIN BLACK
Chg System
ALTERNATOR, 16 AMP
Bearings
BEARINGS, STEEL BACKED ALUM MAG
Blower Housing
NON-DUCTED AIR FLOW
Bore Type
Sleevebore
Bore Size
2.83
Stroke
2.75
Intake
LOW VACUUM HOSE (PLUGGED) INST AND CONNECTOR LOOSE
Crank / Crankcase
CRANKSHAFT NO 842385
Casing Clamps
CASING CLAMP & SCREW, BOTH CYLINDERS
Controls Groups
SUPPRESS AFTERFIRE ENGINE
Cylinder Head
CYLINDER, TWIN W/C.I.SLEEVE
Deflectors
DEFLECTORS, WITHOUT
Dipsticks
DIPSTICK, IN CRANKCASE
Oil Drain
OIL DRAIN, DUAL
Misc
FUEL HOSE, LOW PERM 15.0 IN W/20 MICRON FILTER
Flywheel
FLYWHEEL, HEAVY EQUIP FOR ELEC START
Fuel System
FUEL SYSTEM, WITHOUT FUEL TANK
Governor
MECHANICAL GOVERNOR
Exhaust
MUFFLER, WITHOUT
Spark Plug
SPARK PLUG, EMC "X"
Starting System
STARTER, 12 VOLT INDUSTRIAL
