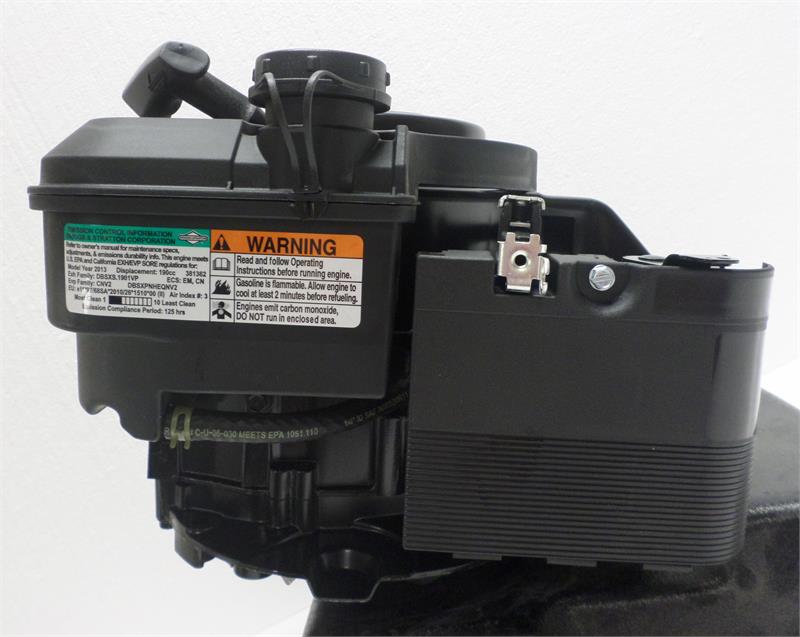

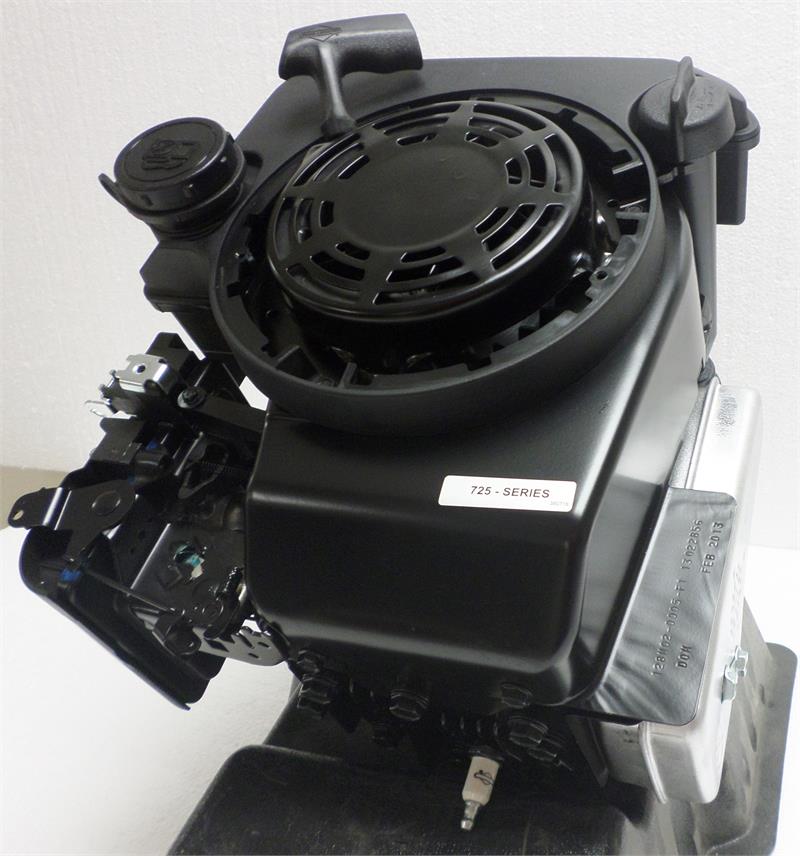

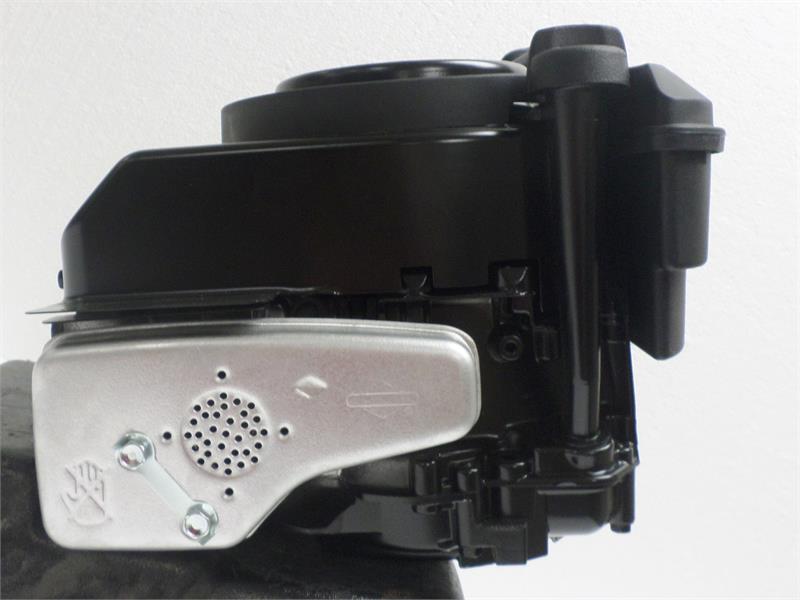

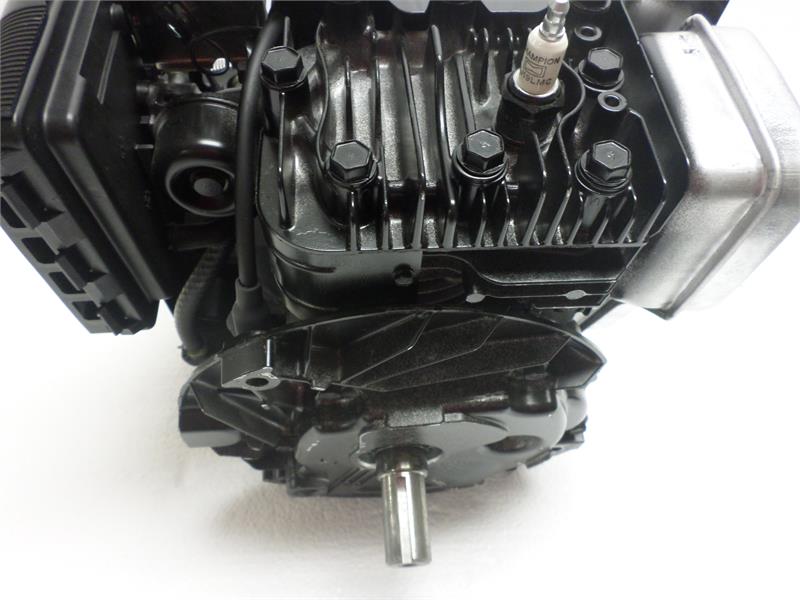

Briggs & Stratton Vertical Engine 7.25TP 7/8" x 2-7/16" HF #128M02-0005

Save 9%
Briggs & StrattonSKU: 128M02-0005

Price:
Sale price$299.00 Regular price$329.00
Stock:
In stock (16 units), ready to be shipped

Description

Briggs & Stratton  725 Series

7/8" x 2-7/16" shaft
Non-compliance engine, heavy flywheel.
Fixed Speed Throttle
Universal replacement engine for pressure washers, log splitters, and other types
of engines that do not need a flywheel brake, or that have a mower blade attached.
Ready Start, no choke- no priming.
2 year consumer/ 90 day commercial warranty.
3200 rpm top speed setting.
Model 128M02-0005
28 lbs


MODEL NUMBER: 128M02-0005

POWER OUTPUT: 7.25 Torque Power

SHAFT MOUNTING: Vertical Shaft

SHAFT SIZE: (D x L) 7/8" x 2-7/16" shaft, tapped 3/8" with keyway

STARTER TYPE: Recoil Starter

APPLICATION(S): Universal replacement engine for pressure washers, log splitters, and other types of engines that do not need a flywheel brake, or that have a mower blade attached.

WEIGHT: 29 LBS

REPLACES:

WARRANTY:
2 Years Consumer / 90 Day Commercial

Engine Specifications


Engine Fuel Gasoline
Configuration Vertical
Cylinders One
SKU 128M02-0005-F1
Top No Load Speed SET ENG NO-LOAD SPEED TO 3200 +/-100 RPM
Oil Capacity 20 fl. oz.
Air Cleaner AIR CLEANER, PAPER ELEMENT
Air Cleaner Cover AIR CLNR COV COL 290 - SATIN BLACK
Bearings BEARINGS, PLAIN PTO
Blower Housing COVER, WITHOUT
Bore Type Koolbore
Bore Size 2.69
Stroke 2.04
Casing Clamps CASING CLAMP & SCREW, WITHOUT
Controls Groups CONTROL GROUP 53, MODEL QUANTUMS
Cylinder Head CYLINDER, ALUMINUM
Deflectors DEFLECTORS, WITHOUT
Dipsticks DIPSTICK, OPPOSITE CARB SIDE
Oil Drain OIL FILL, OPPOSITE CARB SIDE
Misc FUEL HOSE, LOW PERM VERSION
Flywheel FLYWHEEL, HVY, CAST IRON, REW ONLY
Governor MECHANICAL GOVERNOR
Exhaust MUFFLER, PERFORMANCE INSTALLED
Spark Plug SPARK PLUG, RESISTOR
Starting System STARTER, REWIND POSITION - 6:00 O'CLOCK
