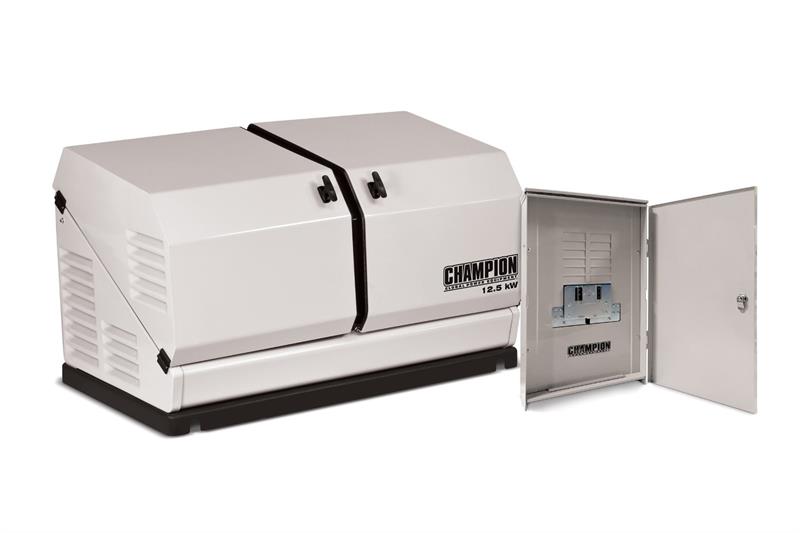

Champion 12.5KW 720cc Standby Generator w/ 100amp Transfer Switch #100179
FEATURES
- 12.5kW continuous electrical power
- 717cc Champion OHV engine, electric start and low oil pressure shut down
- Automatic 99 amp, 12 circuit outdoor transfer switch
- Champion Auto Control Module (ACM)
- All weather composite mounting pad
- All weather steel enclosure
- Natural gas (NG) or Propane (LPG) operation
- Pressurized oiling system with spin on automotive type oil filter
- 10 year limited warranty
- Reliable
- 24 volt starting system is the most powerful in the industry. Designed to assure starting at temperatures as low as -22 degrees F
GENERATOR SPECIFICATIONS
| kW (LPG) |
12.5 |
| kW (NG) |
11 |
| LPG Rated Load (A) |
104/52 |
| NG Rated Load (A) |
91.6/45.8 |
| Rated Voltage |
120/240 |
| Main Line CB (A) |
53 |
| Phase |
1 |
| Rotor Poles |
2 |
| Frequency |
60 Hz |
| Insulation Class |
H |
| THD (%) |
<5% |
| Power Factor |
1 |
| Weight (lbs/kg) |
427 lb. (193 kg) |
| Dimensions |
49.1” x 28” x 28.3" |
| Enclosure Material |
Painted Steel |
| Enclosure Base Material |
Composite |
| Operating Range °F (°C) |
-22° (-30°) to 104° (40°) |
ENGINE SPECIFICATIONS
| Type: Milwaukee Series |
OHV Commercial V-Twin |
| Displacement (cc) |
717 |
| Engine Speed (rpm) |
3600 |
| Block Material |
Alum with Cast-locked, Cast Iron Cylinder |
| Carburetor Type |
2-barrel |
| Governor Type |
Mechanical |
| Ignition System |
Solid State Magneto |
| Starter |
24V |
| Oil Capacity (qt/L) |
1.5/1.4 |
| Oil Cooler |
Yes |
| EPA Certified |
Yes |
FUEL CONSUMPTION
| Fuel Pressure Required for NG: |
5" - 7" w.c. |
| NG Fuel Consumption @ 50% load (m3/hr) |
3.46 |
| NG Fuel Consumption @ Full load (m3/hr) |
5.61 |
| Fuel Pressure Required for LPG: |
10" - 12" w.c. |
| LPG Fuel Consumption @ 50% load (l/hr) |
5.49 |
| LPG Fuel Consumption @ Full load (l/hr) |
9.78 |
| Fuel Supply Inlet (NPT) |
3/4 |
CONTROL FEATURES
| Engine Mode: ATS |
Automatically starts on utility failure |
| Engine Mode: Manual |
Starts unit and runs until turned off |
| Engine Mode: Off |
Stops unit / controller and charger active |
| Transfer Switch Mode: Auto |
Automatically transfers power on utility failure |
| Transfer Switch Mode: Off |
Does not transfer power on utility failure |
| Transfer Switch Mode: Test |
Tests all components without starting generator |
| Generator State Indicator |
Standard |
| Programable Start Delay |
Standard |
| Weekly Exercise |
Automatically starts, runs for 15 min |
| Engine Starting |
Crank sequence up to five attempts |
| Starter Lockout |
Cannot restart for 5 sec after engine stopped |
| Low Battery Indicator |
Standard |
| Battery Charger Fault Indicator |
Standard |
| Engine Warm Up |
20 sec |
| Engine Cool Down |
1 min |
| Low Oil Shutdown |
Standard |
| Overspeed Shutdown |
Standard |
| High Engine Temp Shutdown |
Standard |
| Overcrank Protection |
Standard |
| Under Speed Protection |
Standard |
| Over Speed Protection |
Standard |
| Continuous Battery Charging |
Standard |
| Hour Meter |
Standard |
| Exterior Failed Start Indicator |
Standard |
| Utility Voltage Monitor |
Standard |
| Safety Fuse |
Standard |
| Failure to Transfer Protection |
Standard |
| Incorrect Wiring Protection |
Standard |
