Champion 14KW 754cc aXis Standby Generator w/ 100amp Transfer Switch #100835

Save 4%
ChampionSKU: 100835

Price:
Sale price$4,499.00 Regular price$4,699.00
Stock:
Only 1 unit left

Description

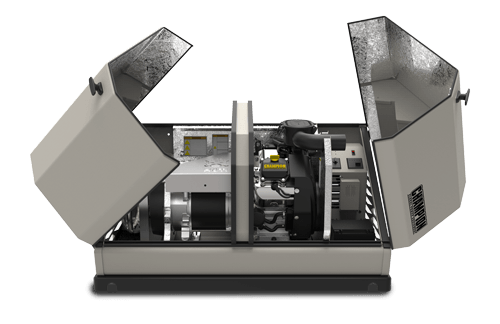

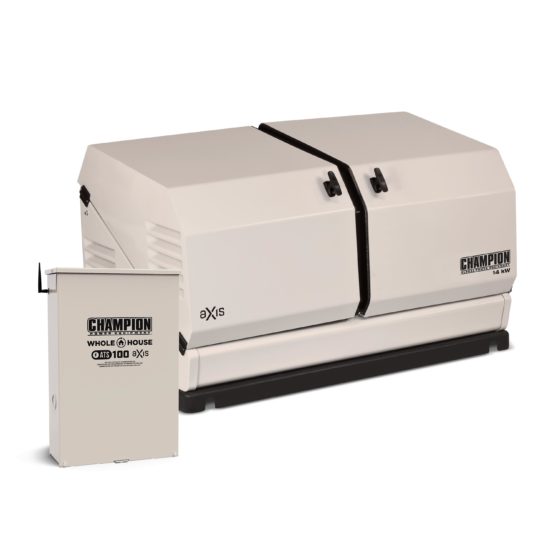

Champion 14KW 754cc aXis Standby Generator w/ 100amp Transfer Switch #100835

Champion’s 14-kW aXis Home Standby Generator System includes a 100-Amp aXis automatic transfer switch. This fully automatic system manages your home’s loads while providing quietest-in-class sound. Designed to work in sub-zero temperatures or extreme heat, this unit has a 10-year limited warranty.

FEATURES

Whole House Power

The aXis ATS100 Whole House Automatic Transfer Switch provides managed power for your home with wi-fi setup and the ability to manage unlimited high demand loads using 4 priority levels

Quietest-in-Class

Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 62 dBA noise level

Reliable

24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no cold weather kit necessary, plus the generator performs customizable self-diagnostic tests

Powerful

The 14-kilowatt generator provides 14,000 watts of continuous power on propane and 12,500 watts on natural gas, with no refueling, no manual operation and no extension cords needed

Champion Support

Includes a 10-year limited warranty, the longest standard warranty available on home standby generators in the market, with FREE lifetime technical support from dedicated experts





DESCRIPTION

The Champion Power Equipment 100835 Home Standby Generator System includes 14kW aXis Home Standby Generator and 100A aXis ATS Whole House Automatic Transfer Switch.

This generator never needs refueling operating on your home’s NG or LP fuel supply, starts automatically when utility power goes out, and turns off automatically when utility power is restored. The battery keeps a charge and operates in temperatures ranging from -22° to 104° F.

The Champion aXis platform is a programmable, upgradable home standby system. The digital aXis Controller™ is equipped to provide monitoring and protection for the HSB. Power Line Carrier technology allows the system to communicate using your home’s existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time. With aXis Wi-Fi Direct your installer can use a tablet or phone to program your generator meaning faster setup and lower cost.

This automatic Whole House transfer switch backs up your home’s 100-amp distribution panel and manages your high-demand appliances using our aXis Load Management Modules. Choose from four priority levels for each appliance from “must haves” to “nice to haves.” Multiple devices can share the same priority allowing for an unlimited number of loads that can be managed. If your generator nears capacity, high-demand appliances are automatically turned off according to their priority level to avoid overload. Load Management Modules also use Power Line Carrier technology simplifying installation.

Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with UL standards for the US.

Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with FREE lifetime technical support, a 10-year limited warranty on the generator and a 2-year limited warranty on the ATS.

What’s included

  • HSB Enclosure Keys
  • LPG Jets
  • Jet Change Tool
  • Oil Drain Pan
  • Battery Cables & Hardware
  • Flexible Fuel Line

SPECIFICATIONS

Propane Rated Watts 14000W
Natural Gas Rated Watts 12500W
Propane Rated Amps at 120V 116.7A
Propane Rated Amps at 240V 58.3A
Natural Gas Rated Amps at 120V 104A
Natural Gas Rated Amps at 240V 52A
Rated Volts 120/240
Rated Frequency 60Hz
Phase Single
Propane Fuel Consumption at 1/2 Load 1.6  gal/h
Propane Fuel Consumption at Full load 2.6 gal/h
Natural Gas Fuel Consumption at 1/2 Load 116.5 ft3/h
Natural Gas Fuel Consumption at Full Load 180.1 ft3/h
Main Line Circuit Breaker 65A
Starting System Automatic 24V
Operational Volume 62 dBA
Cooling System Air Cooled
Generator Enclosure Steel
Generator Mounting Pad Composite
Engine Brand Champion
Engine Size 754cc
Engine Type 4-stroke
Engine Speed 3600
Fuel Type Propane (LPG), Natural Gas (NG)
Engine Oil Type Mobil 1 5W-30 Full Synthetic
Engine Oil Capacity 1.7 qt.
Engine Oil Included No
Low Oil Shut-Off Yes
ETL Listing ETLus
EPA Certified Yes
Switch Amps 100A
Switch Volts 120/240
Switch Type Whole House
Switch Circuits Whole Service
Switch Poles 2
Load Management Yes
Service Entry Rated Yes
Switch Enclosure NEMA 3R

DIMENSIONS

Length 49.0 in.
Width 28.0 in.
Height 28.0 in.
Weight 439.0 lb.
