Description
Champion 14KW 754cc aXis Standby Generator w/ 200amp Transfer Switch #100837
FEATURES
Whole House Power
The aXis ATS200 Whole House Automatic Transfer Switch provides managed power for your home with wi-fi setup and the ability to manage unlimited high demand loads using 4 priority levels
Quietest-in-Class
Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 62 dBA noise level
Reliable
24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no cold weather kit necessary, plus the generator performs customizable self-diagnostic tests
Powerful
The 14-kilowatt generator provides 14,000 watts of continuous power on propane and 12,500 watts on natural gas, with no refueling, no manual operation and no extension cords needed
Champion Support
Includes a 10-year limited warranty, the longest standard warranty available on home standby generators in the market, with FREE lifetime technical support from dedicated experts
DESCRIPTION

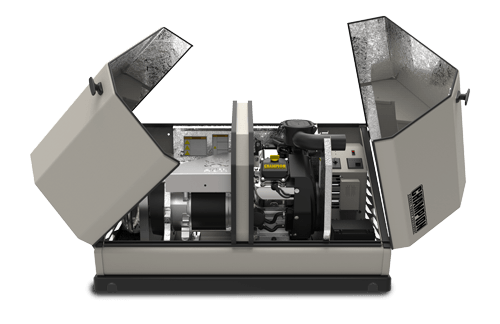

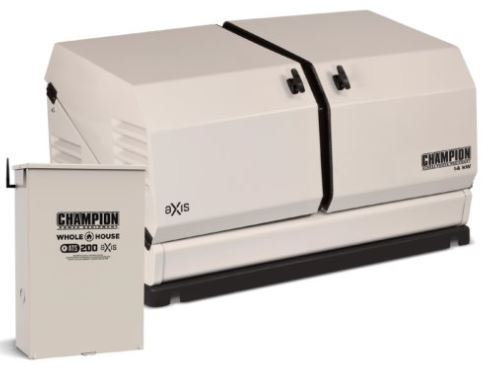

The Champion Power Equipment 100837 Home Standby Generator System includes 14kW aXis Home Standby Generator and 200A aXis ATS Whole House Automatic Transfer Switch.
This generator never needs refueling operating on your home’s NG or LP fuel supply, starts automatically when utility power goes out, and turns off automatically when utility power is restored. The battery keeps a charge and operates in temperatures ranging from -22° to 104° F.
The Champion aXis platform is a programmable, upgradable home standby system. The digital aXis Controller™ is equipped to provide monitoring and protection for the HSB. Power Line Carrier technology allows the system to communicate using your home’s existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time. With aXis Wi-Fi Direct your installer can use a tablet or phone to program your generator meaning faster setup and lower cost.
This automatic Whole House transfer switch backs up your home’s 200-amp distribution panel and manages your high-demand appliances using our aXis Load Management Modules. Choose from four priority levels for each appliance from “must haves” to “nice to haves.” Multiple devices can share the same priority allowing for an unlimited number of loads that can be managed. If your generator nears capacity, high-demand appliances are automatically turned off according to their priority level to avoid overload. Load Management Modules also use Power Line Carrier technology simplifying installation.
Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with UL standards for the US.
Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with FREE lifetime technical support, a 10-year limited warranty on the generator and a 2-year limited warranty on the ATS.
What’s included
- HSB Enclosure Keys
- LPG Jets
- Jet Change Tool
- Oil Drain Pan
- Battery Cables & Hardware
- Flexible Fuel Line
SPECIFICATIONS
Propane Rated Watts | 14000W |
---|---|
Natural Gas Rated Watts | 12500W |
Propane Rated Amps at 120V | 116.7A |
Propane Rated Amps at 240V | 58.3A |
Natural Gas Rated Amps at 120V | 104A |
Natural Gas Rated Amps at 240V | 52A |
Rated Volts | 120/240 |
Rated Frequency | 60Hz |
Phase | Single |
Propane Fuel Consumption at 1/2 Load | 1.6 gal/h |
Propane Fuel Consumption at Full load | 2.6 gal/h |
Natural Gas Fuel Consumption at 1/2 Load | 116.5 ft3/h |
Natural Gas Fuel Consumption at Full Load | 180.1 ft3/h |
Main Line Circuit Breaker | 65A |
Starting System | Automatic 24V |
Operational Volume | 62 dBA |
Cooling System | Air Cooled |
Generator Enclosure | Steel |
Generator Mounting Pad | Composite |
Engine Brand | Champion |
Engine Size | 754cc |
Engine Type | 4-stroke |
Engine Speed | 3600 |
Fuel Type | Propane (LPG), Natural Gas (NG) |
Engine Oil Type | Mobil 1 5W-30 Full Synthetic |
Engine Oil Capacity | 1.7 qt. |
Engine Oil Included | No |
Low Oil Shut-Off | Yes |
ETL Listing | ETLus |
EPA Certified | Yes |
Switch Amps | 200A |
Switch Volts | 120/240 |
Switch Type | Whole House |
Switch Circuits | Whole Service |
Switch Poles | 2 |
Load Management | Yes |
Service Entry Rated | Yes |
Switch Enclosure | NEMA 3R |
DIMENSIONS
Length | 49.0 in. |
---|---|
Width | 28.0 in. |
Height | 28.0 in. |
Weight | 439.0 lb. |
