Name: Kohler 14RCA-QS6 Air-Cooled Standby Generator (No transfer switch) 14,000-Watt
Brand: Kohler
SKU: 14RCA-QS6
Price: 4999.0 USD
Availability: InStock

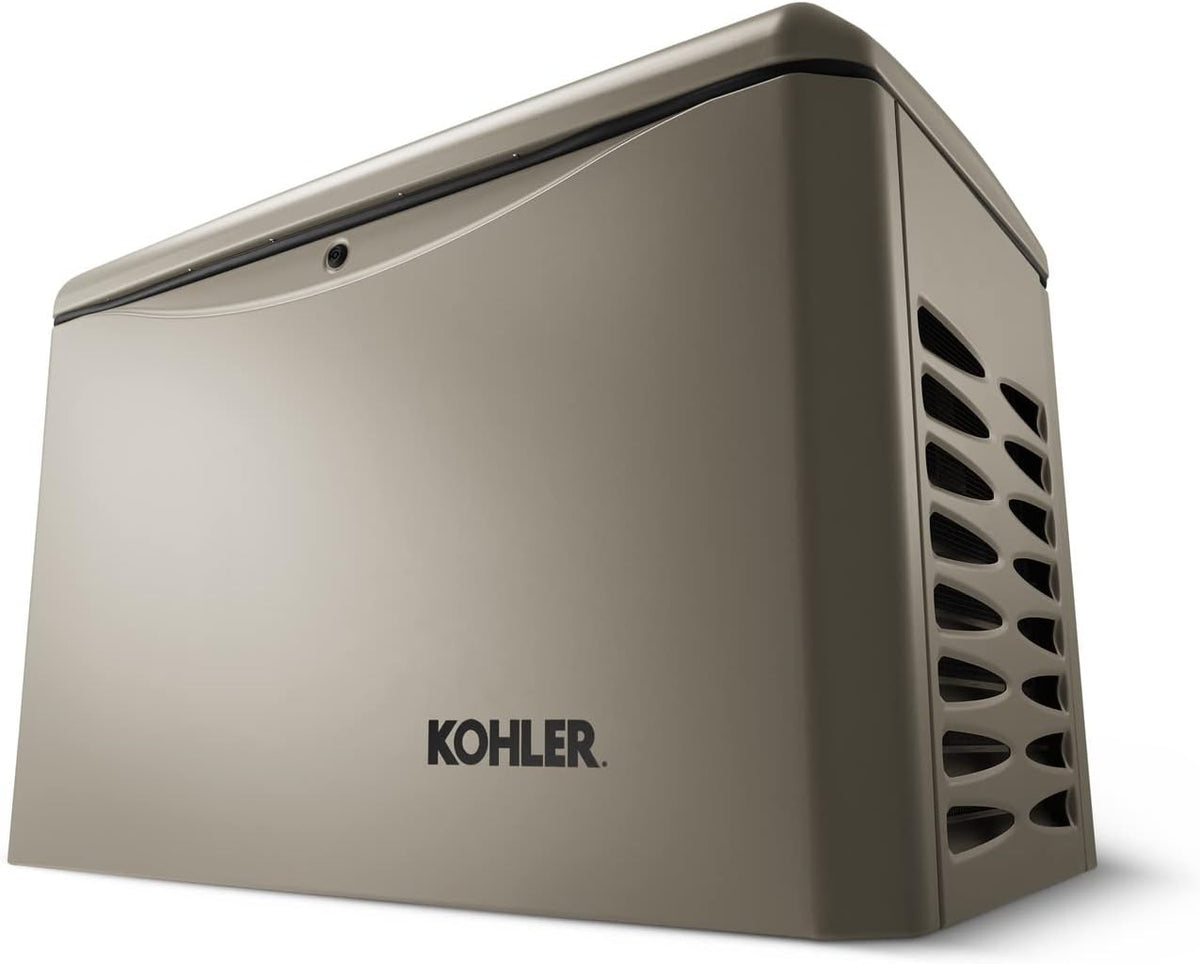

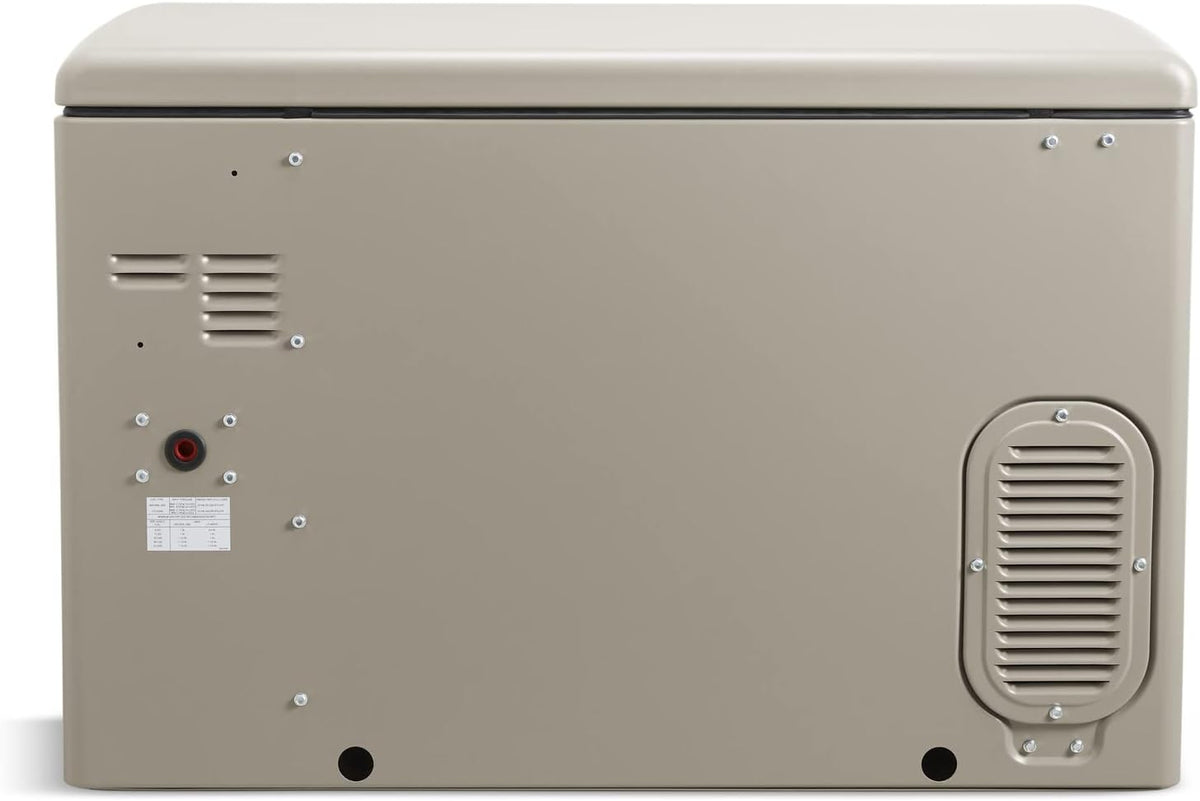

Kohler 14RCA-QS6 Air-Cooled Standby Generator (No transfer switch) 14,000-Watt

Roll over image to zoom in Click on image to zoom

Kohler 14RCA-QS6 Air-Cooled Standby Generator (No transfer switch) 14,000-Watt

Compatible to run on natural gas (12W) or liquid propane (14kW)
Powered by reliable KOHLER Command PRO engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments. (Kohler CH740 4-Cycle, 23.6 HP, V-2, 725 CC engine)
PowerBoost technology provides power to start large loads such as central air conditioners without dropping power to other appliances
OnCue Plus remote monitoring system provides real-time status updates on your generator from anywhere using smartphone, tablet, or PC

Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 14 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.*

Reliable.
Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.
Powerful.
In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.*
Premium warranty.
We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.
Award winner.
KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.

THE POWER YOU NEED

PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
Extraordinary peak motor-starting capacity: 14RCAL at 33kVA at 240V
Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only

BLEND IN OR STAND OUT

Take your generator to the next level with Mossy Oak® camouflage patterns – only from Kohler. Three popular camouflage patterns that allow your generator to Blend In with the surrounding landscaping or to Stand Out to show your appreciation for your favorite Mossy Oak camouflage pattern. Choose from Original Bottomlands, Break-Up Country, or Shadow Grass Habitat. Available on single phase generators only.
Sell Sheet - g12557.pdf

*Based on generator and load size.

Model	14RCAL
Rated kW LP	14 kW
Rated kW NG	12 kW
Amps LP	58 amps
Amps NG	50 amps
Peak Motor Starting kVA @240 V	33 kVa
Alternator Note	All information shown is for 1 Phase 60 Hz generatorwith the largest alternator option available.
Displacement	725 cm³ (44 cu. in.)
Horsepower	NG 20.5 HP, LP 23.6 HP
Enclosure Material	Aluminum
Sound Output During Weekly Exercise	63 dB(A)
Sound Output During Full-speed Operation	67 dB(A)
Response Time	10 seconds
Warranty	Premium five-year limited warranty
Country of Origin	US
Certifications/Listings	cUL,EPA,CSA,UL 2200
Automatic Transfer Switch Included	Not Included
Remote Monitoring Available	Not Included
Off Grid / Utility Backup	Off Grid,Utility Backup
Weight	490/500 lbs. (222/227 kg)
Alternator Type	2-Pole, Rotating Field
Fuel Consumption on NG at 50% load?	124 cfh
Fuel Consumption on LP at 50% load?	60 cfh
Controller	RDC2 Controller
Cylinder Arrangement	V-2
Dimensions	1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2in.)
Engine Manufacturer/Description	KOHLER
Engine Model	CH740
Engine/Alternator RPM	3600
Fuel Type LPG,Natural Gas	Frequency 60 Hz
Phase Single Phase or Three Phase	Voltage @ 60 Hz 120/240\|277/480
Digital Voltage Regulation ±1.0%	Built in Mounting Pad Yes

Accessory	(Available-Not Included)
GM85144-1	Automatic Paralleling Module,200A N3R
GM86368-S1	Breaker, Kit APM-14RESA
GM92001-1	Load Management Module
GM81529-S1	Programmable Interface Module (PIM)
GM81529-S2	Programmable Interface Module (PIM), CSA
GM17250-S1	Transformer,Current,400A:3Vac,MediumVolt

GM19462-S4	Asm, Carburetor Heater
GM19462-S3	Carburetor Heater, 240V, 6/12/14kW
GM92406-S3	Battery Heater Assembly Kit 120V, 50W
GM106374	Battery, 1/12V, 500CCA, Wet
GM101615-S1	Cover, Alternator Brush
GM102176-S1	Pressure Sensor Cover
GM110949-S1	Crankcase Breather & Oil Heater,14kW
GM110948-S1	Cold Weather Package, 120V, 14kW
GM103279-S1	NEC Remote, E-Stop
GM113935-S1	Emergency Stop 14/20RCA / RESC
GM62346	Kit, Residential Maint (12RES/14RES)
