Briggs & Stratton Horizontal 11.5 TP INTEK OHV MTD taper 2-23/32" Shaft #15T202-0915

Save 12%
Briggs & StrattonSKU: 15T202-0915

Price:
Sale price$349.00 Regular price$395.00
Stock:
In stock (101 units), ready to be shipped

Description

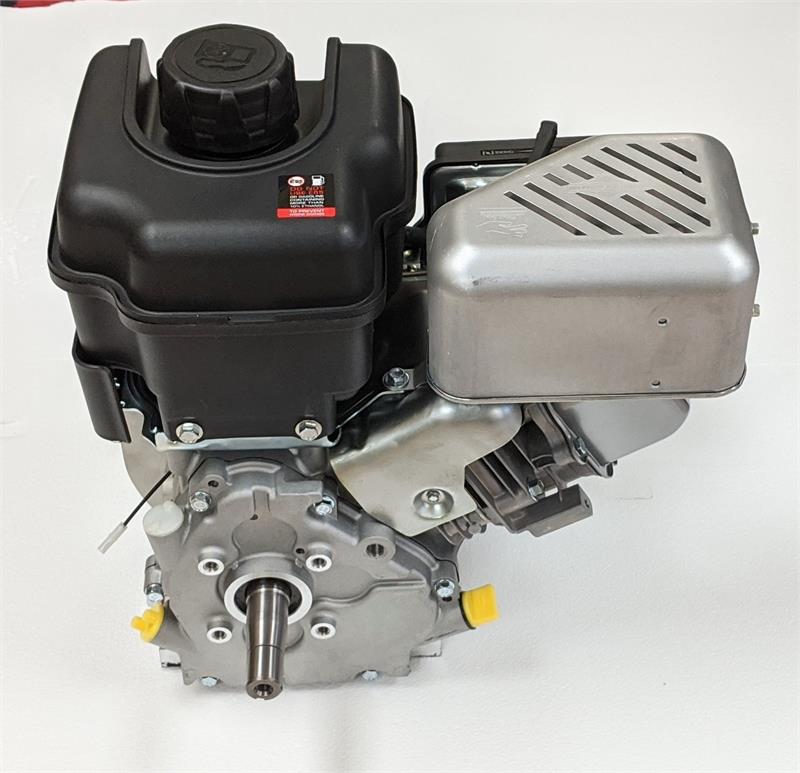

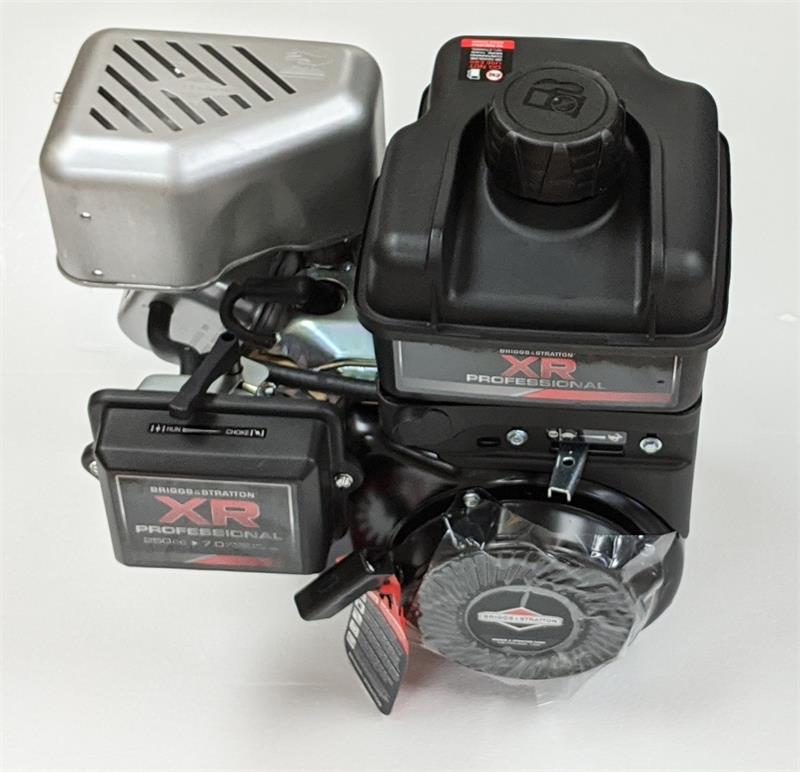

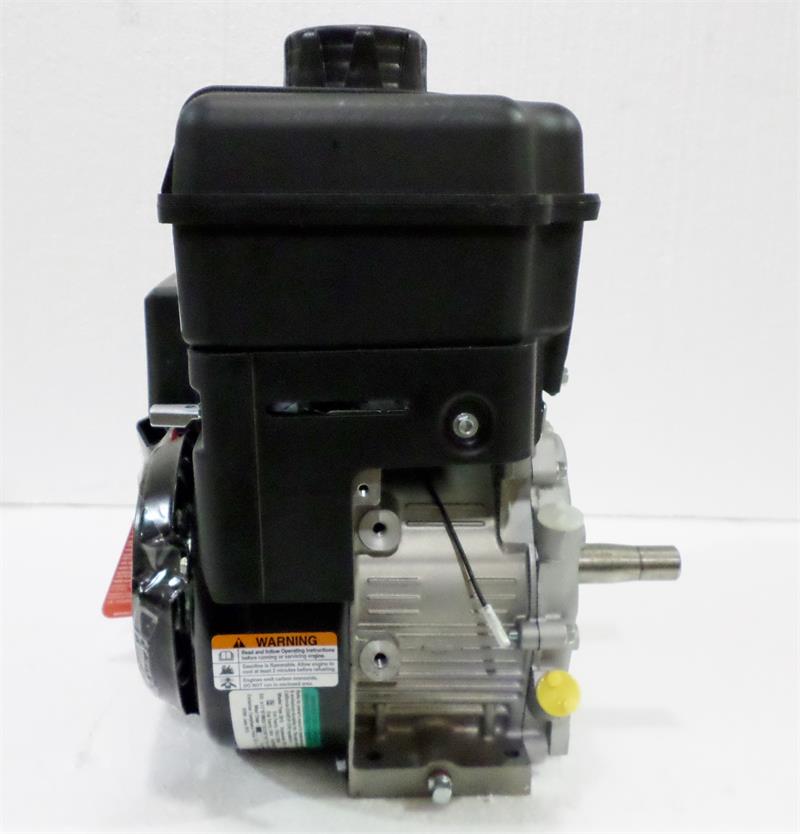

Briggs & Stratton 1150 Series Intek OHV Horizontal Shaft Engine


MODEL NUMBER:
15T202-0915

POWER OUTPUT:
11.50 Torque Power
Formerly rated as 8hp. Interchanges with 5-7.5hp engine series.

SHAFT MOUNTING:
Horizontal Shaft

SHAFT SIZE: (D x L)
MTD style taper

STARTER TYPE:
Recoil Starter

APPLICATION(S):
MTD Chipper/Shredder Applications

WEIGHT:
40 lbs

REPLACES:
Replaces 8hp Series Engine

WARRANTY:
2 Years Consumer / 90 Day Commercial
NOTES/FEATURES:


250CC 1150 Series Briggs OHV
Formerly rated as 8hp. Interchanges with 5-7.5hp engine series.

11.5 Torque Power Rating

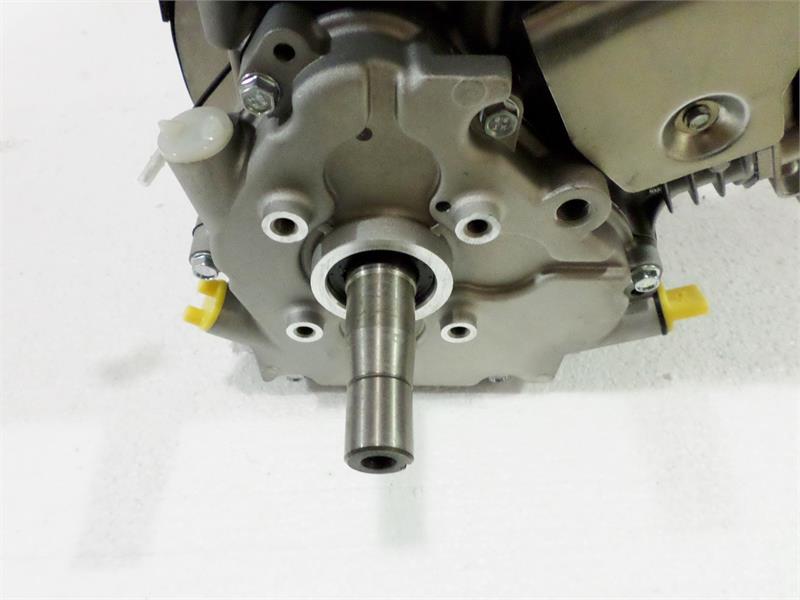

7/8" step tapered 2-23/32"shaft, tapped 3/8"
Fits MTD style chippers,etc.
2 year consumer/ 90 day commercial warranty.
Model 15T202-0915
40 lbs



Specifications


Engine Fuel
Gasoline
Configuration
Horizontal
Cylinders
One
SKU
15T202-0915-F8
Top No Load Speed
SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM
Oil Capacity
20 fl. oz.
Air Cleaner
AIR CLEANER, ULTRA LOW MT PANEL DUAL ELE
Bearings
BEARINGS, PLAIN MAG
Blower Housing
PLATE, TRIM - COLOR 290 - SATIN BLACK
Bore Type
Koolbore
Bore Size
2.97
Stroke
2.2
Intake
HIGH INERTIA CARBURETOR
Casing Clamps
CASING CLAMP & METRIC SCREW WITHOUT
Controls Groups
CONTROL GROUP 37, MODEL 11/12/15
Cylinder Head
CYLINDER, ALUMINUM
Deflectors
DEFLECTOR, WITHOUT (METRIC SCREW REQ'D)
Dipsticks
DIPSTICK, LOW MOUNT, CARB SIDE
Oil Drain
OIL FILL, DUAL
Misc
FUEL SHUT OFF VALVE OMITTED
Flywheel
FLYWHEEL, HEAVY NON-ELEC START & NON-ALT
Governor
MECHANICAL GOVERNOR
Exhaust
MUFFLER, LO-TONE INSTALLED
Spark Plug
SPARK PLUG, RESISTOR
Starting System
STARTER, REWIND POSITION - 10:30 O'CLOCK
