Briggs & StrattonSKU: 15C104-3022
Price:
$495.00
Stock:
In stock (34 units), ready to be shipped

Description

Briggs & Stratton 11.5 TP Snow Engine


MODEL NUMBER:
 15C104-3022

POWER OUTPUT:
 11. 5 Torque Power

SHAFT MOUNTING:
 Horizontal Shaft

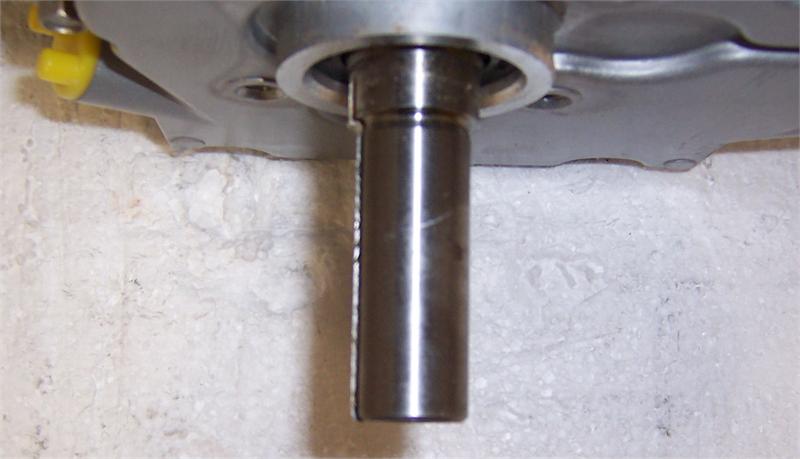

SHAFT SIZE: (D x L)
7/8" x 2-13/16"

STARTER TYPE:
 110 Volt Starter

APPLICATION(S):
 Snowblower Engine

WEIGHT:
 65 lbs

REPLACES:
 Snowblower Engines

WARRANTY:
2 Years Consumer / 1 Year Commercial
NOTES/FEATURES:

110 Volt Starter
DC ALTERNATOR 3amp DC - 60W A/C



Specifications

Engine Fuel
Gasoline
Configuration
Horizontal
Cylinders
One
SKU
15C104-3022-F8
Top No Load Speed
SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM
Oil Capacity
20 fl. oz.
Chg System
ALTERNATOR, 60W AC/3 AMP DC (DUAL CIRCUIT)
Bearings
BEARINGS, PLAIN PTO
Blower Housing
PLATE, TRIM - COLOR 290 - SATIN BLACK
Bore Type
Koolbore
Bore Size
2.97
Stroke
2.2
Crank / Crankcase
CRANKSHAFT NO 816545
Casing Clamps
CASING CLAMP & METRIC SCREW WITHOUT
Controls Groups
CONTROL GROUP 04, SNOW
Cylinder Head
CYLINDER, ALUMINUM
Deflectors
DEFL, 90 DEG TUBE CE APPR LOOSE (METRIC)
Dipsticks
DIPSTICK, IN CRANKCASE
Oil Drain
OIL FILL, WITHOUT LOW OIL FILL
Misc
FUEL SHUT OFF VALVE, INSTALLED
Flywheel
FLYWHEEL, HEAVY EQUIP FOR ELEC START
Governor
MECHANICAL GOVERNOR
Exhaust
MUFFLER, SUPER LO-TONE INSTALLED
Spark Plug
SPARK PLUG, RESISTOR
Starting System
STARTER, REWIND WITH MIT GRIP HANDLE
