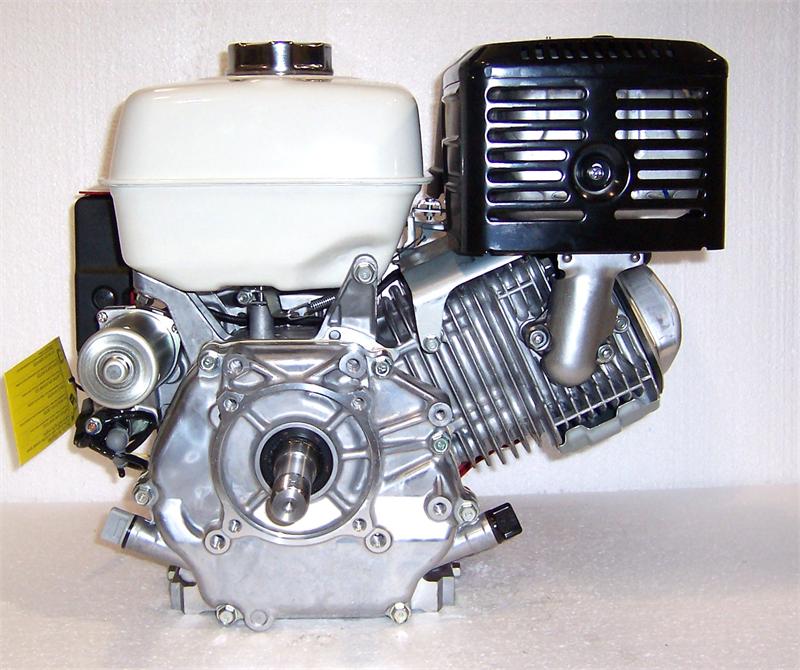

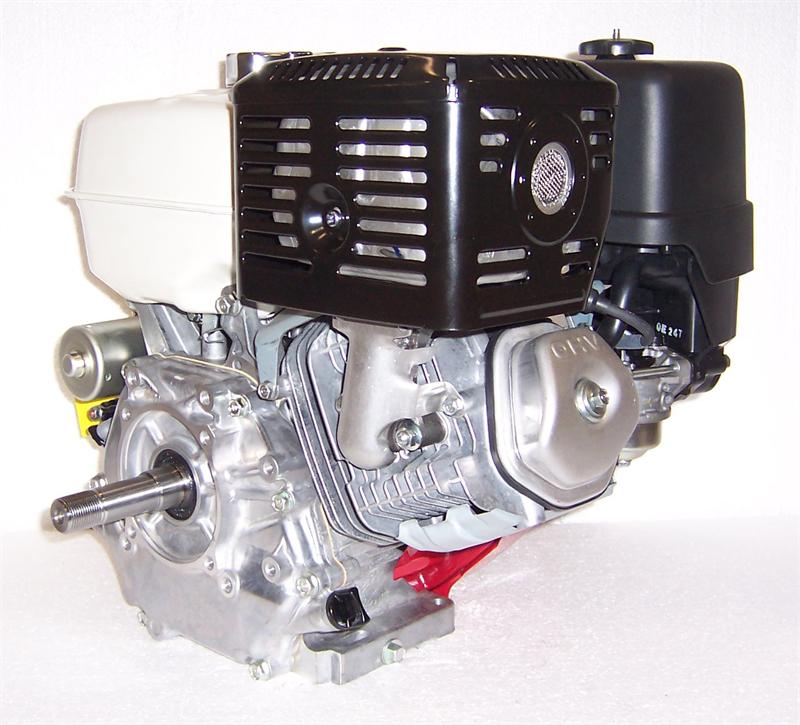

Honda Horizontal Engine 11.7 Net HP 389cc ES 1" x 3-21/32" #GX390-PAE2

HondaSKU: GX390-PAE2

Price:
Sale price$1,023.00
Stock:
Only 2 units left

Description

11.7 Net HP Formerly Rated 13 HP
1" x 3-21/32" threaded shaft.
OHV, electric start, low oil shutdown protection, heavy duty industrial engine
3 year warranty.
Made for water pumps.
Model GX390-PAE2.
85 lbs
Features
Honda OHV Commercial-grade engine
Horizontal shaft
Electronic ignition/Oil Alert
EPA/CARB compliant
3 Year Commercial Warranty
Engine Type
Air-cooled 4-stroke OHV
Bore x Stroke
88 X 64 mm
Displacement
389 cm3
Net Power Output*
11.7 HP (8.7 kW) @ 3,600 rpm
Net Torque
19.5 lb-ft (26.4 Nm) @ 2,500 rpm
PTO Shaft Rotation
Counterclockwise (from PTO shaft side)
Compression Ratio
8.2:1
Lamp/Charge coil options
3amp
Carburetor
Butterfly Float Type
Ignition System
Digital CDI with variable timing
Starting System
Recoil/electric
Lubrication System
Splash
Governor System
Centrifugal Mass Type
Air cleaner
Dual element
Oil Capacity
1.16 US qt (1.1 L)
Fuel Tank Capacity
6.4 U.S. qts (6.1 liters)
Fuel
Unleaded 86 octane or higher
Dry Weight
69 lb (31.5 kg)
Honda GX Series Engines The Next Generation
In 1983, Honda Motor Company developed a revolutionary new 4-stroke, overhead valve engine that defined the future of small engine technology.
Now, almost 27 years later, Honda introduces the next generation of GX engines by offering more power, more quiet, less fuel consumption and less emissions than ever before. All this in a configuration that doesnt require modifications to equipment currently set up for the current GX Series.
More Power
The new Honda GX Series engines offer up to 6% more power over the original models. The increase in power is achieved through several innovative improvements.
  • The new GX series now employs a digital CDI ignition system to dramatically improve ignition timing.
  • The compression ratio has been increased
  • Combustion air flow has been enhanced through a more efficient air cleaner design that reduces air flow restriction.
Less Noise
Youll enjoy noise reduction levels ranging from 2.5 to 8db thanks to Hondas re-designed air cleaner and muffler. Vibration levels have also been reduced through the use of an all new, light weight piston.
Less Fuel
Fuel consumption has been reduced by 10% through dramatically improved combustion efficiency. The new GX series offers:
  • Improved ignition timing
  • Smaller inlet port and
  • Increased compression ratio.
This means longer runs times and lower fuel costs for Honda owners.
Same Footprint
OEMs can pass along new improvements and features without having to worry about costly and time consuming product modifications. New GX Series models have the exact footprint and fit into the same envelope as their similarly sized predecessors.
EPA Phase 3 Ready!
Once again, Honda leads the way in offering power solutions that meet EPA Phase 3 emission regulations well ahead of schedule.
Even more importantly, Honda GX engines meet these regulations without the need for a catalyst.
